100A Compact Automatic Transfer Switch Kit

The 100A Compact Automatic Transfer Switch (ATS) Kit provides automatic mains-to-generator changeover for compatible single-phase standby generator installations. Designed to monitor the incoming mains supply, the system can initiate generator starting and transfer the electrical supply when a mains failure is detected. When mains electricity is restored, the system transfers the supply back to the mains.

This 100A kit includes the compact ATS unit (model 1361122), a 20-metre ATS cable for compatible 3000rpm generators, and an ATS module. Its compact, wall-mountable enclosure makes it a practical option for installations where space is limited. The kit brings together the main changeover and control components required for a compatible automatic generator transfer arrangement, subject to the electrical and control requirements of the installation.

Supported SolarBoss single-phase generator models are the Hyundai DHY6000SE and Hyundai DHY8000SELR. Although the DHY8000SELR-T is also referenced in compatibility information, it has three-phase capability, which conflicts with this kit's single-phase specification. Compatibility with the DHY8000SELR-T must therefore be confirmed before ordering and should not be assumed. A qualified electrician must verify the generator's exact electrical and control interfaces, assess the installation requirements, and carry out the installation. This is not a plug-and-play connection to a property's electrical system.

What's Included

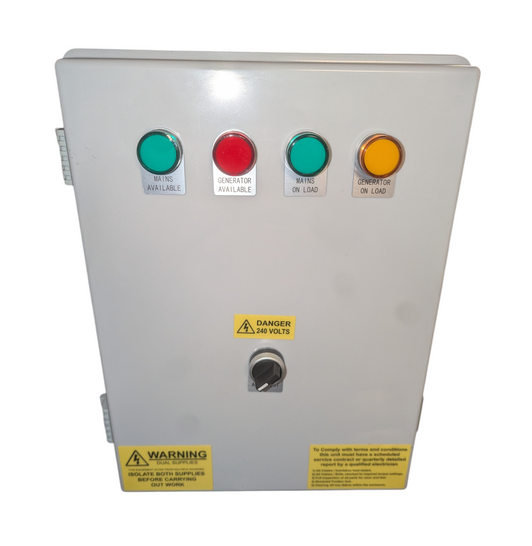

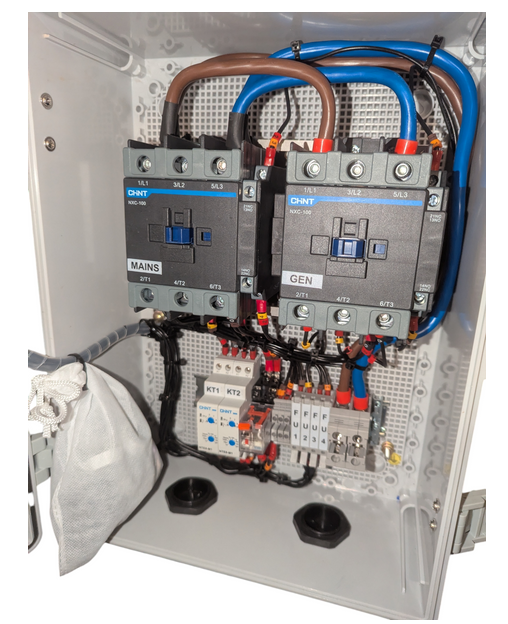

• 100A compact automatic transfer switch, model 1361122

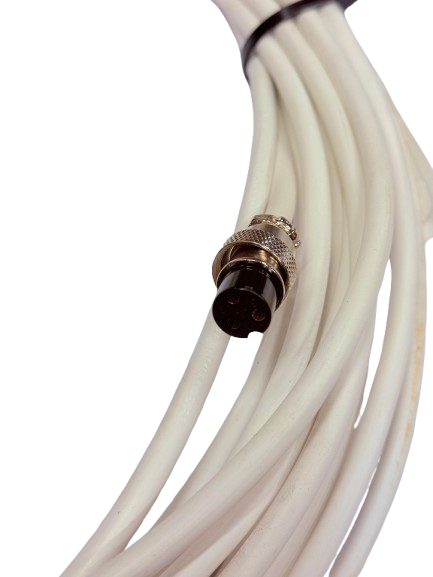

• 20-metre ATS cable for compatible 3000rpm generators

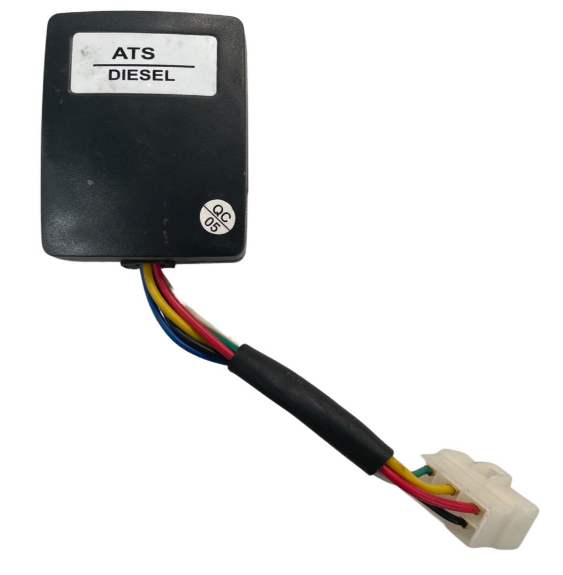

• ATS control module

Key Features

• 100A automatic mains/generator changeover
• Designed for compatible single-phase standby generator systems
• Monitors mains supply failure and initiates compatible generator start and electrical transfer
• Transfers the supply back to mains following restoration

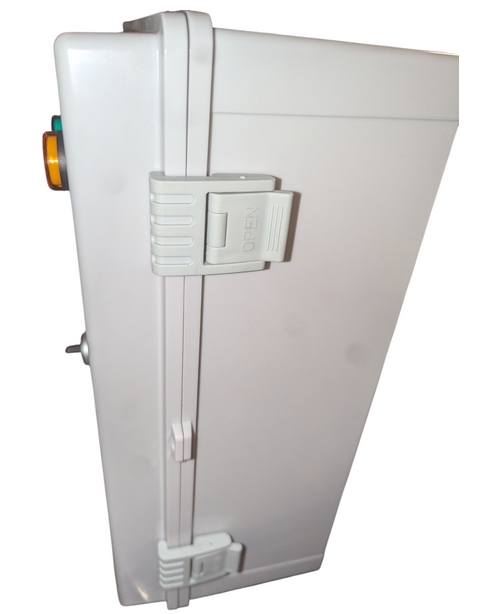

• Compact, wall-mountable enclosure
• 20-metre ATS cable included
• Supported SolarBoss models: Hyundai DHY6000SE and DHY8000SELR
• Professional electrical compatibility assessment and installation required
