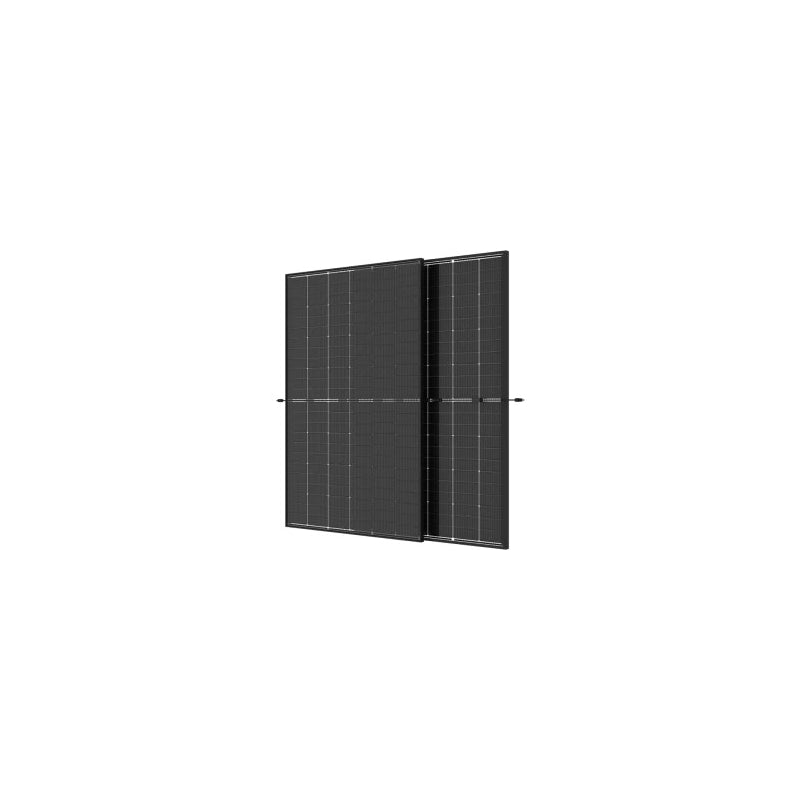

Trinasolar 505W Vertex S+ Dual Glass N-type i-TOPCon Solar Module - Black Frame Transparent BiFacial - PALLET OF 36

Overview

Trinasolar 505W Vertex S+ dual-glass module combines 22.7 % N-type i-TOPCon efficiency, bifacial gain, –0.29 %/°C temp coefficient and 30-year power warranty in a black-framed 23.5 kg panel—premium, high-density solution for commercial and upscale residential PV rooftops.

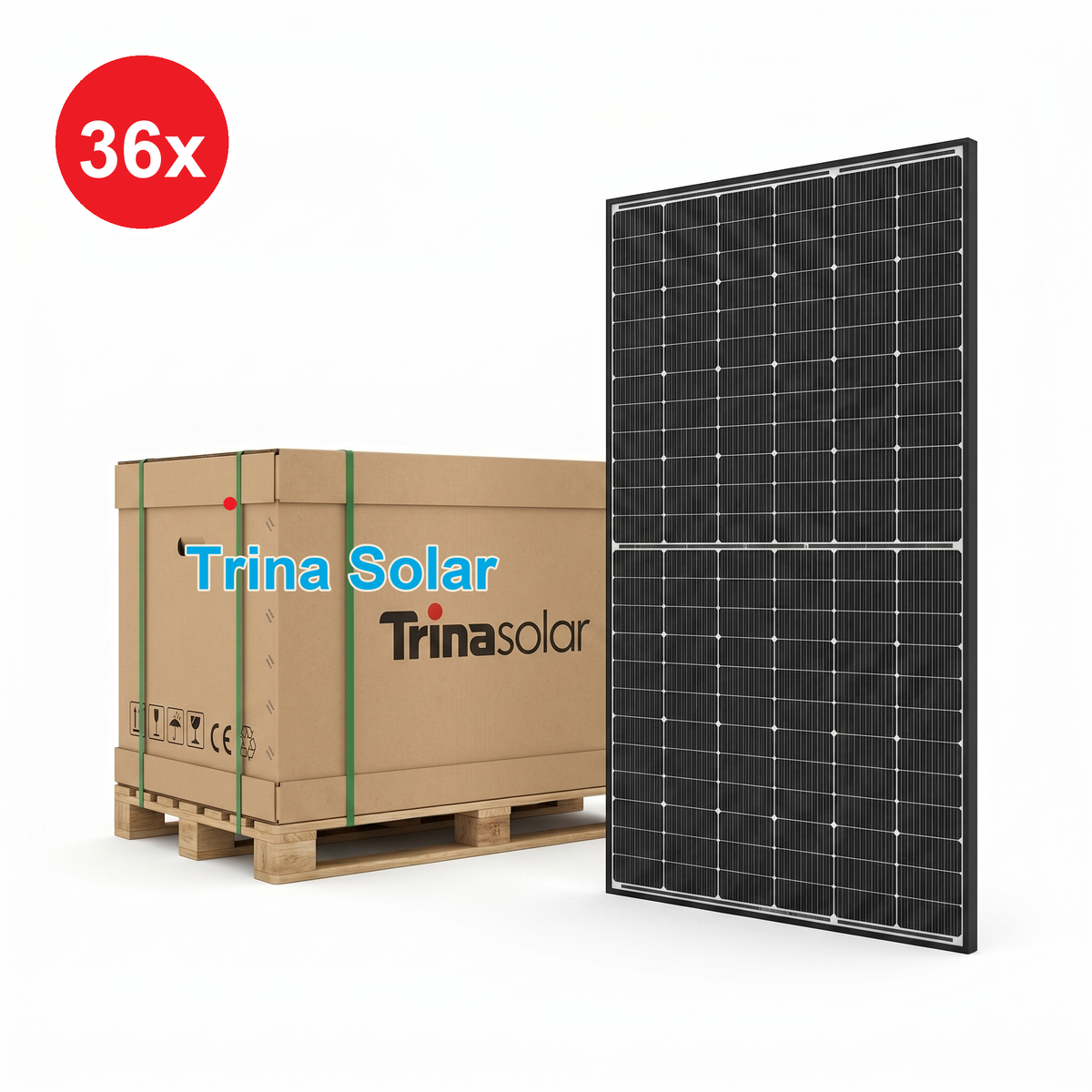

This pallet listing includes 36 panels on one full pallet.

Description

Full pallet option containing 36 panels.
This listing is intended for installers and larger-volume projects that need the pallet quantity supplied together.

The Trinasolar 505W Vertex S+ Dual Glass N-type i-TOPCon Solar Module – Black Frame Transparent BiFacial brings utility-class power and 30-year bankability to commercial and premium-residential rooftops. Built on Trina’s 210 mm Vertex platform, this 108 half-cut module delivers a nameplate 505 W and an impressive 22.7 % module efficiency, all within a slim 1961 × 1134 × 30 mm chassis. The bifacial, dual-glass laminate turns reflected light into up to 80 % rear-side gain, boosting energy yield without extra string hardware.
Why installers specify Vertex S+ 505 W
N-type i-TOPCon cells
Virtually zero LID, < 1 % first-year degradation and 0.4 % annual loss, ensuring 87.4 % output after 30 years.
Dual-glass robustness
1.6 mm heat-strengthened glass front and back resists micro-cracks, moisture ingress and ammonia or salt mist. Fire-class rating improves rooftop safety.
High mechanical load rating
Certified for 5 400 Pa snow / 2 400 Pa wind, suitable for exposed coastal or alpine installs.
Lower operating losses
Temperature coefficient of –0.29 % / °C maintains production in summer heat.
Installer & EPC benefits
Higher kWp per string – 505 W rating reduces module count, rail length and optimiser quantity for every project.
Size & weight optimised – 23.5 kg and 30 mm profile meet single-installer handling guidelines and fit mainstream roof hooks and clamps.
Compatibility assured – low-voltage design aligns with most 1 000 V residential and 1 500 V C&I inverters, simplifying BOM.
Sustainability edge – N-type technology lowers carbon footprint and enhances ESG scores for tenders and green-building schemes.
Application highlights
Design-constrained rooftops seeking > 200 W/m² array density.
Carports and agrivoltaic structures benefiting from bifacial rear-side harvest.
Sites with stringent fire-safety codes or aggressive coastal environments.
Equip your next project with the Trinasolar 505W Vertex S+ Dual Glass N-type i-TOPCon Solar Module – Black Frame Transparent BiFacial and deliver more kilowatt-hours, longer warranties and a refined visual finish—all in a module that installs as fast as it pays back.

Features

• Manufacturer
• Trina Solar
• Pallet Quantity: 36 panels
• Base Panel SKU: TSM-505NEG18RC.27
