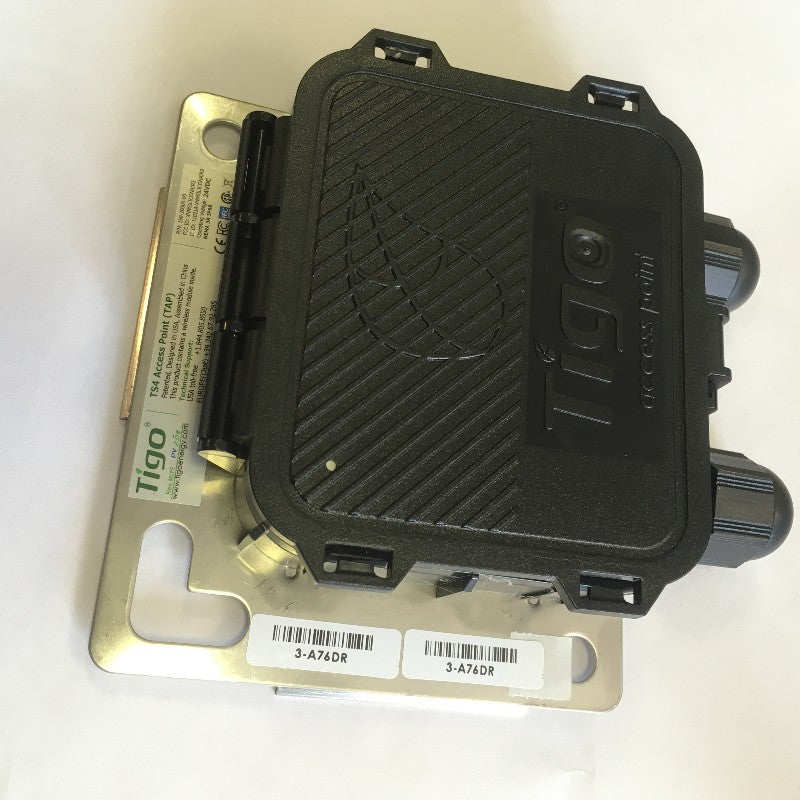

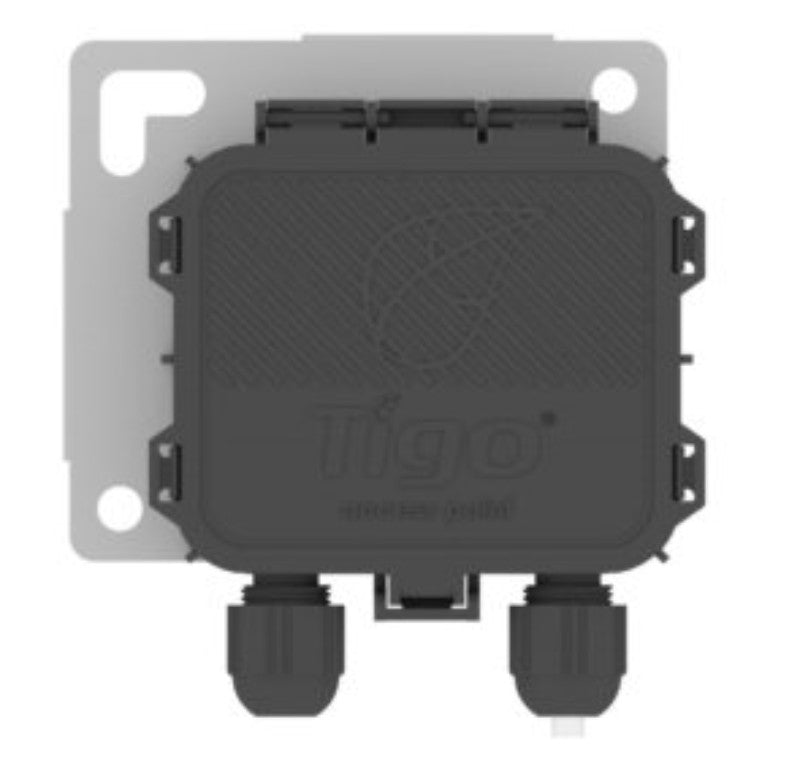

Tigo Access Point TAP

Description

Additional Tigo Access Point (TAP) wireless communication device for monitoring and safety features.

Features

Mesh configuration

• 300 TS4 units per TAP
• 900 TS4 units per CCA
• 7 TAPs per CCA
• 33ft (10m) max between TAP and closest TS4 unit
• 115ft (35m) max between TAP and farthest TS4 unit using mesh

When installing the Tigo TAP, some important things to pay attention to are

• the colours must respect the inputs on both the CCA and the TAP
• the output of the TAP must be left with the resistor
• the TAP must be positioned under the panel, central to the system
• Tigo also have a document outlining the communication cable types and installation here.
