Description
Overview
The 1-phase meter helps to optimize your consumption
Description

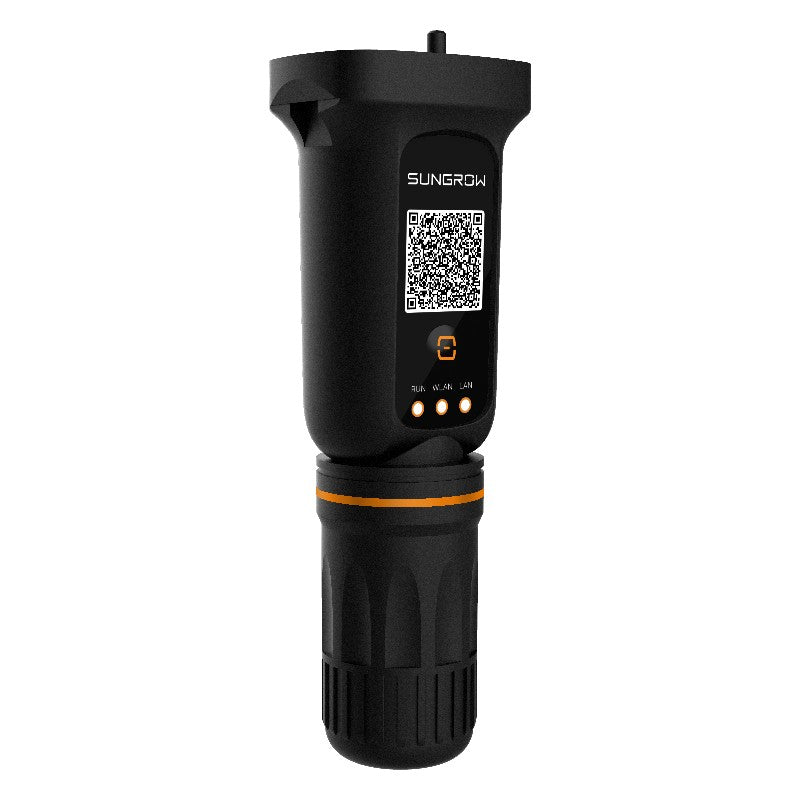

The Sungrow WiNet-S is a LAN communication module, which provides a connection between one Sungrow inverter and the internet.
Smart and Flexible: WLAN or Ethernet, flexible compatibility of plant networking, one click access to iSolarCloud. Automatic network configuration with DHCP transmission without configuration and free WLAN configuration.
Simple and Efficient: Plug and play, quick installation, data interval in seconds, support for smart IV curve diagnosis and support of local and remote parameter setting and firmware updates.
Safe and Reliable: Password and encrypted transmission for data protection, IP66 protection, wide temperature range.
Please note: One WiNet-S is included with the Sungrow hybrid inverters but a WiNet-S is not with the sungrow string inverters.
10 year warranty as standard.
Product NameWiNet-S
Max No. Devices1
DC Input5 VDC, 2.1A
Power Consumption<= 5W
Protection Class
IP66
Dimensions44*132*36mm
