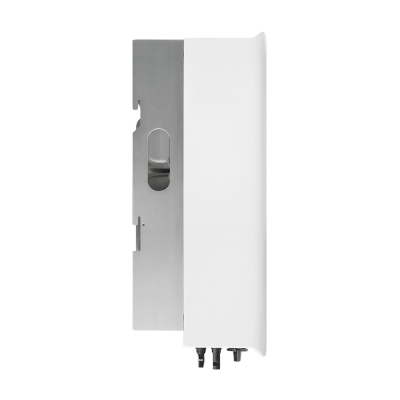

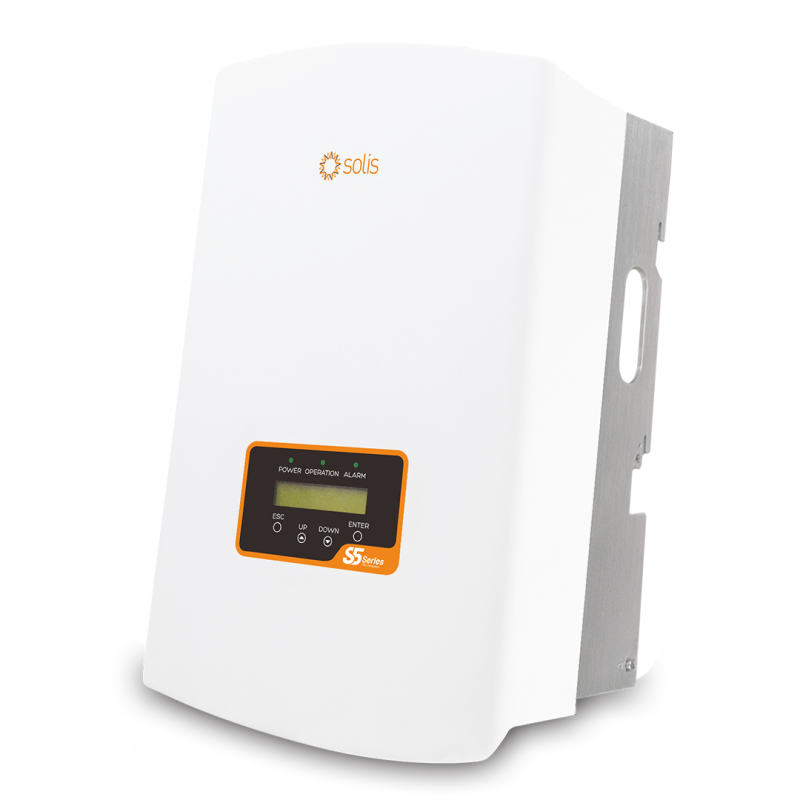

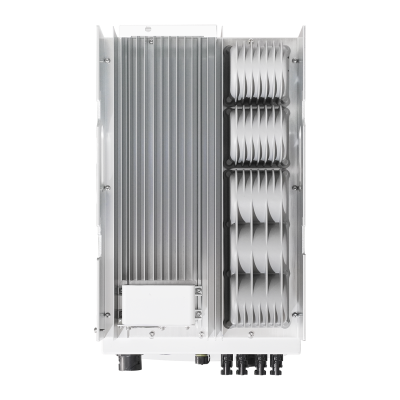

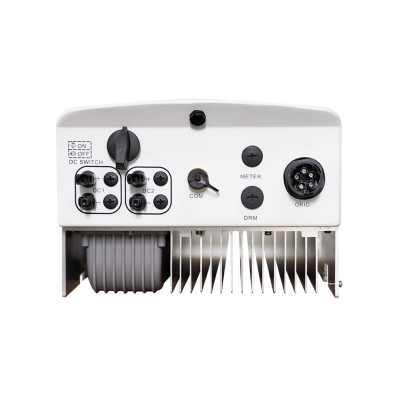

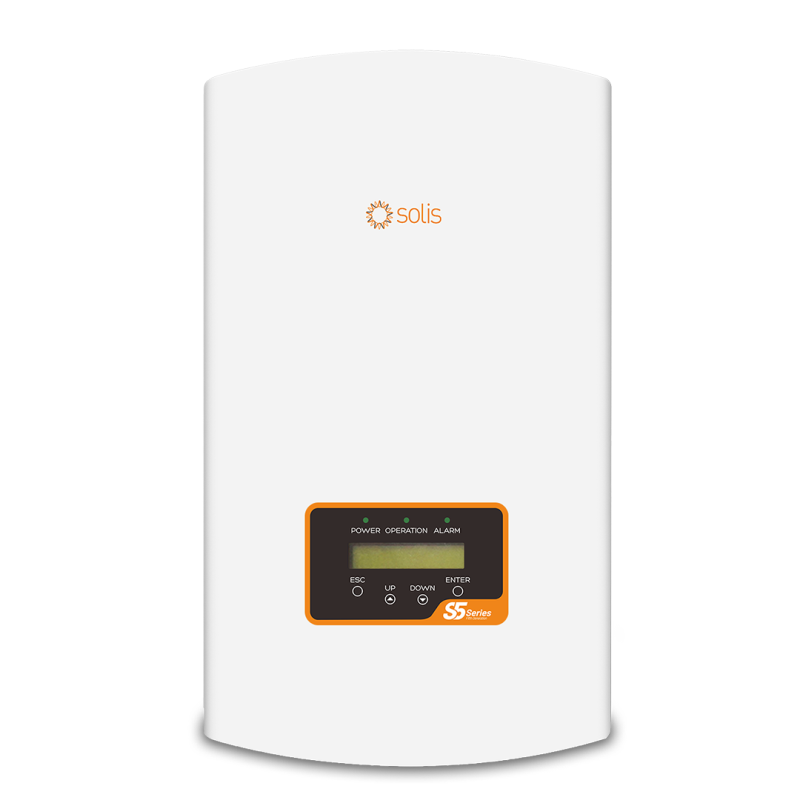

Solis 5G 10.0kW Solar Inverter - 3 Phase with DC

The Solis 5G 10.0kW Solar Inverter - 3 Phase with DC is designed for superior performance. With dual MPPT tracking, advanced communication capabilities and adaptive peak power, it provides up to 98.8% efficiency and high power output for residential and commercial solar energy systems. It's smart energy management system also ensures reliability and safety.

S5-GR3P(3-20)K three phase series string inverter are reliable preferred equipment for residential, small industrial and commercial pv power stations. Smaller size, higher efficiency, a variety of power models Available for selection. Adopt two MPPT access, more flexible and efficient.

• Max. efficiency 98.7%
• String current up to 16A
• Wide voltage range and low startup voltage
• AFCI protection, proactively reduces fire risk
• Supports export power control
• Supports RS485, WiFi, GPRS
• Scan to register on SolisCloud, supports remote upgrade and control
• Automatic voltage stabilization technology in weak gridconditions
• Compact design, simple installation and maintenance
• Supports high power modules for lower installation costs
• > 150% DC/AC ratio
• IP66

Specification

• Manufacturer: Solis
• Phases: 3 Phase
• Power Rating kW: 10
• Inverter Type: String Inverter
• Built in DC: Yes
• No. of MPPT: 2
• Built in Communication: Optional
• Commodity Code: 85044030
• Dimensions (mm) (H x W x D): 563 x 310 x 219
