Renusol 460196 Elongation Rails XL for ConSole

Description

With this Elongation Rail XL, PV modules with a hole gap width of up to approx. 1110mm can be used with the mouting rails of the Renusol ConSole units.

R460196

Features

Key Features

• Distance of the mounting holes (panel width): 1016 to 1110 mm
• Material: Aluminum and Stainless Steel

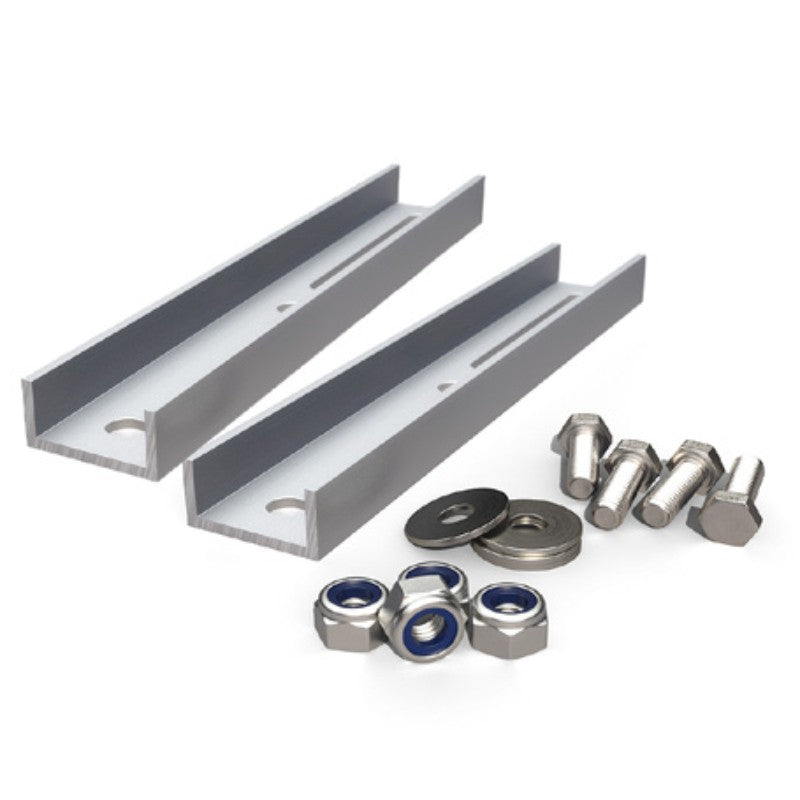

Contents

• 2 x Elongation rail;
• 4 x Hexag. screw DIN933-M6x20 A2-70;
• 4 x Washer DIN9021-6,4-A2;
• 4 x Self-locking hexag. nut DIN985-M6-A2

Downloads

• Installation Guide
• Dimensions Diagram
