Description

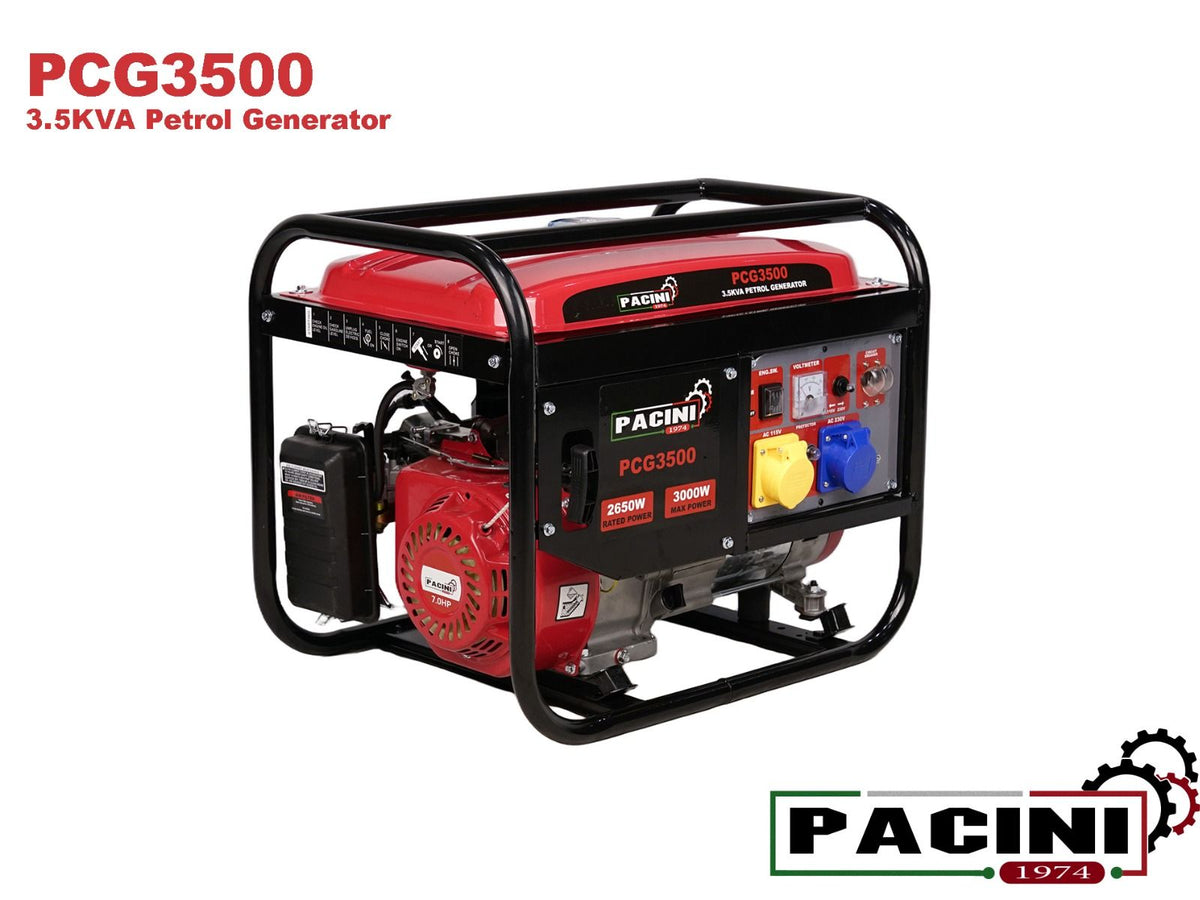

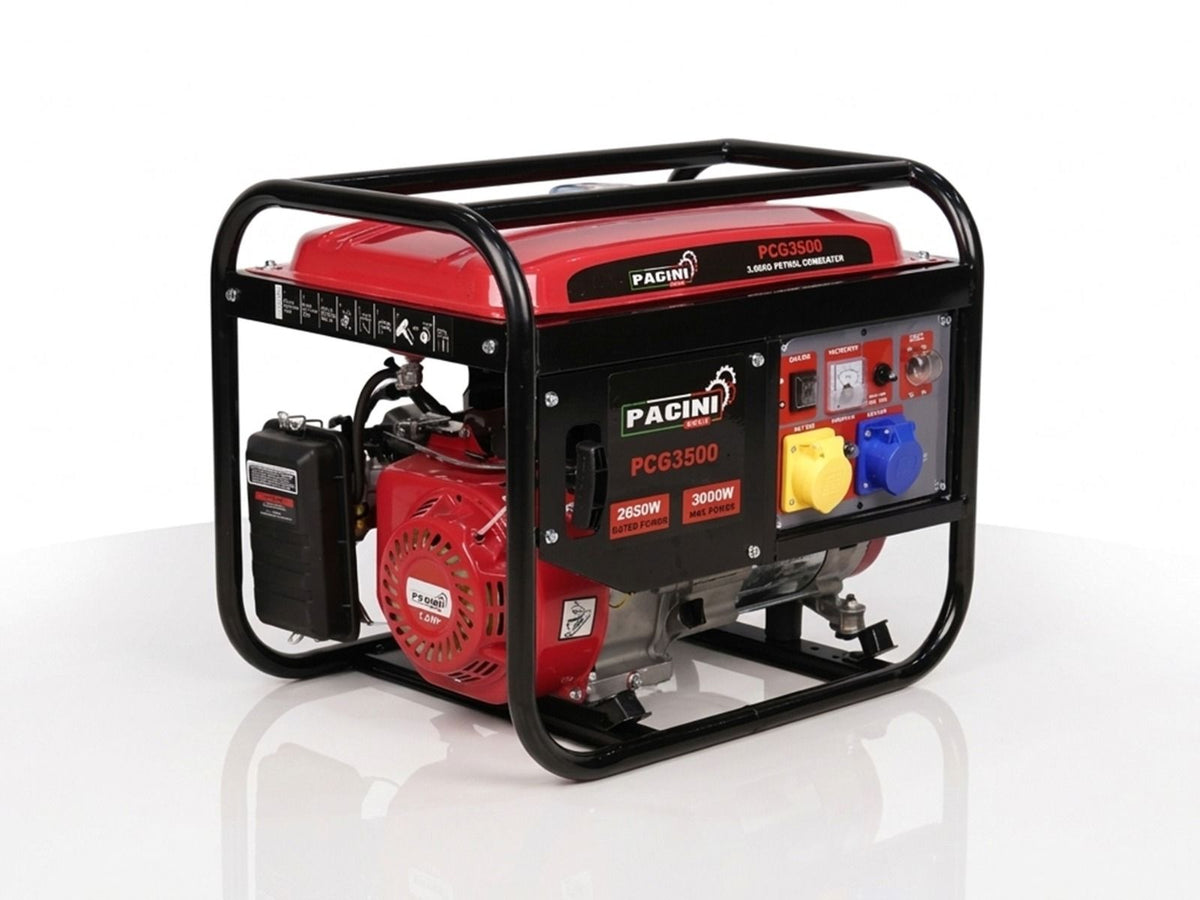

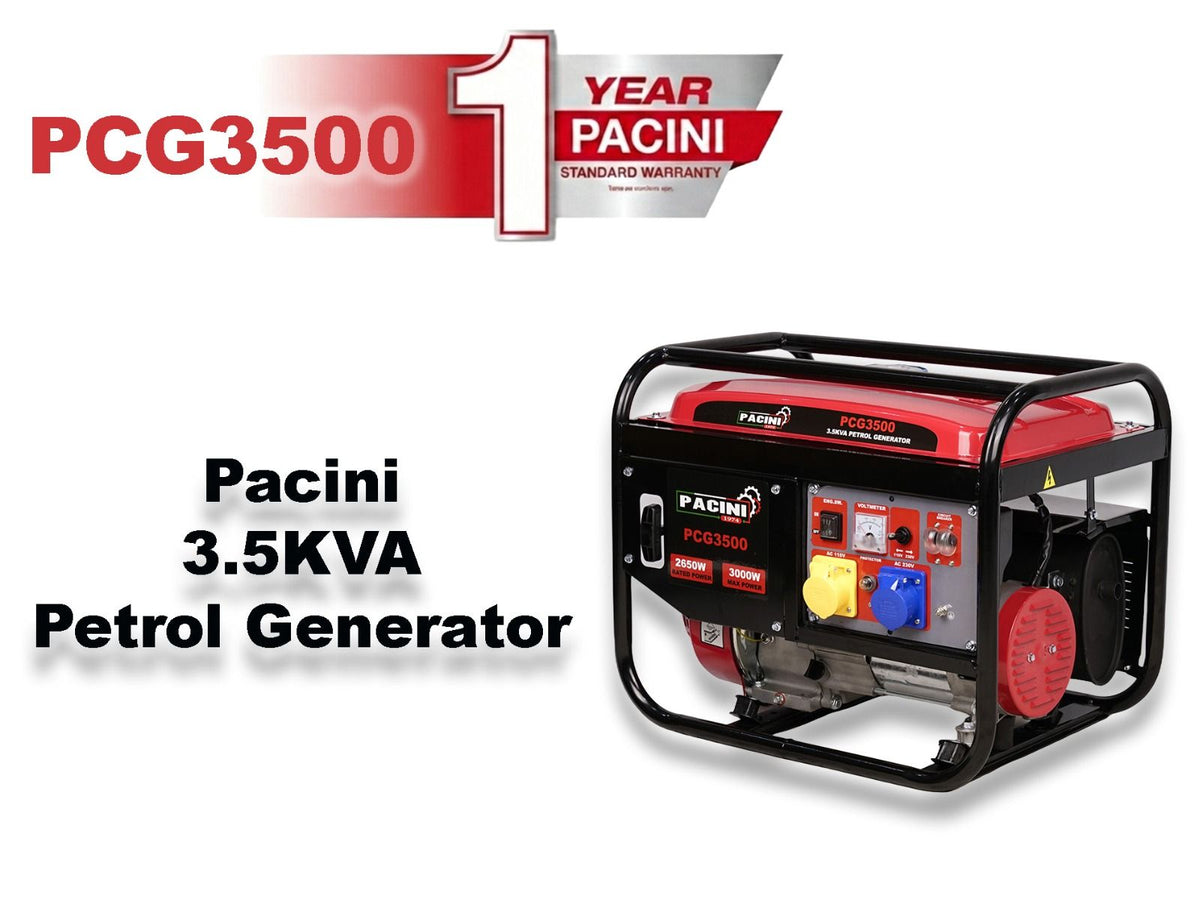

The Pacini PCG3500 is an open-frame petrol generator for temporary electricity on outdoor jobs and at locations without a mains supply. Its 2,650W running rating is the figure to use when planning steady loads; 3,000W is the maximum stated output, not its continuous allowance.

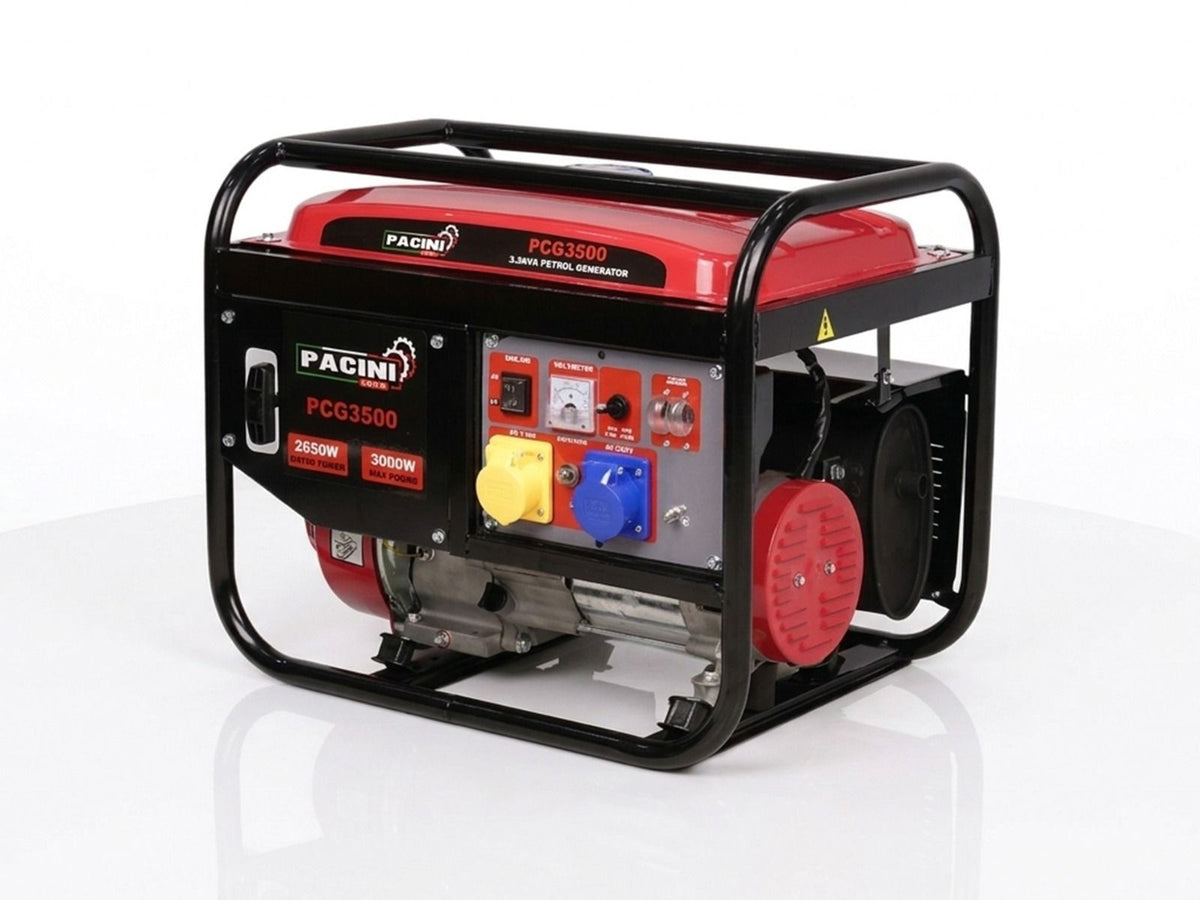

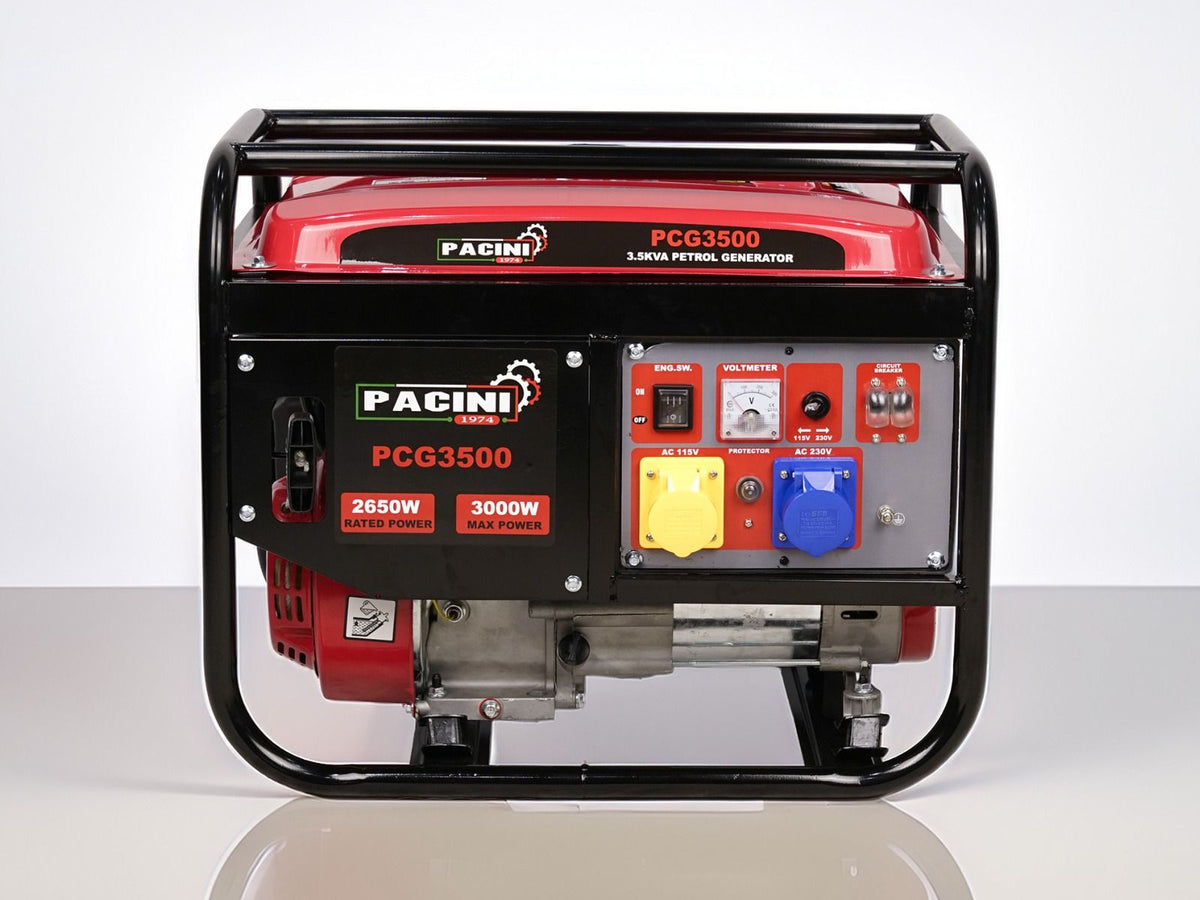

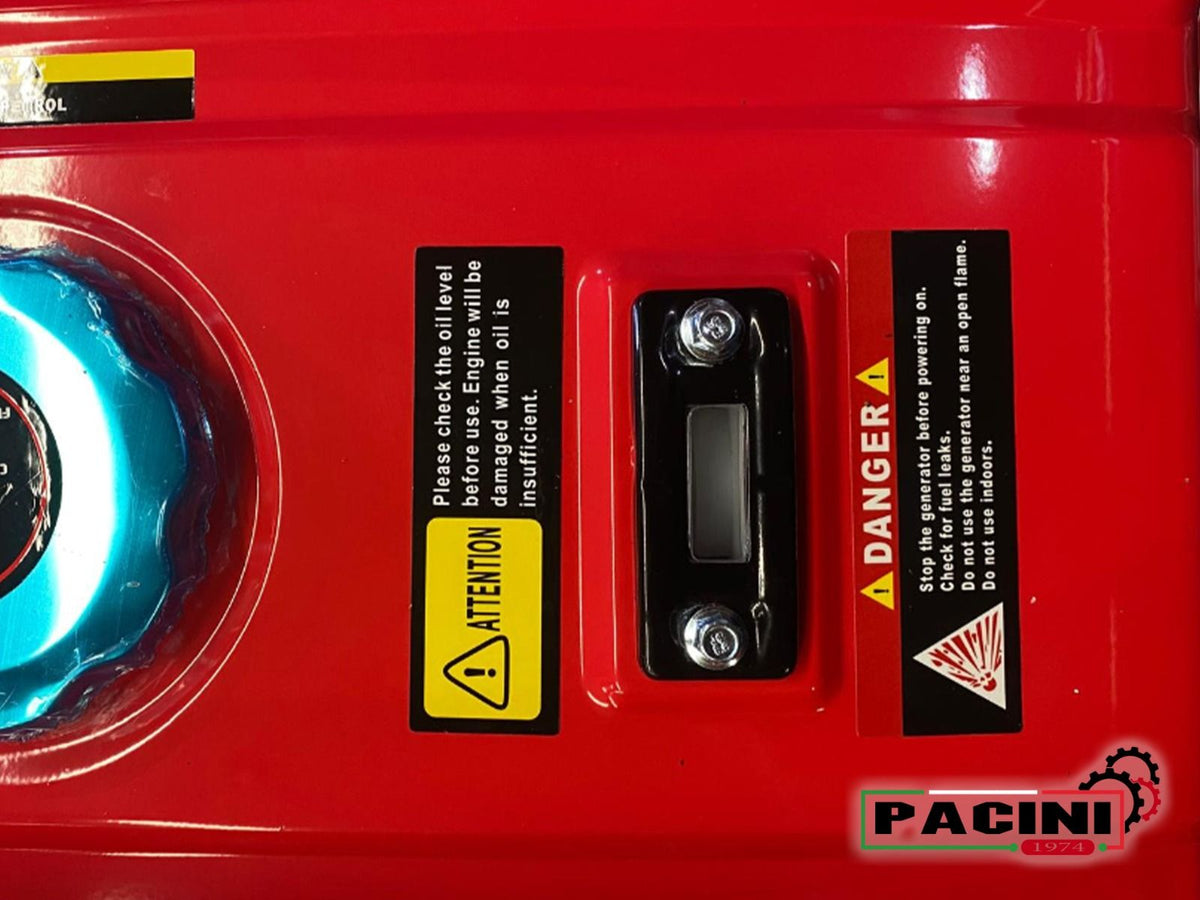

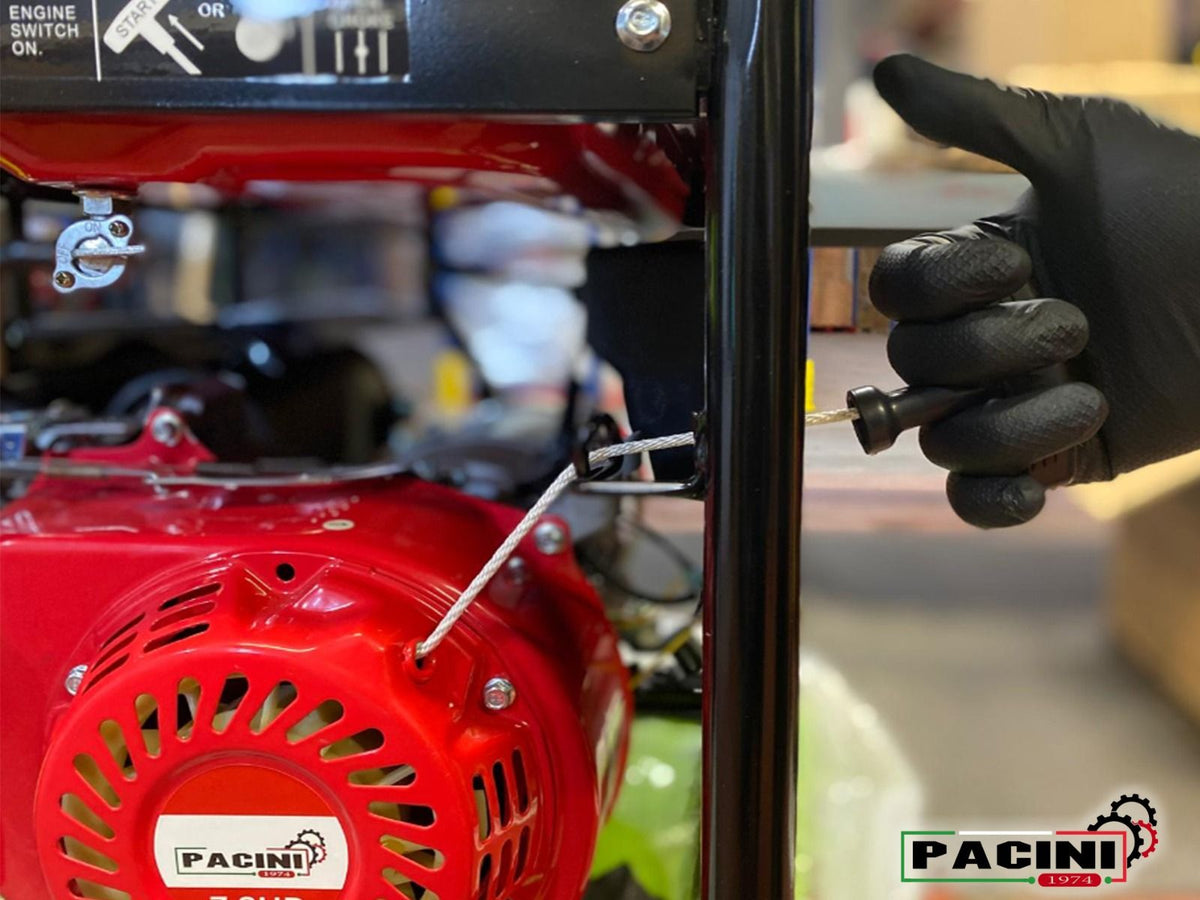

Separate 110V and 240V outlets make it useful for compatible site tools and other equipment. The four-stroke engine uses recoil starting, while the automatic voltage regulator (AVR), overload protection and low-oil shutdown provide practical controls for day-to-day operation.

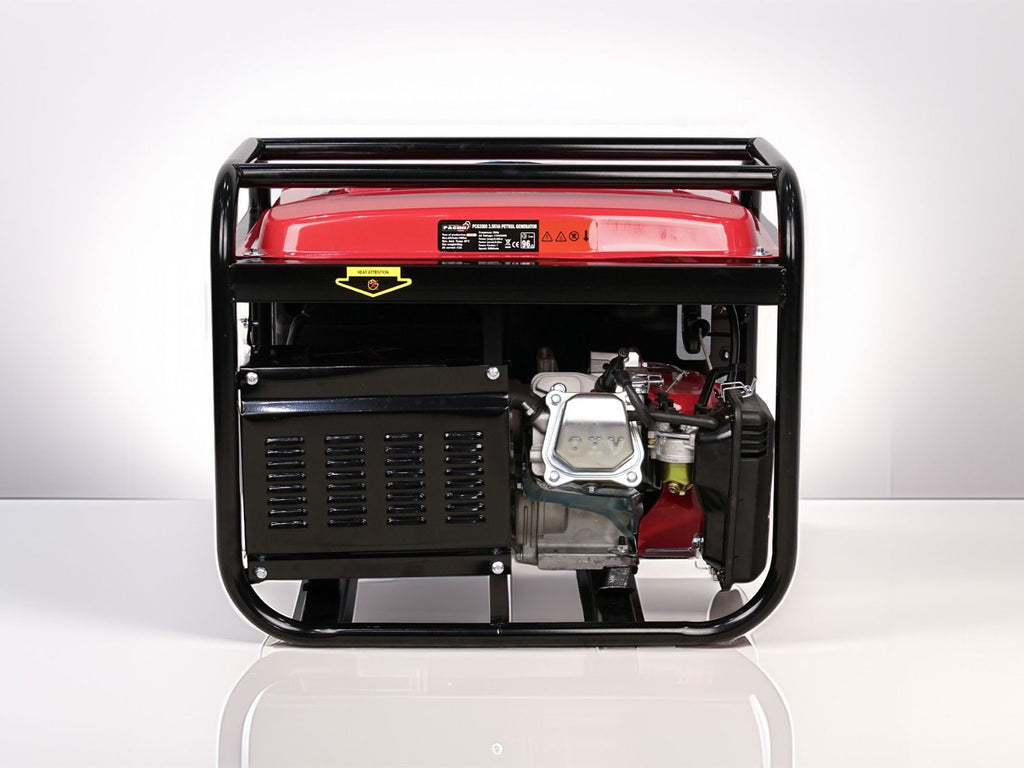

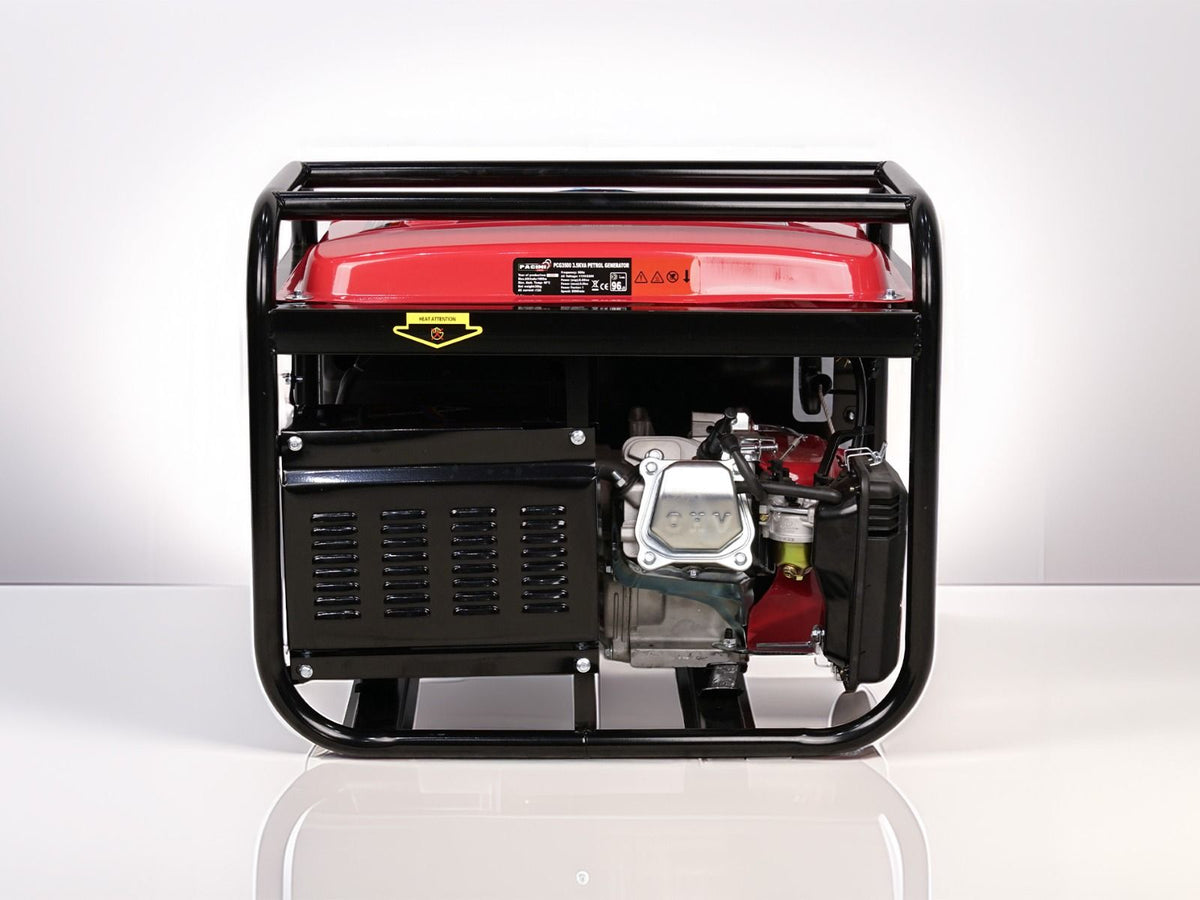

The 15-litre tank and protective steel frame are suited to moving between work areas. Confirm each tool’s running and starting demand before connecting it. Operate outdoors away from doors, windows and ventilation openings. Never backfeed a building; connection to premises needs a qualified electrician and suitable changeover equipment.
Key features
- 2,650W running and 3,000W maximum output

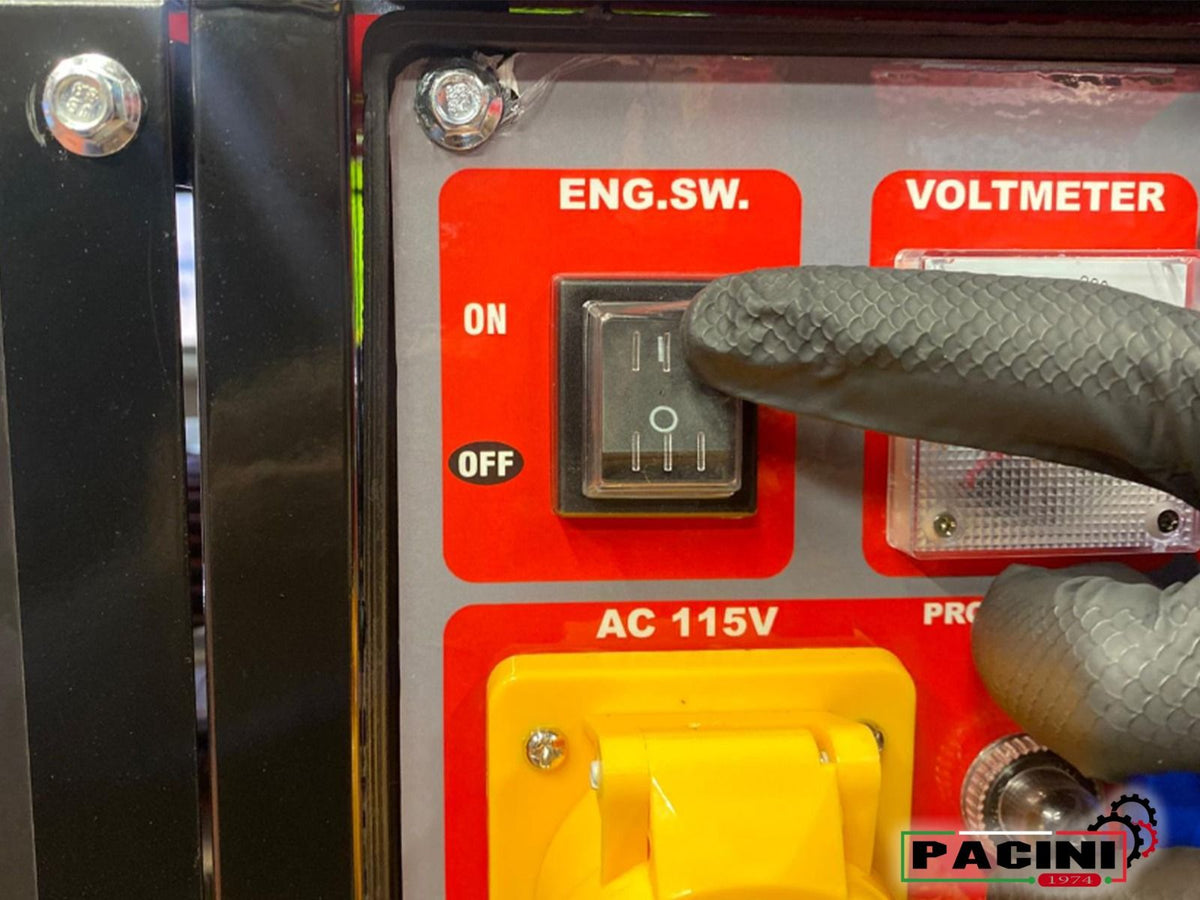

- 110V and 240V outlets
- AVR voltage regulation
- Recoil start; low-oil and overload protection
- 15L fuel tank and steel frame
Specifications
| SKU | PCG3500 |
|---|---|
| Fuel | Petrol |
| Running output | 2,650W |
| Maximum output | 3,000W |
| AC voltage | 110V / 240V |
| Phase | Single-phase |
| Frequency | 50Hz |

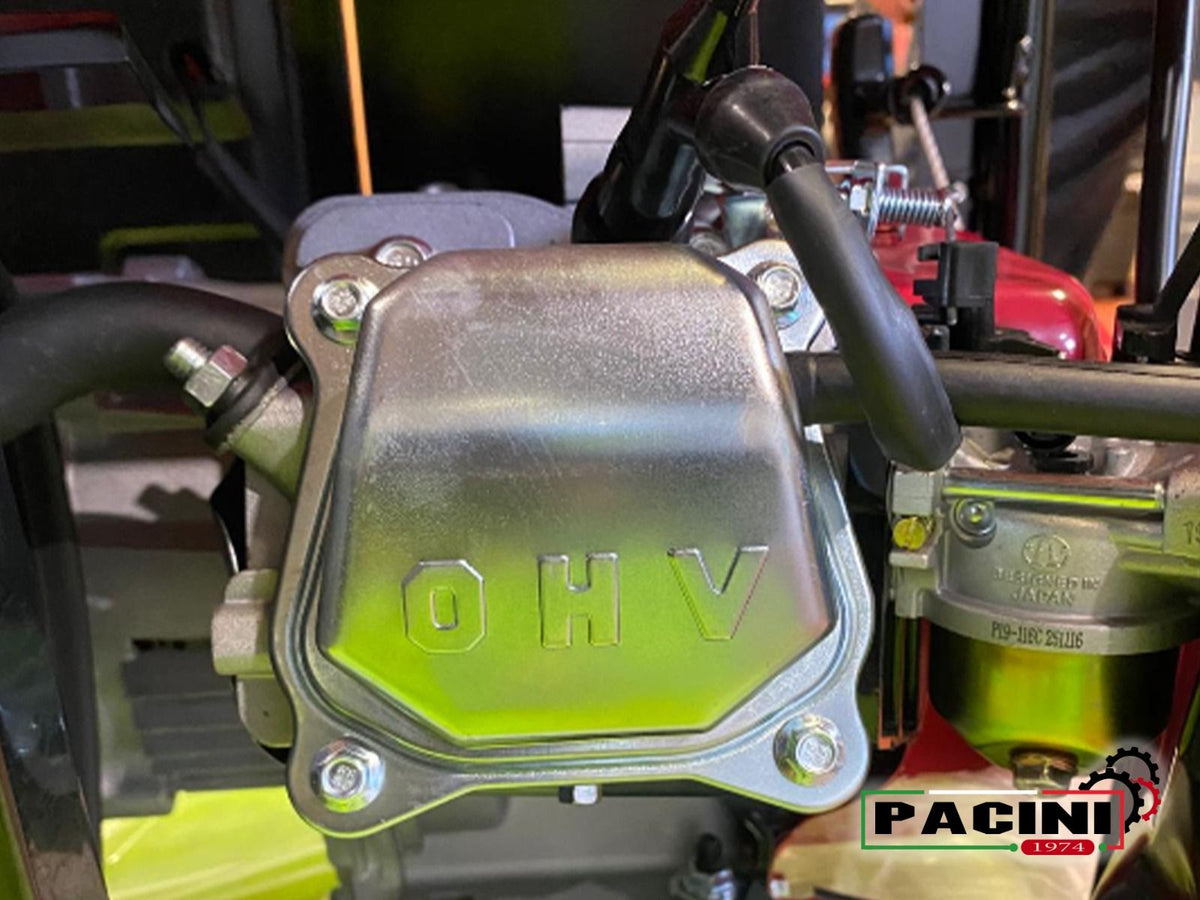

| Engine | Four-stroke |
| Starting | Recoil |

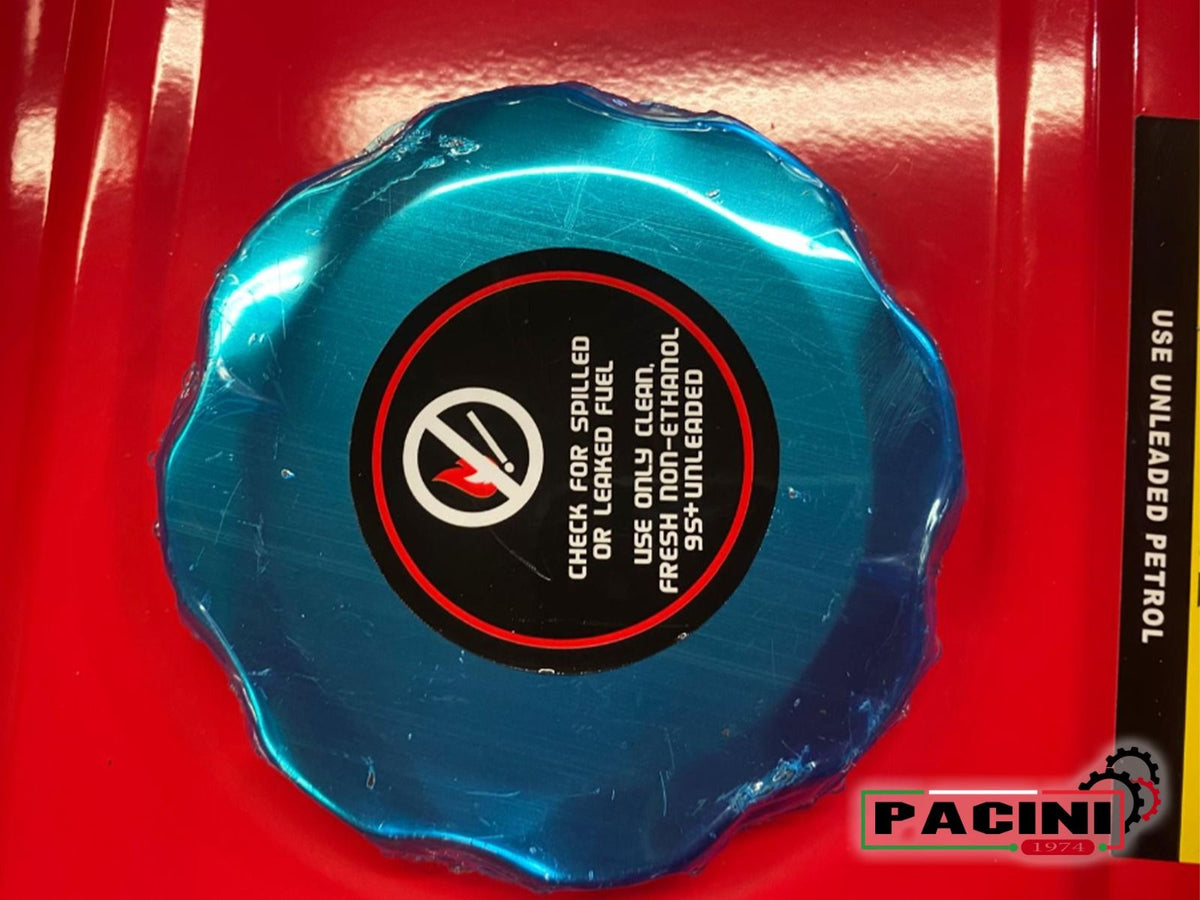

| Fuel tank | 15L |

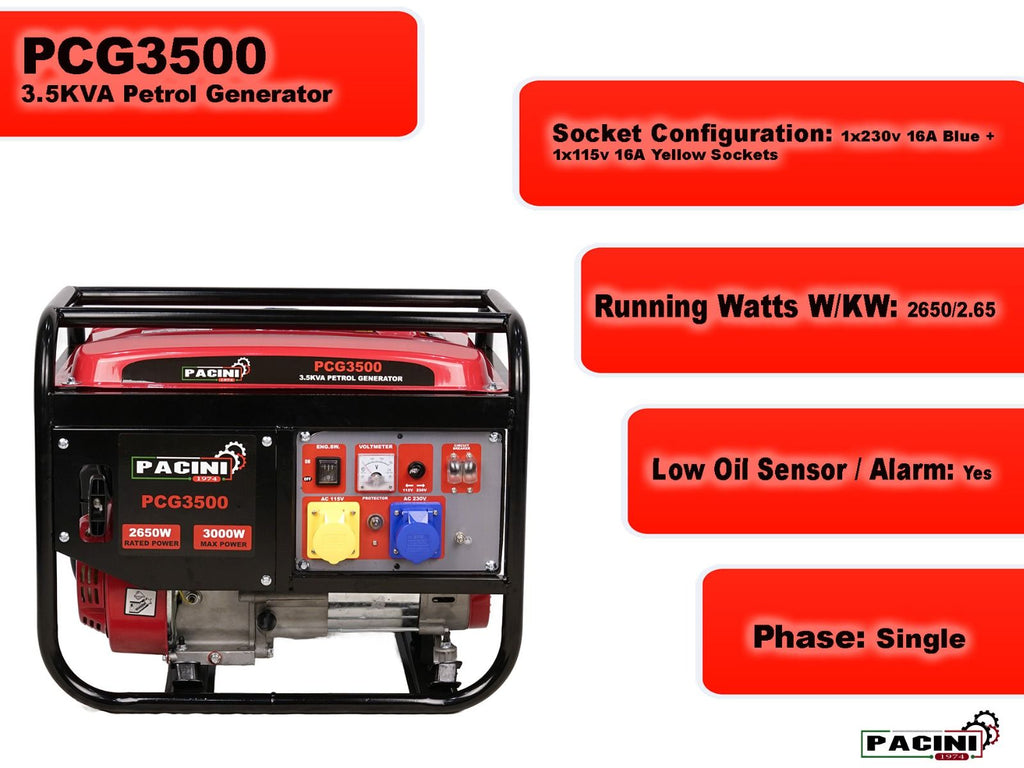

| Sockets | 1 × 240V 16A; 1 × 110V 16A |
| Dimensions | 605 × 465 × 500mm |
| Weight | 38kg |
