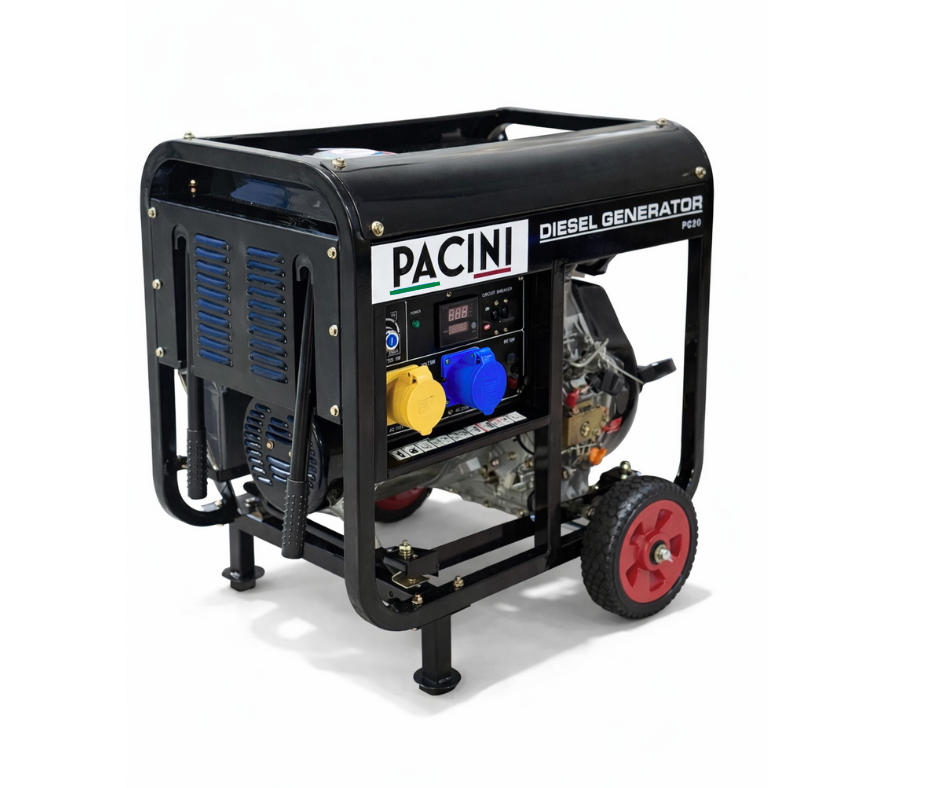

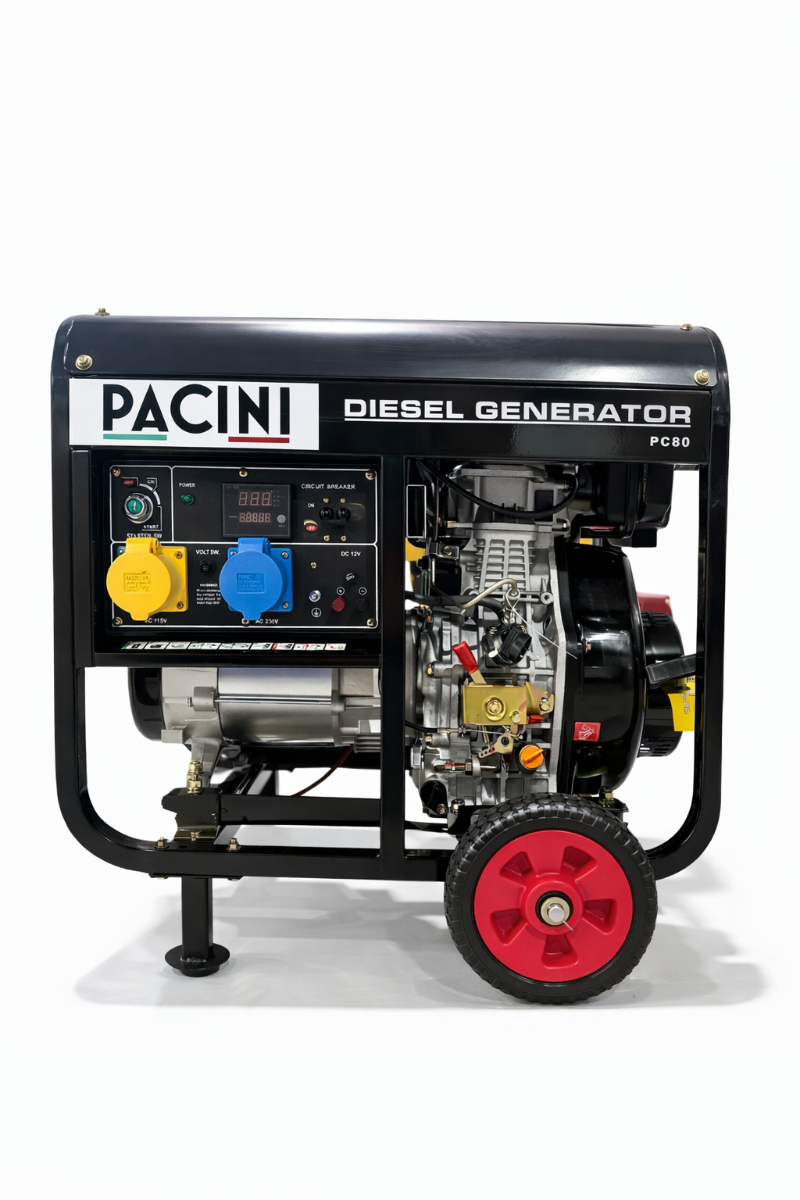

Pacini PC80 8kVA Diesel Site Generator, 230V

The Pacini PC80 is an open-frame diesel generator for outdoor work requiring a more substantial 230V supply. The supplied details state 6.5kW rated power and 7kW maximum, keeping the normal load limit distinct from the higher short-duration figure.

Its 406cc single-cylinder four-stroke diesel engine runs at 3,000rpm. Electric starting, AVR voltage regulation, low-oil shutdown and a wheeled frame are all listed, with a 15-litre diesel tank and auxiliary 12V DC output.

This model’s published weight and dimensional details conflict, so they have not been reproduced. Confirm the movement and clearance requirements before planning a site position. Operate outdoors away from doors, windows and ventilation openings. Never backfeed a building; connection to premises needs a qualified electrician and suitable changeover equipment.

Key features

• 6.5kW rated and 7kW maximum
• 230V AC at 50Hz
• 406cc single-cylinder diesel engine
• Electric start and AVR
• Wheeled frame
• 15L tank and 12V DC output
