Description

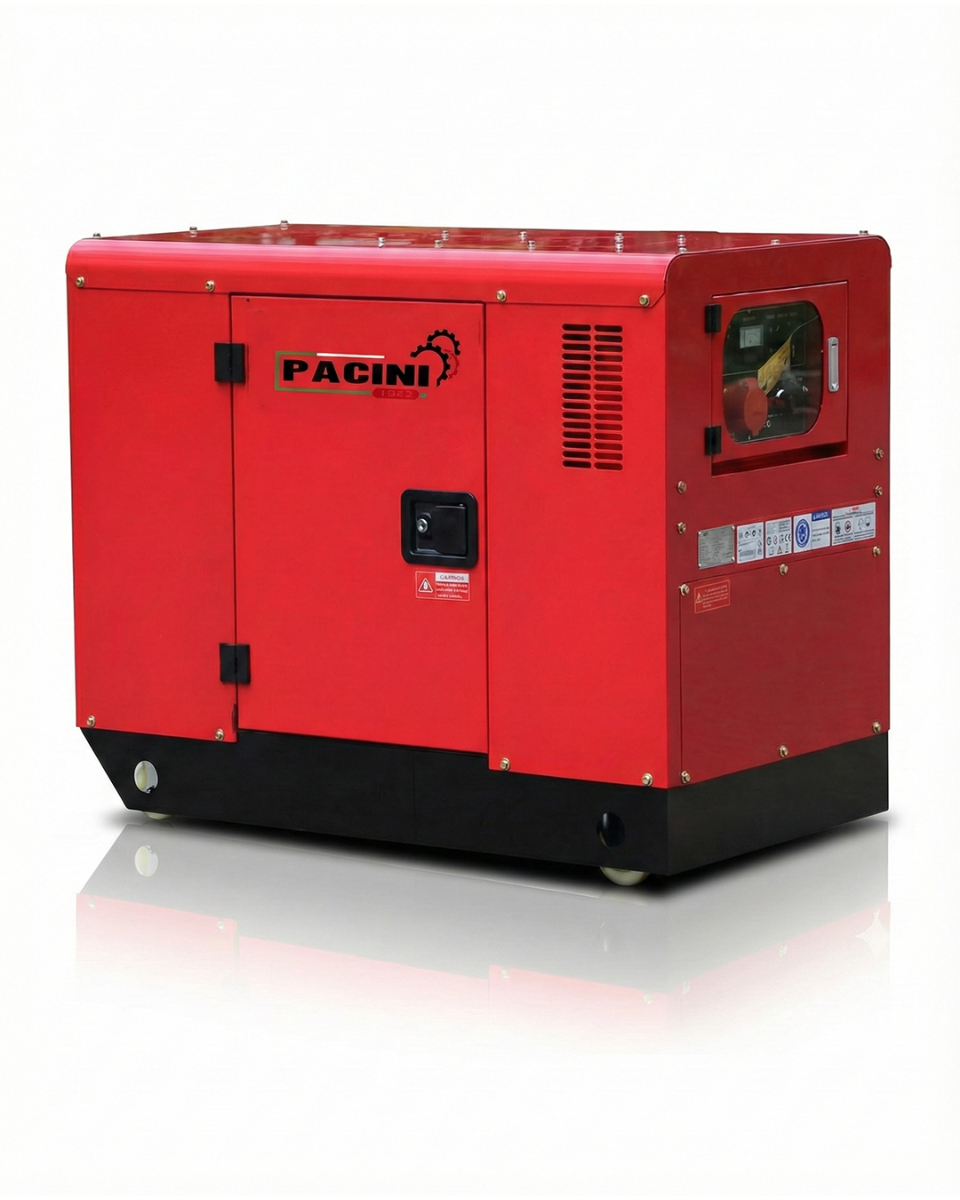

The Pacini LDG12S3 is a canopy-enclosed diesel generator for outdoor three-phase applications such as workshops and construction sites. It is specified as a 13.7kVA-class machine with 400V three-phase and 230V single-phase connections, which serve different load requirements.

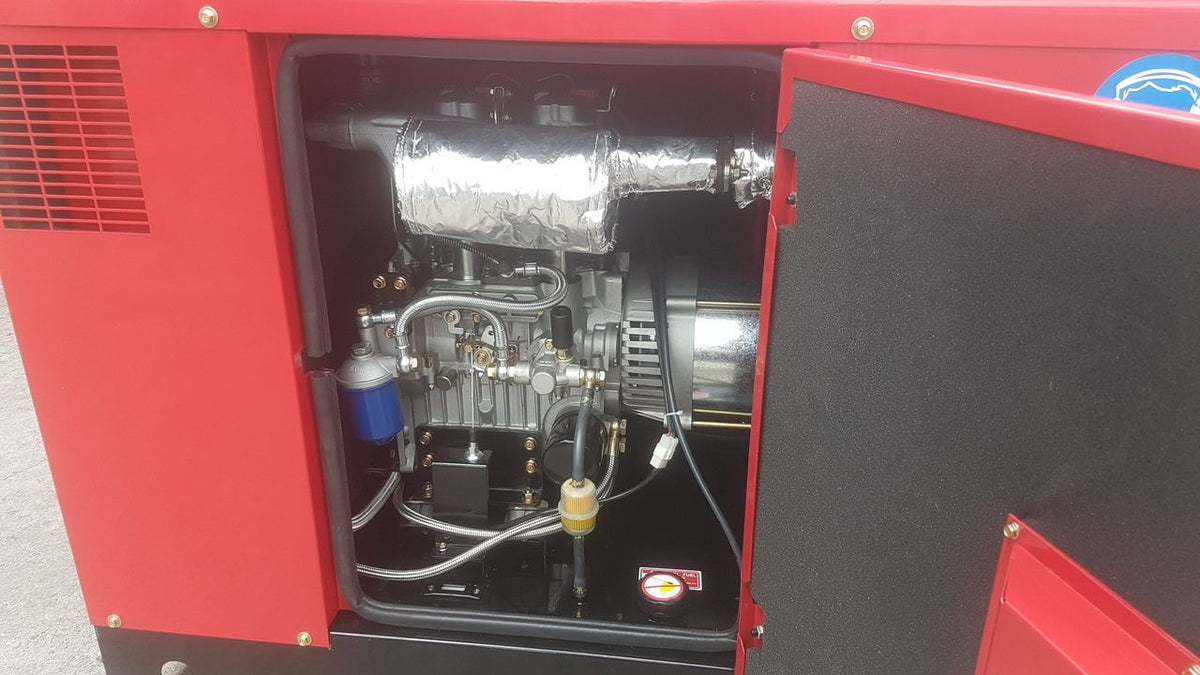

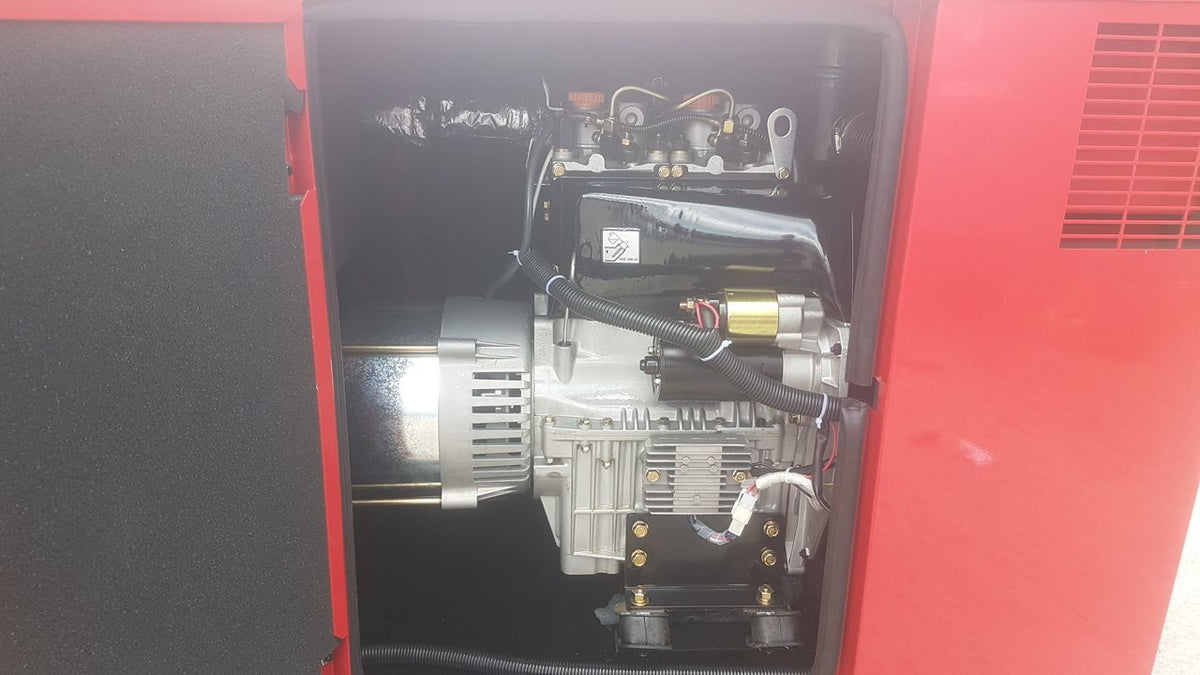

A 954cc twin-cylinder, air-cooled diesel engine runs at 3,000rpm and uses electric key starting. The 50-litre fuel tank is listed with up to 12 hours of operation, and an AVR alternator, hour meter, fuel gauge and low-oil cut-out are described.
The overall three-phase rating must not be assumed available through the single-phase outlet; the brief specifically warns that single-phase power is a fraction of the total. Check phase balance and per-socket availability with the installer. Operate outdoors away from doors, windows and ventilation openings. Never backfeed a building; connection to premises needs a qualified electrician and suitable changeover equipment.
Key features
- 13.7kVA three-phase diesel class
- 400V three-phase and 230V single-phase sockets
- 954cc twin-cylinder diesel engine
- Electric key start and AVR
- 50L fuel tank
- Canopy enclosure and low-oil cut-out
Specifications

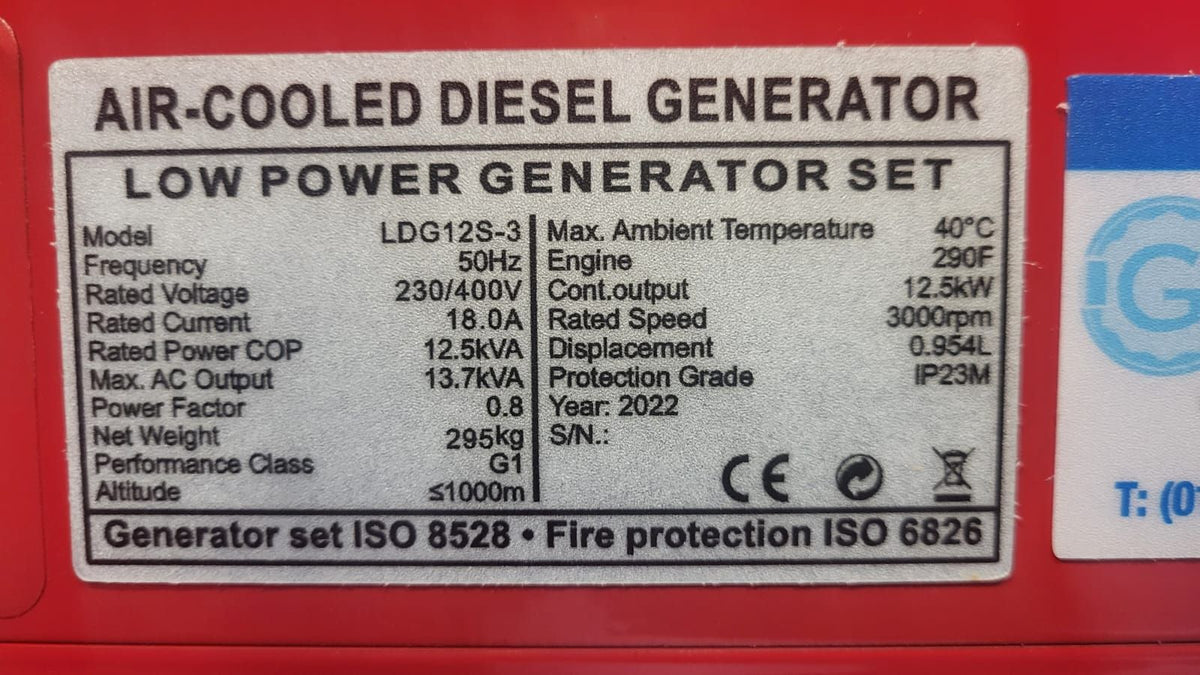

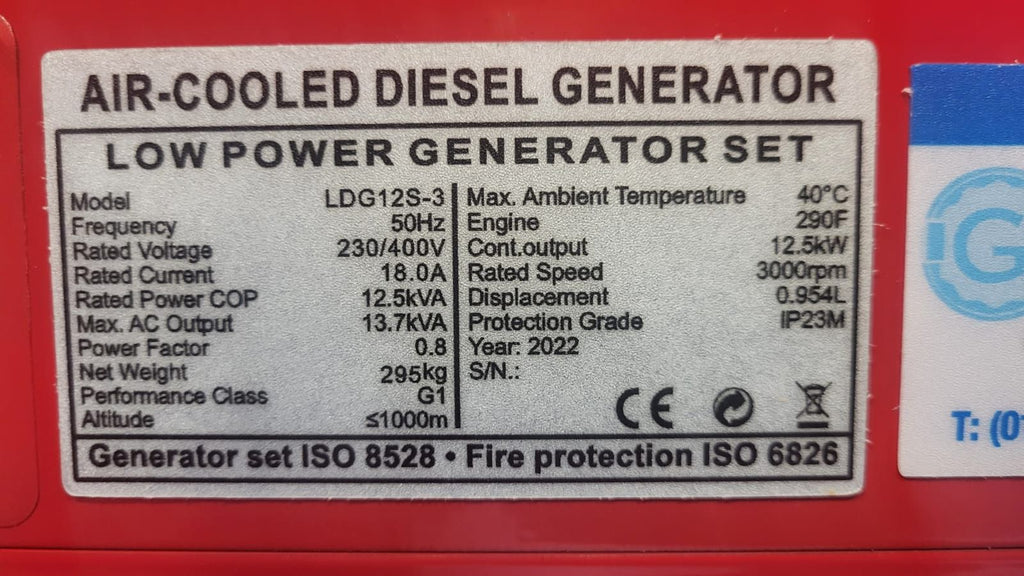

| SKU | LDG12S3 |
|---|---|
| Fuel | Diesel |
| Generator class | 13.7kVA |
| Voltages | 400V three-phase / 230V single-phase |
| Frequency | 50Hz |
| AC sockets | 400V 16A three-phase; 230V 32A single-phase |
| Engine | 954cc twin-cylinder, air-cooled |
| Engine speed | 3,000rpm |
| Starting | Electric key |
| Fuel tank | 50L |
| Stated runtime | Up to 12 hours; load not specified |
| Noise (stated) | 68dB(A) at 7m |
| Weight | 295kg |
| Dimensions | 1,160 × 650 × 890mm |
| Voltage regulation | AVR |
