Description

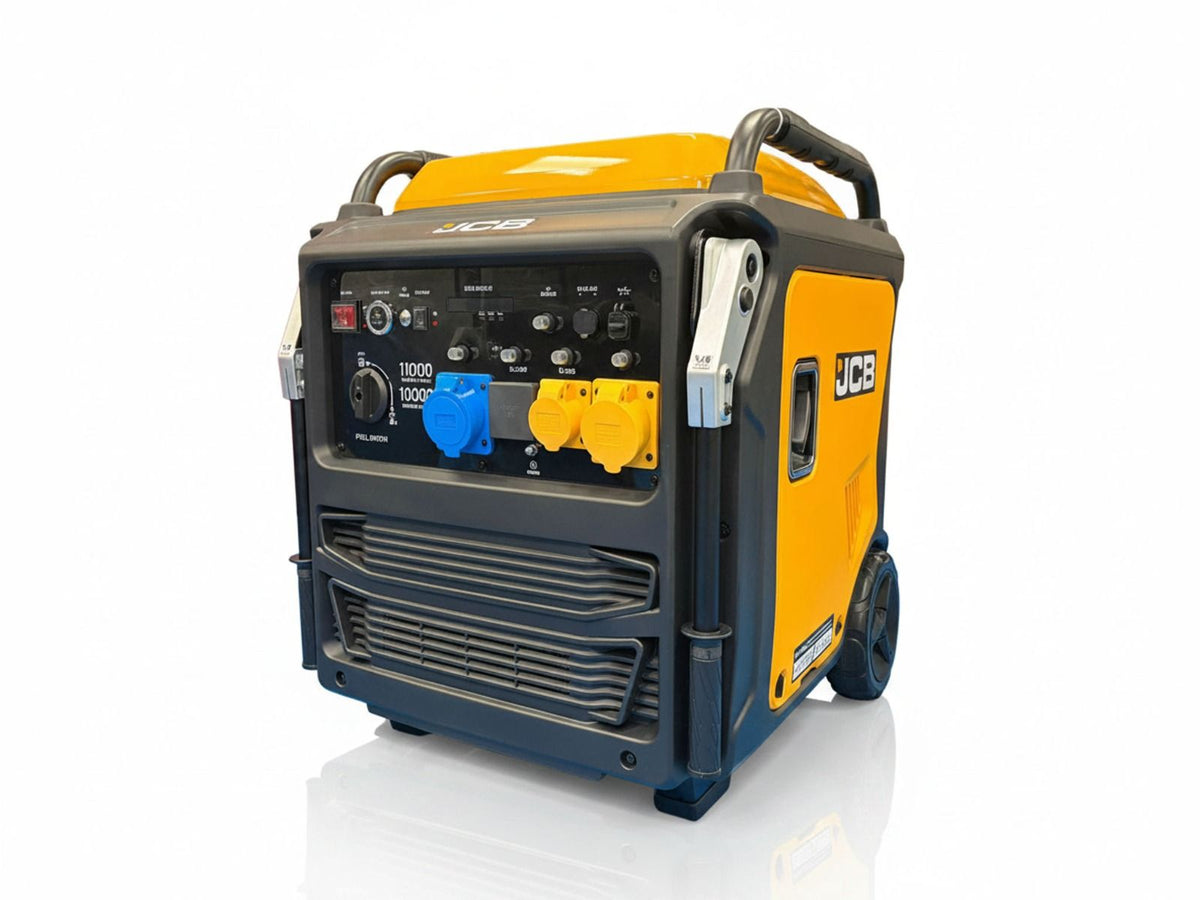

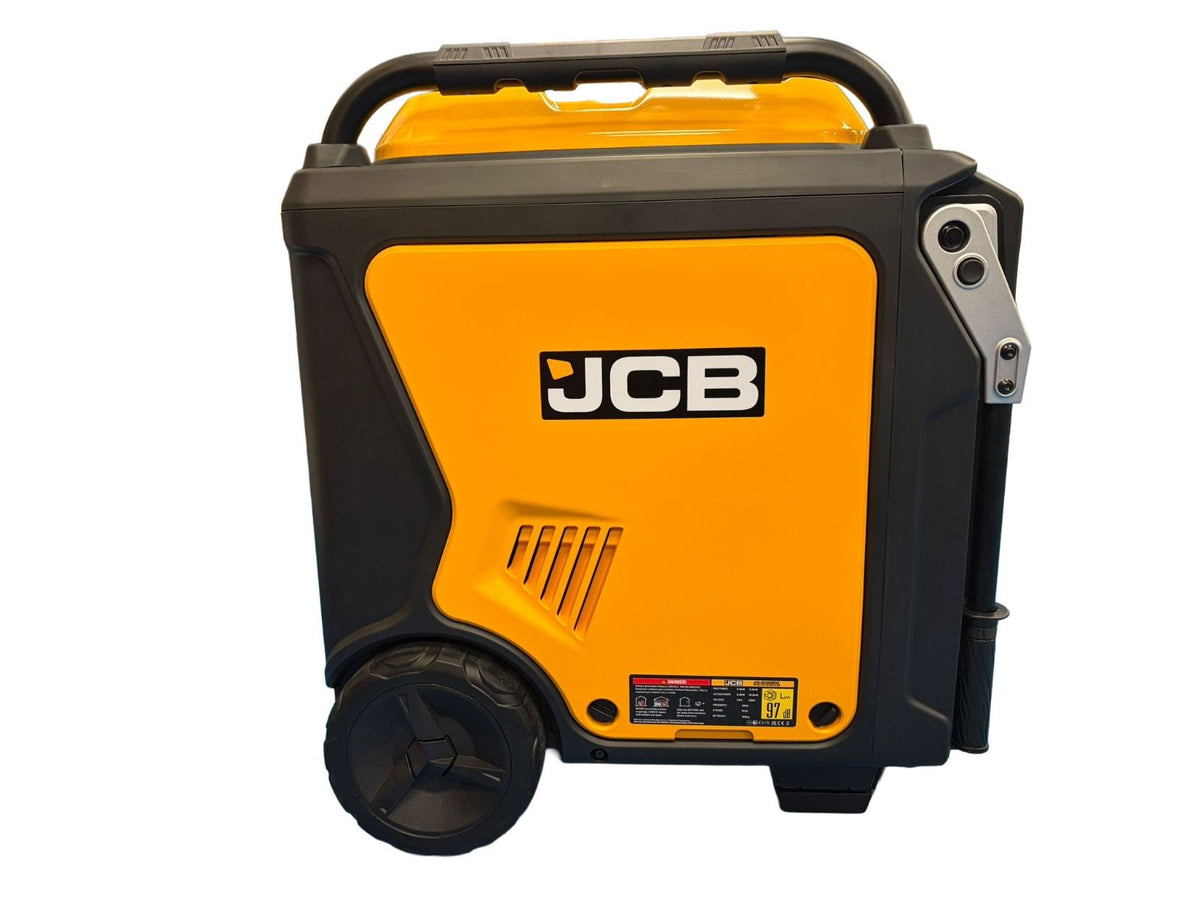

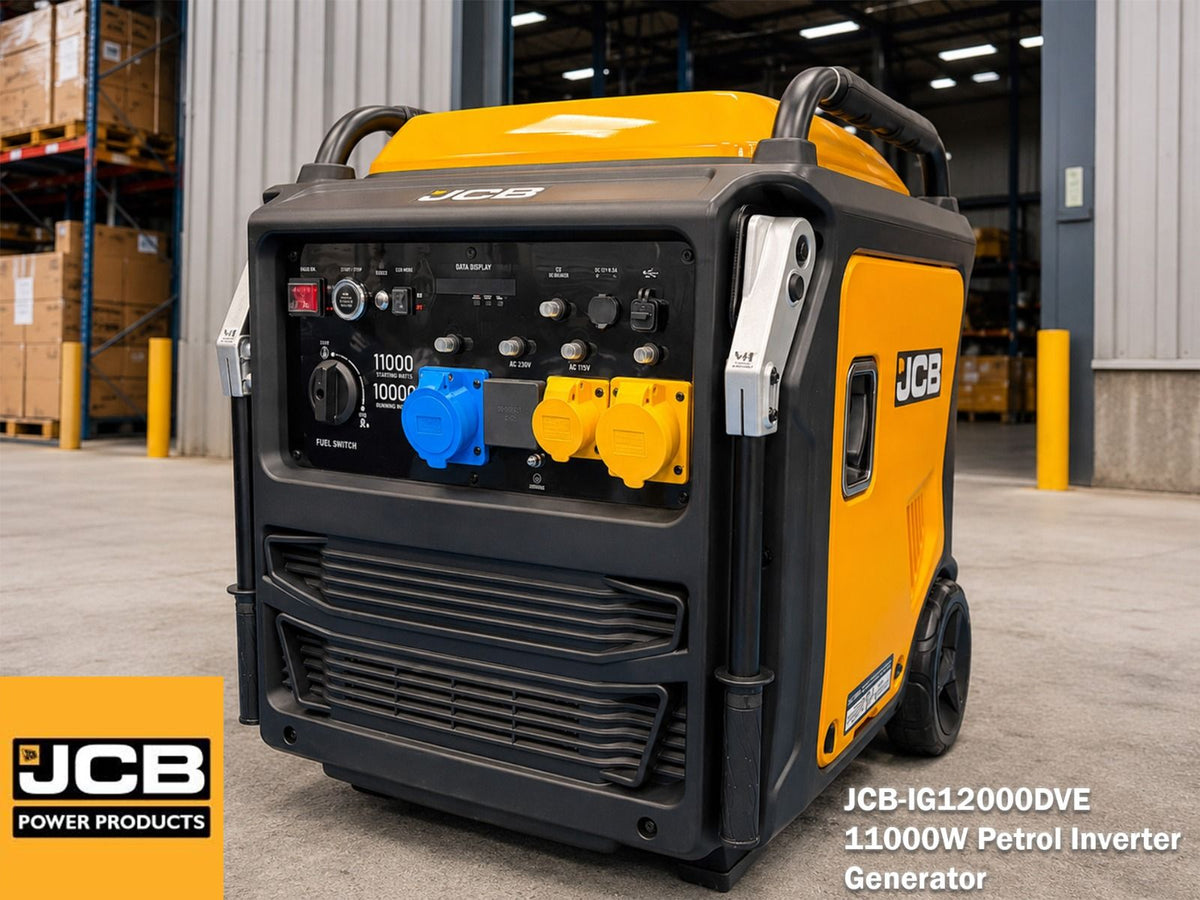

The JCB IG12000DVE is a large petrol inverter generator designed for high-demand temporary power on construction and commercial sites. It has a documented 10,000W running output and 11,000W peak output, so the higher figure must not be used as a continuous load allowance.

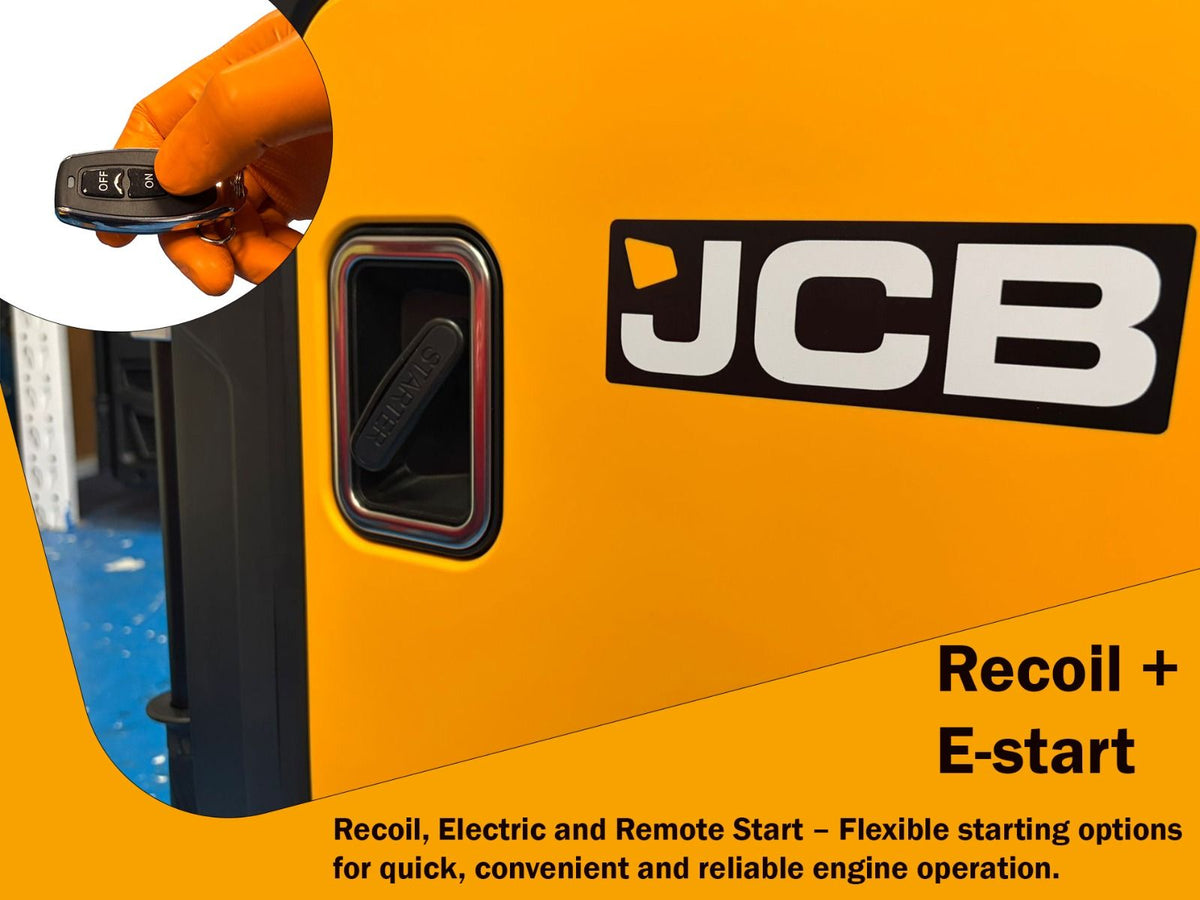

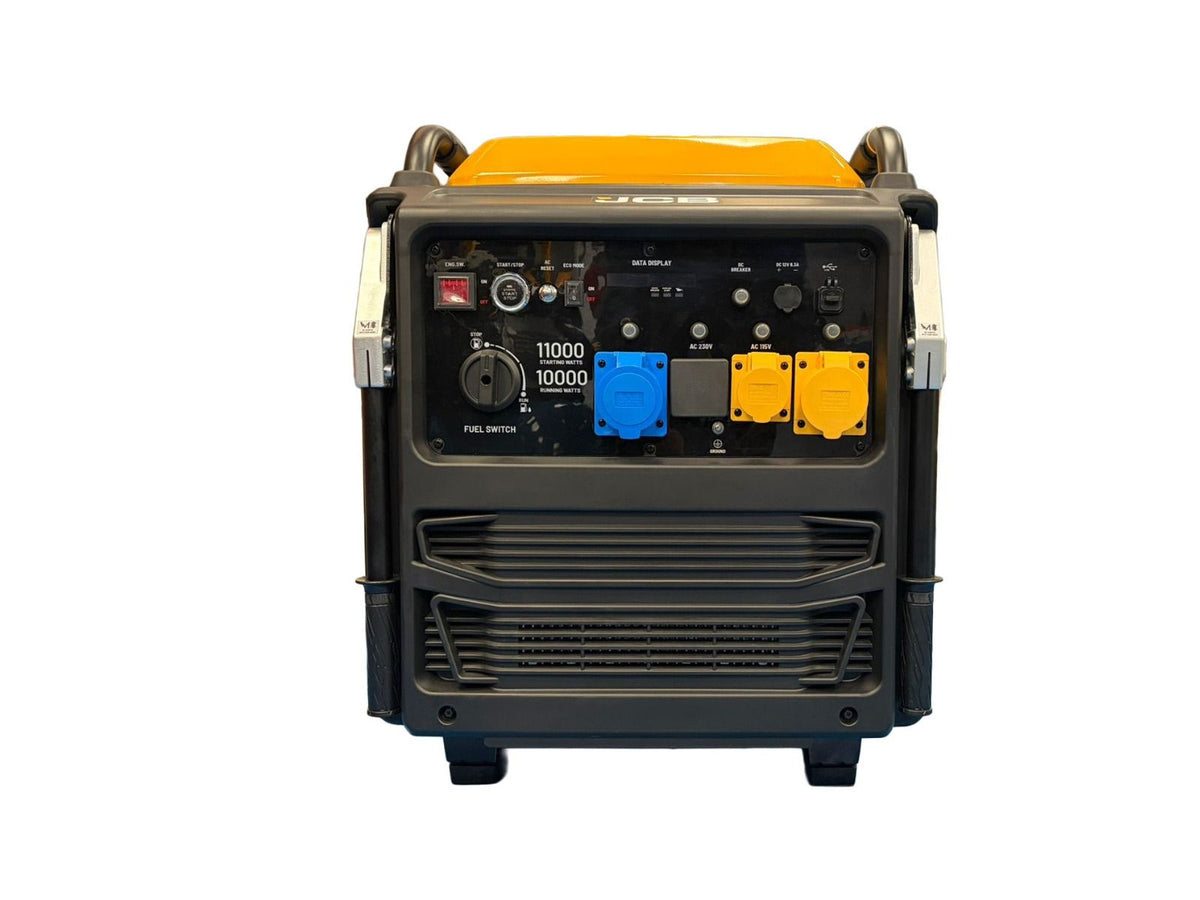

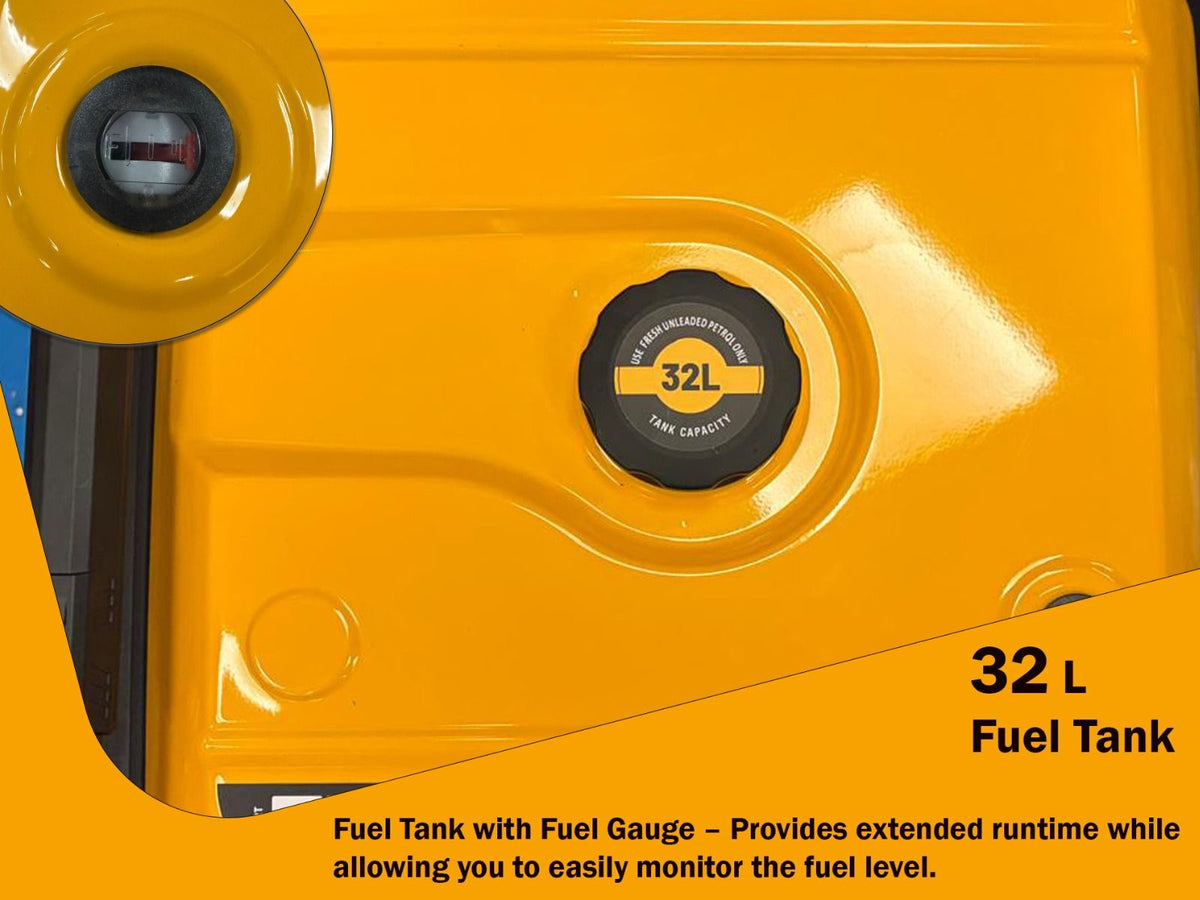

Its 550cc four-stroke engine has electric and recoil starting. The supplied specifications list 115V and 230V AC operation, plus 12V DC and USB outputs. A 32-litre fuel tank supports the unit’s stated runtime of up to five hours.
At 105kg, this generator requires planned handling and suitable installation space. Check the available outlets and starting characteristics of heavy equipment before purchase. Operate outdoors away from doors, windows and ventilation openings. Never backfeed a building; connection to premises needs a qualified electrician and suitable changeover equipment.
Key features
- 10,000W running and 11,000W peak
- 115V/230V inverter generator
- 550cc four-stroke petrol engine
- Electric and recoil start
- 12V DC and USB outputs
- 32L tank
Specifications

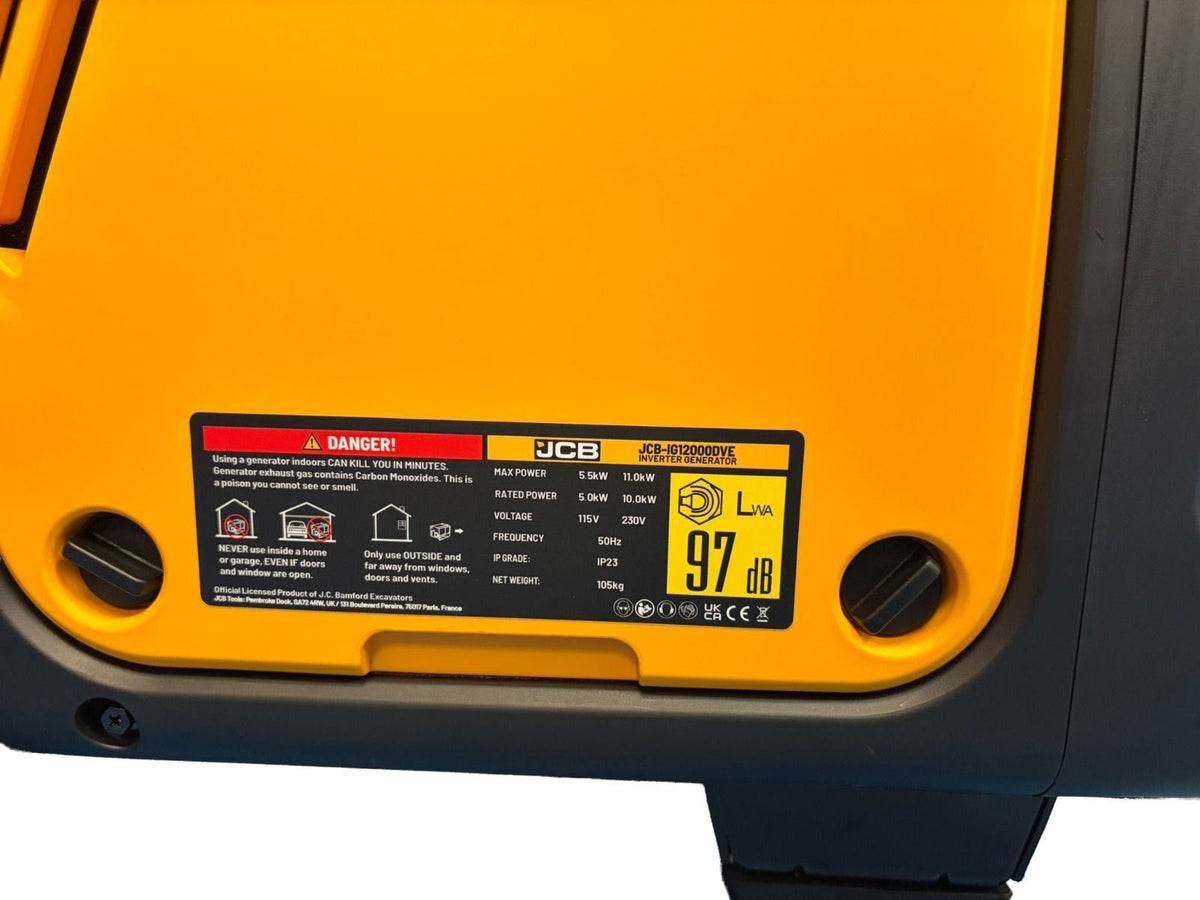

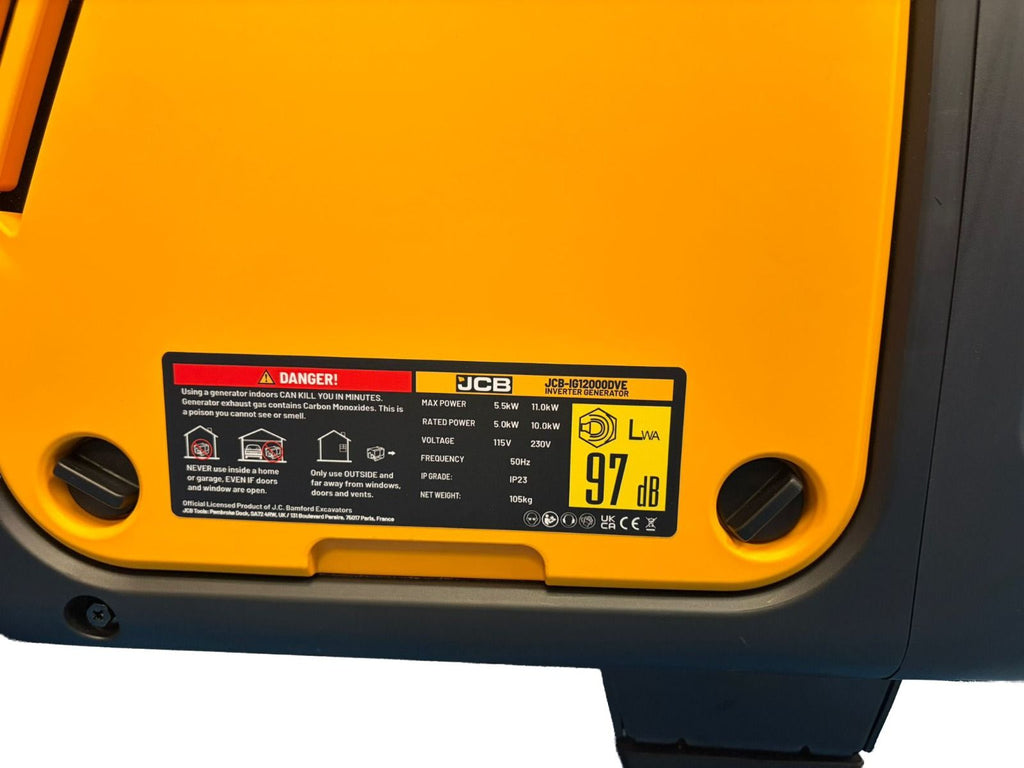

| SKU | JCB-IG12000DVE |
|---|---|
| Fuel | Petrol |
| Running output | 10,000W |
| Peak output | 11,000W |
| AC voltage | 115V / 230V |
| Frequency | 50Hz |
| DC/USB outputs | 12V DC and USB |
| Engine | 550cc four-stroke |
| Starting | Electric / recoil |
| Fuel tank | 32L |
| Stated runtime | Up to 5 hours; load not specified |
| Net weight | 105kg |
| Dimensions (L × W × H) | 680 × 670 × 770mm |
