Description

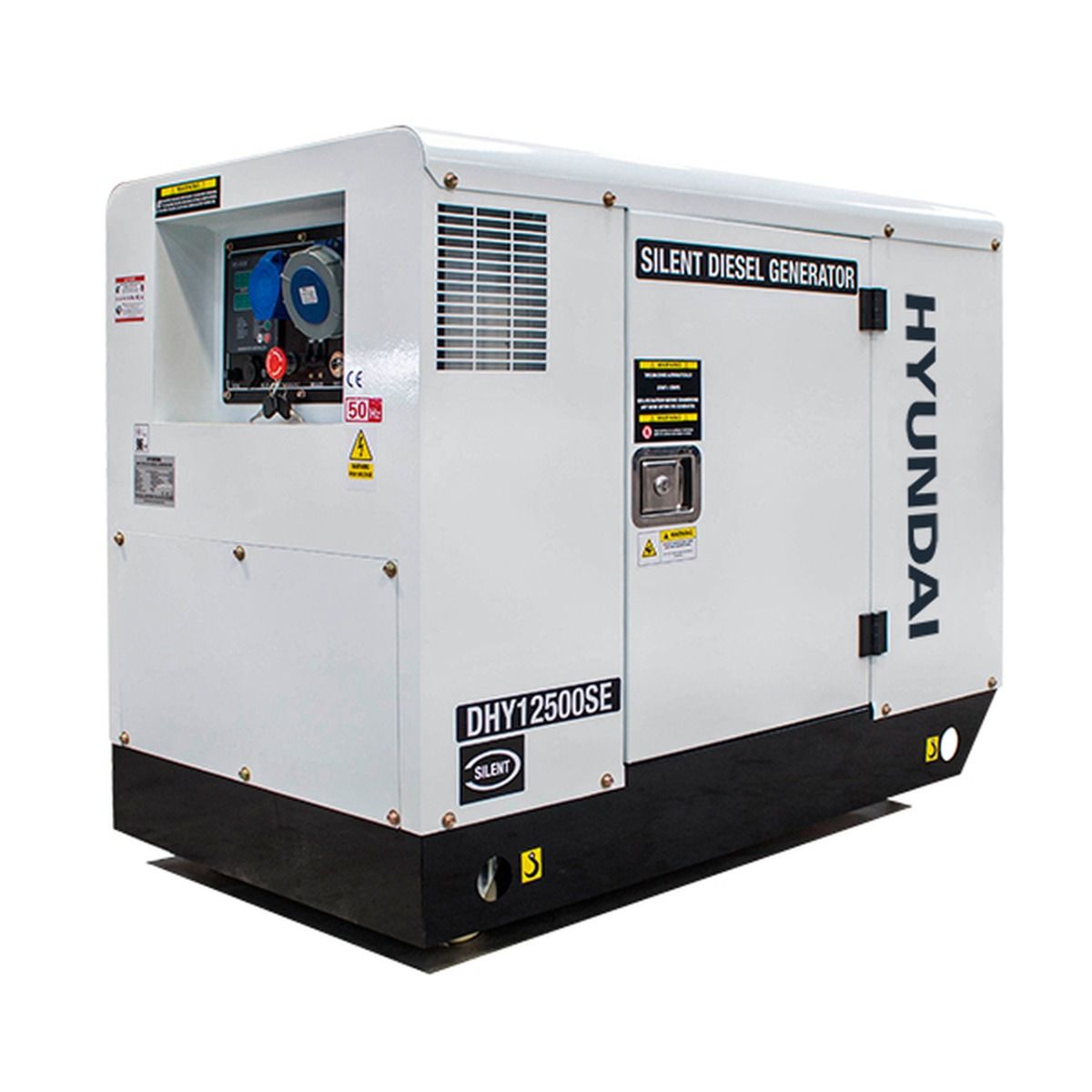

The Hyundai DHY12500SE is a 230V standby diesel generator aimed at larger property and small business loads that require a properly installed alternative supply. Its stated maximum output is 10kW (12.5kVA); a separate continuous watt rating is not clearly established in the supplied brief.

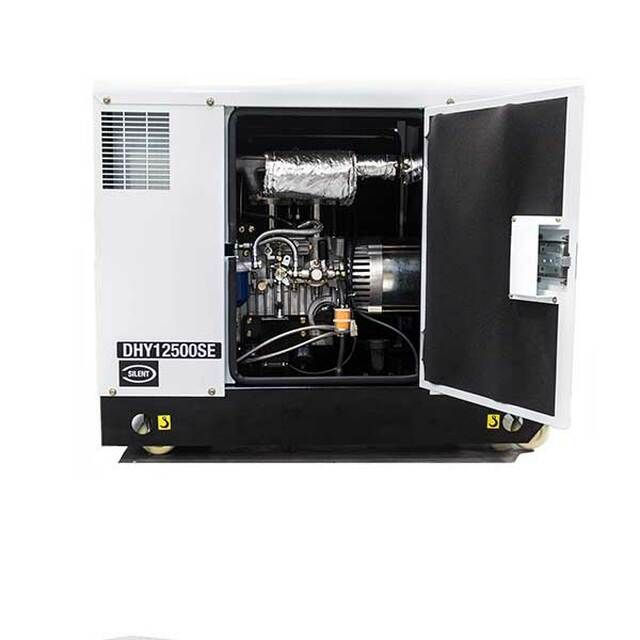

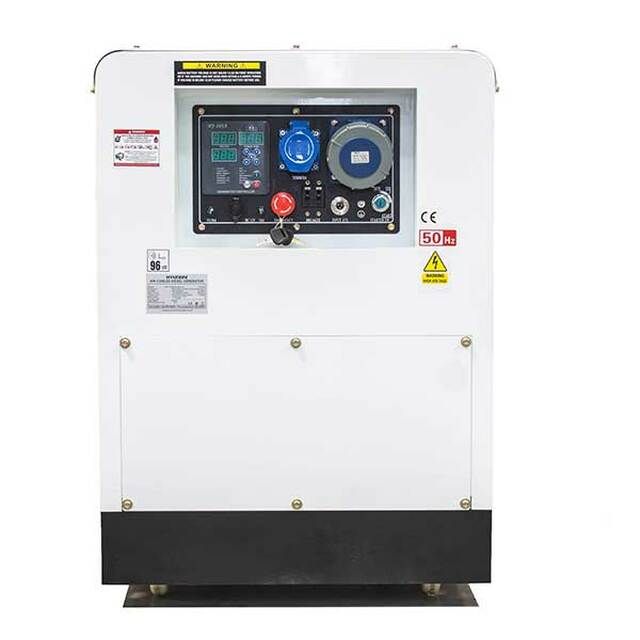

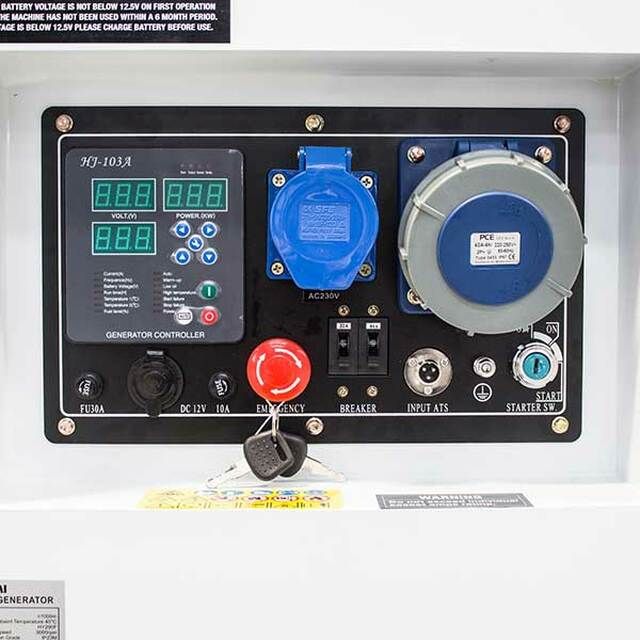

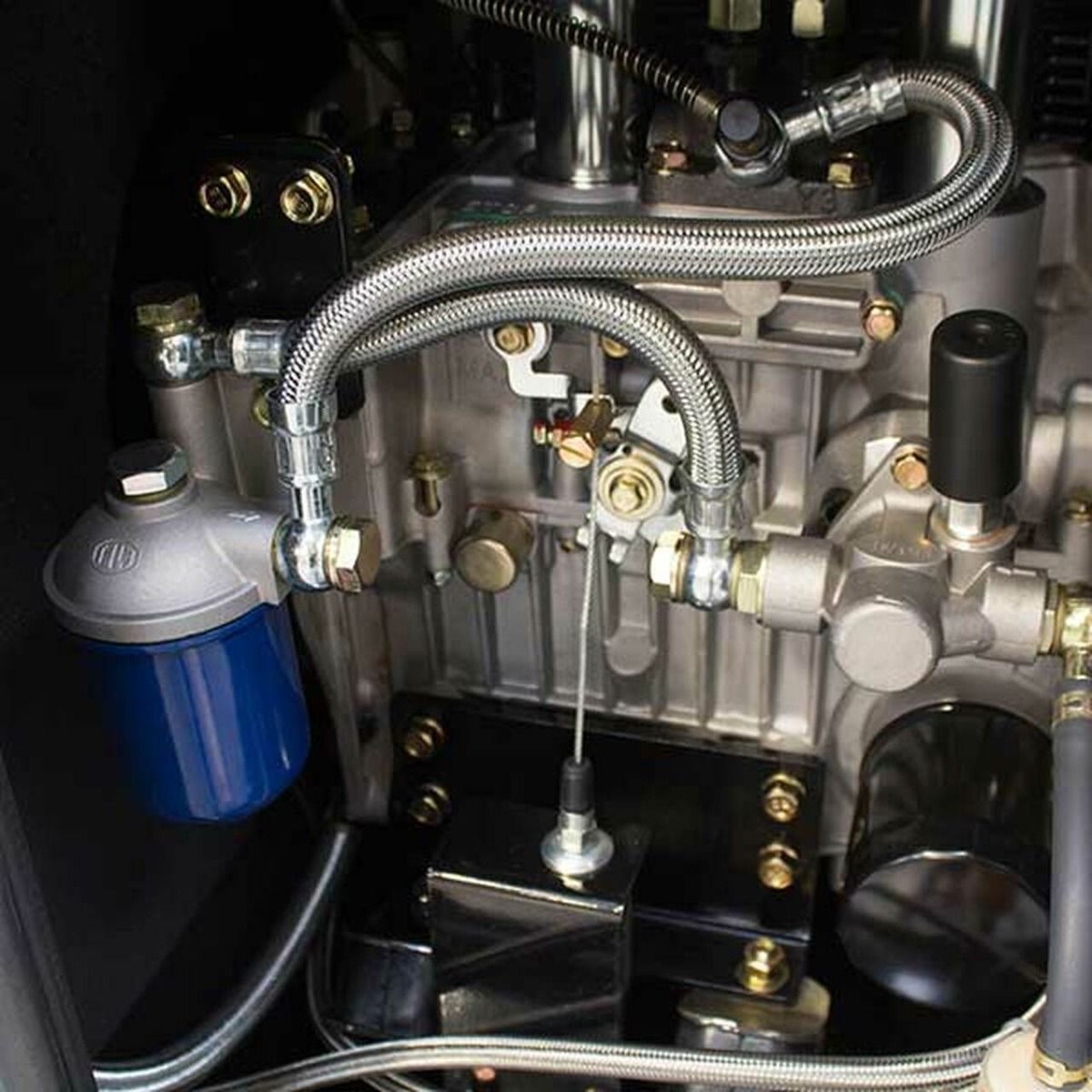

The twin-cylinder air-cooled engine uses electric key starting, with a 60-litre fuel tank stated to run for up to 18 hours at quarter load. A silenced enclosure, AVR regulation and control-panel information for volts, frequency and running hours are documented.
The unit includes 230V 32A and 63A connections and is compatible with two-wire starting and optional ATS equipment. An ATS is not included, and connection to a property requires correctly designed transfer protection. Operate outdoors away from doors, windows and ventilation openings. Never backfeed a building; connection to premises needs a qualified electrician and suitable changeover equipment.
The DHY12500SE supports two-wire remote starting from a compatible hybrid inverter's programmed dry contact. A compatible Solis hybrid model with generator-control support may request starting below a set battery state of charge (SOC) and stopping at its recovery threshold, subject to operating mode and generator readiness. Start/stop control does not transfer the house supply, and a load-transfer ATS is not inherently needed for the signal alone. A qualified electrician must check contact ratings, isolation where necessary, phase, voltage, frequency and inverter input limits, then design AC transfer/isolation and commission the system.
Key features
- 10kW / 12.5kVA stated maximum
- 230V diesel standby generator
- Twin-cylinder air-cooled engine
- 60L tank; up to 18 hours at quarter load
- Electric key start and AVR
- ATS compatible; not included
- Inverter Friendly – Documented two-wire remote start enables professionally configured automatic start/stop requests from compatible hybrid inverter dry contacts.
Specifications
| SKU | DHY12500SE |
|---|---|
| Fuel | Diesel |
| Maximum output | 10kW / 12.5kVA |
| AC voltage | 230V |
| Phase | Single-phase |
| Engine | Twin-cylinder, air-cooled diesel |
| Engine speed | 3,000rpm |
| Starting | Electric key |
| Fuel tank | 60L |
| Runtime at 25% load | Up to 18 hours |
| AC connections | 230V 32A and 63A stated |
| Voltage regulation | AVR |
| Net weight | 295kg |
| Dimensions (L × W × H) | 1,175 × 695 × 1,050mm |
| ATS | Compatible; not included |
| Automatic Start Compatibility | Key, ATS and two-wire remote-start options. Compatible inverter programmable dry contact may request start/stop with suitable control cable, checked contact ratings and isolation where needed. A load-transfer ATS is not needed solely to issue start/stop commands. |
