C/W CT, Required For Battery Systems And Export Limitation
Description
The Huawei Smart Power Sensor SmartPS-250A-T0 is a three-phase current sensor for use in solar power systems. It replaces and offers a wider baud rate range to the DTSU666-H and a faster data refresh interval.
The component processes a voltage of 176 to 288 volts and impresses with a very low power consumption of less than one watt. Installation is simple, easy and effortless. Once the sensor is integrated, it displays the performance data via the built-in LCD screen and can also be operated effortlessly via it. In addition, the Huawei Smart Power Sensor supports communication via RS485, so it can also be read out from another location. It uses the Modbus RTU communication protocol for this purpose.
lt supports multiple baud rates: 4800/ 9600/ 19200/ 11520.
3-phase Smart Power Sensor
176-288 Volt Voltage
Accuracy class > 1
Easy operation via LCD display
Power consumption 1 W
Communication via RS485
Power export limitation control
3 CTs included
Please note that Huawei provide approximately 4 different brands of meters under this product name. Please check the datasheet to confirm which you have received.

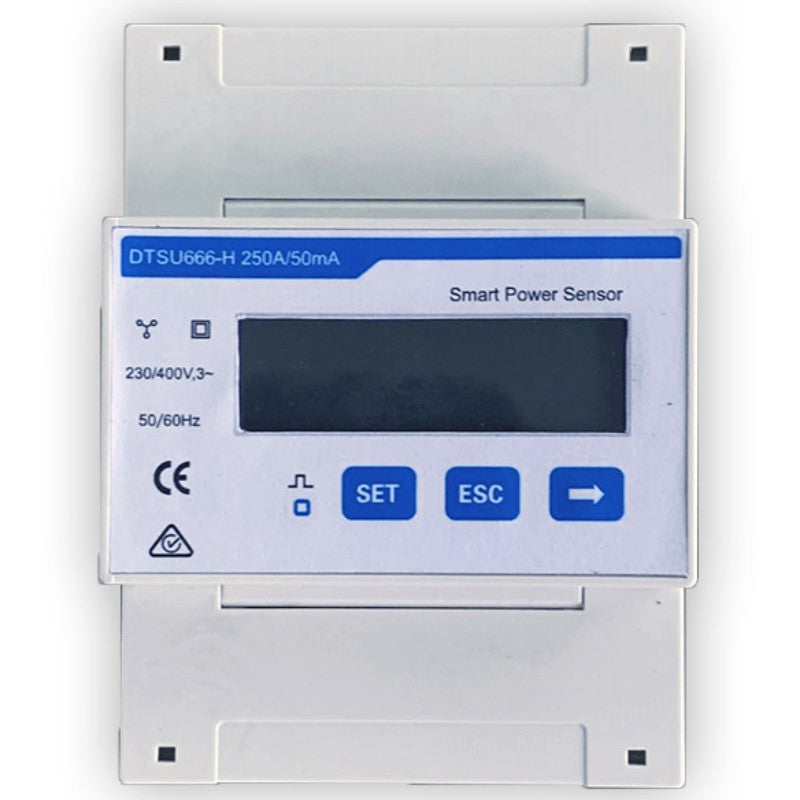

Replaces former stock line DTSU666-H 3Ph 250A/50mA
