Genius SolarFlash Profile Tile Kit

Description

A Genius design for use with Profile Concrete Tiles (ie. Double Roman, Marley Mendip etc). Make your roof installation securer using this kit to limit the compromising of the Roof tile, protect the roof against roof hook and the installation against time and the elements.

Features

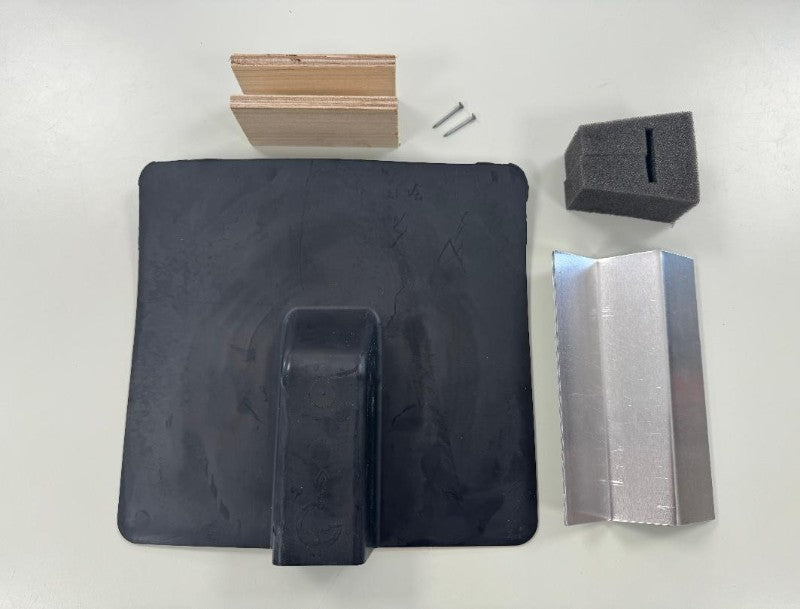

Includes

• Genius SolarFlash FlexiFlash (235mm x 235mm x 1)
• Shims x 2
• Foam Insert x 1
• Metal Support x 1
• Nails x 2

The Flash

• The FlexiFlash is the same size as the ‘small’ SolarFlash (250mm x 235mm) but made from a flexible material which allows it to mould around the curves on a profile tile. The hood is the same size on all three types of SolarFlash ( 50mm wide / 140mm length / 40mm depth). The length of the ‘FlexiFlash’ is based on tiles being single lap (up to 100mm head lap).

Aluminum Support and Foam Insert application

• The aluminium support has been included to support the flexible back of the FlexiFlash and must be used. *It can be quicker to cut the tile rather than notch* There is a foam included in every kit which is required to seal the hood. The foam was designed with snow in mind to stop wind taking light snow into the roof.

Downloads

• SolarFlash Instructions
