Sale
SUN-10.0
Contact us to for back order
Description
Description

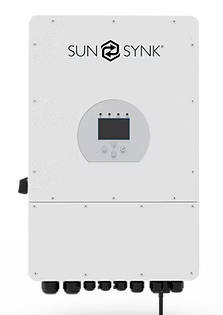

The Sunsynk single phase hybrid Inverter is the ideal inverter for managing power flow from multiple sources such as solar, main electrical grid and generator for residential or commercial purposes.
Product Features
Maximum charging /discharging current of 220A.
Support storing energy from diesel generator.
Compatible with most Li-ion and lead-acid batteries.
Up to 10 units can be paralleled.
Essential and Non-Essential Loads outputs.
SYNK-10K-SG02LP1
Features
Specifications
| Supplier Part No | SYNK-10K-SG02LP1 / 10000016 |
|---|---|
| Weight | 36 kg |
| Rated Power | 10,000 W |
| Min PPT Voltage | 150 V |
| Max PPT Voltage | 425 V |
| DC Startup Voltage | 125 V |
| DC Shutdown Voltage | 124 V |
| Max Input Voltage | 500 V |
| Max DC Power | 15,000 W |
| Max AC Power (5 Minutes) | 10,000 W |
| Surge AC Power (1 Second) | 20,000 W |
| Max DC Current | 78 A |
| Max DC Inputs | 3 |
| Has DC Fuses | 0 |
| Connector | Screw Terminal |
| Included Connectors | 0 |
| Euro Efficiency | 97.6 % |
| Transformer | none |
| MPPT Quantity | 3 |
| Has Integrated DC Switch | Yes |
| Warranty | 5 years |
