Description

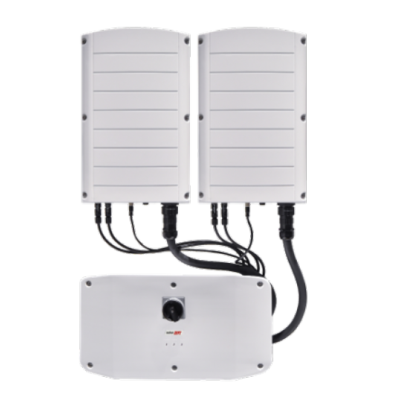

The SolarEdge Synergy 66.6kW Solar Inverter is a 3-phase inverter with MC4 connectors and DC (EU Switch) to maximize energy savings. This inverter allows for enhanced system design flexibility with its ability to operate with both single and dual strings of PV modules. The dual-string design increases energy production and system safety, reducing the need for string fusing.
Powered by unique pre-commissioning process for rapid system installation
• Pre-commissioning feature for automated validation of system components and wiring during the site installation process and prior to grid connection
• Easy 2-person installation with lightweight, modular design (each inverter consists of 2 or 3 Synergy Units and one Synergy Manager)
• Independent operation of each Synergy Unit enables higher uptime and easy serviceability
• Built-in thermal sensors detect faulty wiring ensuring enhanced protection and safety
• Built-in arc fault protection and optional rapid shutdown
• Built-in PID mitigation for maximized system performance
• Monitored* and field-replaceable surge protection devices, to better withstand surges caused by lightning or other events: integrated RS485 and Type 2 DC SPDs, optional Type 2 AC SPD
• Optional integrated DC safety switch eliminates the need for external DC isolators
• Built-in module-level monitoring with Ethernet or cellular communication for full system visibility
Note: Secondary Units are sold separately - 2 required for SE66.6K.
Specification
- Manufacturer: SolarEdge Technologies
- Phases: 3 Phase
- Power Rating kW: 66.6
- Inverter Type: Optimised Inverter
- Built in DC: No
- Built in Communication: Optional
- Dimensions (mm) (H x W x D): 558 x 328 x 273
