Description

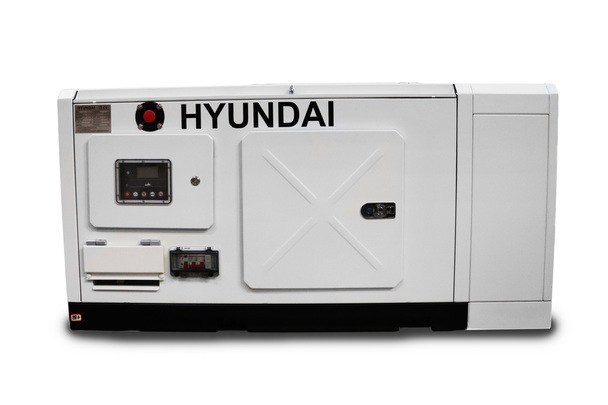

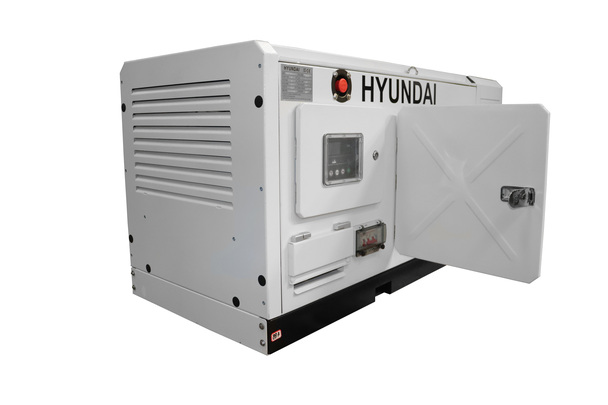

The Hyundai DHY18COM-1 is a larger stationary-style diesel generator intended for planned business and property standby applications or appropriately specified prime-power installations. It uses a 1,500rpm diesel engine, making duty cycle and installation design key considerations when comparing it with faster-running portable models.

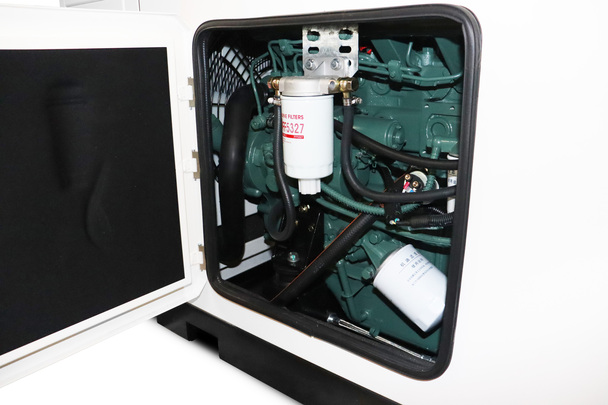

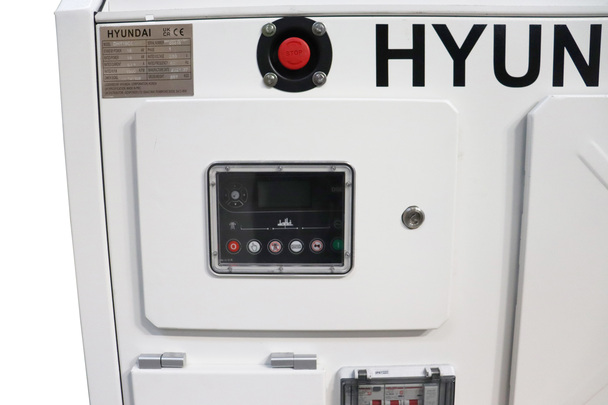

The supplied facts identify a four-cylinder, 1,809cc, water-cooled engine and a 230V single-phase, 50Hz AC supply. A DSE6120 MKIII control panel supports monitoring and generator controls, while a brushless AVR-regulated alternator and busbar output are listed. A 40-litre fuel tank is provided.
The source contains conflicting prime-versus-standby power labels, so no unverified watt or kVA duty rating is repeated here; confirm the applicable rating before specifying a load. ATS/MTS compatibility is listed, but transfer equipment is not documented as included. Operate outdoors away from doors, windows and ventilation openings. Never backfeed a building; connection to premises needs a qualified electrician and suitable changeover equipment.
The DHY18COM-1 has a two-wire volt-free remote-start interface. A compatible Solis hybrid model with generator-control support may request a start when battery state of charge (SOC) falls below its configured threshold and a stop after recovery, subject to inverter operating mode and generator readiness. Start/stop control does not transfer the house supply; a full load-transfer ATS is not required just to send the control request. A qualified electrician must check contact ratings, isolation, phase, voltage, frequency and inverter input limits, then design AC transfer/isolation and commission the installation.
Key features
- 1,500rpm water-cooled diesel generator
- 230V single-phase output
- DSE6120 MKIII control panel
- Brushless AVR alternator
- ATS/MTS compatible; switching equipment separate
- Busbar connection
- Inverter Friendly β Two-wire volt-free remote starting can integrate with compatible hybrid inverter programmable dry contacts after professional checks.
Specifications
| SKU | DHY18COM-1 |
|---|---|
| Fuel | Diesel |
| Phase | Single-phase |
| AC voltage | 230V |
| Frequency | 50Hz |
| Rated engine speed | 1,500rpm |
| Engine | Four-cylinder, 1,809cc, water-cooled |
| Control panel | DSE6120 MKIII |
| Alternator | Brushless, AVR |
| Connection | Busbar |
| Fuel tank | 40L |
| Net weight | 520kg |
| Dimensions (L Γ W Γ H) | 1,600 Γ 740 Γ 825mm |
| ATS/MTS | Compatible; separate equipment required |
| Automatic Start Compatibility | Two-wire volt-free relay start interface. Compatible inverter programmable dry-contact start/stop possible with verified contact ratings, suitable cable and isolation where required. A load-transfer ATS is not inherently required merely to request start/stop. |
