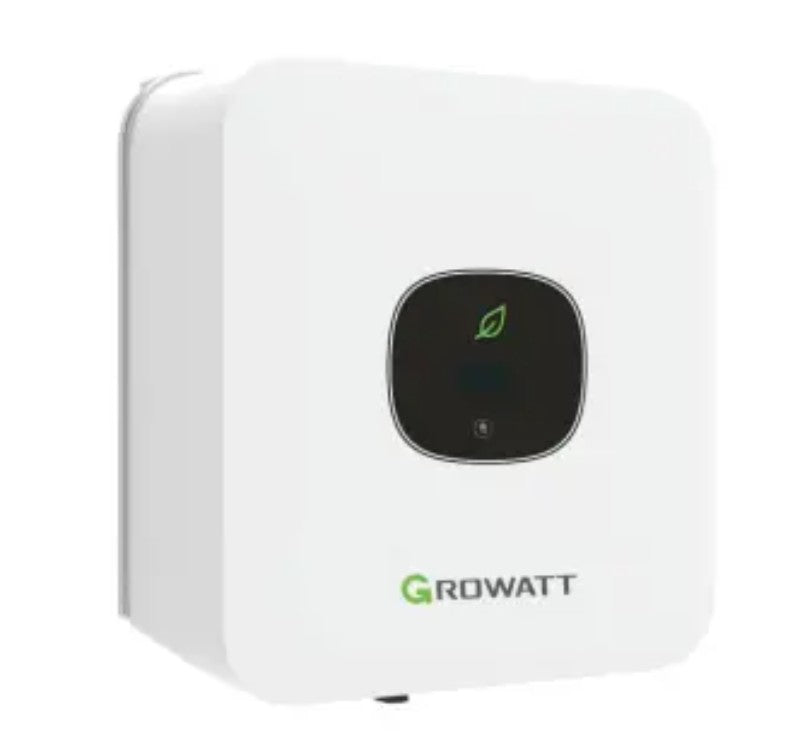

The Growatt MIC 2000 TL-X (AF) Inverter delivers on price and quality. These inverters are designed with residential, commercial residential and small commercial applications in mind.
The inverter includes a number of advanced features enabling simple installation and ease of use. An user-friendly interface allows the homeowners and installers to monitor the system and making any adjustments needed.
When setting up the Growatt inverter there are a range of monitoring systems to choose from, depending upon the needs of the client and installation. Please contact our sales team for the best option or review those listed on our website.
Compact design for one person installation
Touch key and OLED display
Maximum efficiency of 97.6%
Wide MPPT voltage range
Optional AFCI function
IP65 protection
Growatt comprehensive warranty plan
10 year warranty
Features
Basic specifications
| Max. recommended PV power (for module STC) [W] | 2800 |
|---|---|
| Max. DC voltage[V] | 500 |
| Nominal Voltage[V] | 360 |
| AC nominal power [W] | 2000 |
| Max. output current [A] | 9.5 |
| Dimensions (W / H / D) [mm] | 274/254/138 |
| Weight [kg] | 6 |
| MAX. efficiency [%] | 97.4 |
| Protection degree | IP65 |
| Interfaces | Interfaces: : RS485 / USB/Wi-Fi/GPRS/ RF/LAN |
| Cooling | Natural convection |
| Topology | Transformless |
