Contact us to for back order
Description
Description

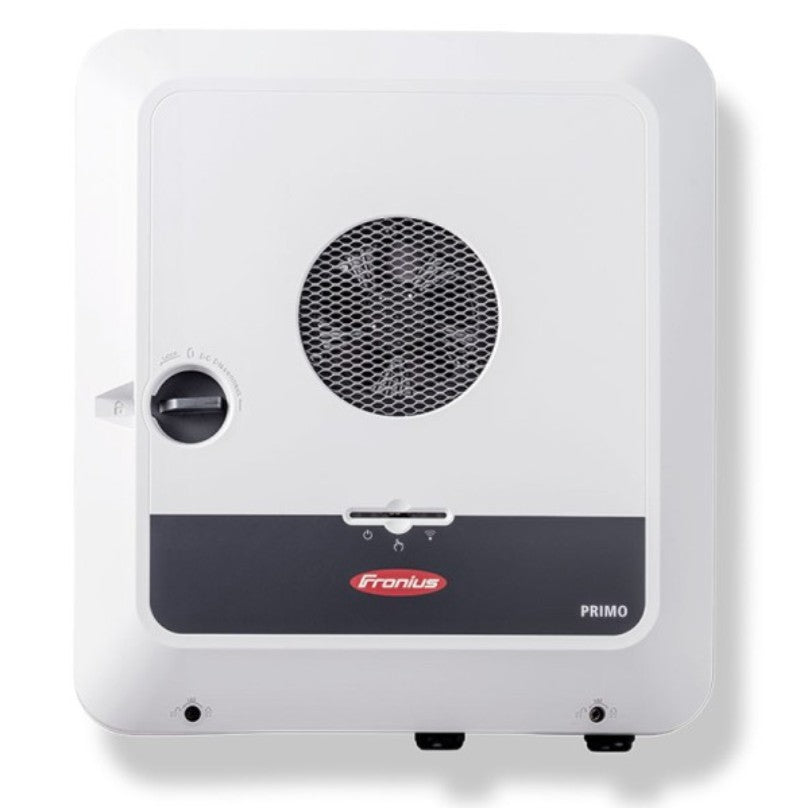

The Fronius GEN24 allows the brilliant flexibility for residential customers for their present and future needs. This 1ph inverter can be updated after installation to be compatible with specified batteries. This functionality is available for separately purchase. Alternatively the Fronius GEN24 PLUS offers the hybrid solution from the original point of installation.
With or without batteries the GEN24 has a new feature called 'PV point' which allows a 3 pin plug to provide backup power direct from the solar panels in the event of a blackout.
Fronius Solar.Web
With Solar.web, you can always keep an eye on your electricity consumption. All the information you need is available anytime, anywhere and you will be notified of any important events.-----
Did you know you can design your PV System with Fronius?! Fronius Solar.creator - the perfect design tool! Dimension your photovoltaic system using the latest solar modules and all available Fronius inverters!
See for yourself! - Fronius Solar.creator
AC attributes
Max power
5000W
Max current
22.7A
Number of phases
1
EPS power
3kW PV point, 3kw on battery
DC attributes
Features
Panels
- Number of MPPT
- 2
- V range of MPPT
- 65 - 530V
- Max power Max current
- 5500W 33A/18A
- Max voltage
- 600V
- Start up voltage
- 80V
Batteries
- Max power
- 3000W
- Max current
- 22A
- Battery types
- Lithium (BYD)
- Battery voltage range
- 150 - 455V
Technical Specifications
| AC attributes | Max power |
|---|---|
| Number of phases | 1 |
| EPS power | 3kW PV point, 3kw on battery |
| DC attributes | 2 |
| Panels | : V range of MPPT |
| Number of MPPT | 65 - 530V |
| Start up voltage | 80V |
| Batteries | : Max power |
| Battery types | 150 - 455V |
| Lithium (BYD) | Max efficiency |
| Battery voltage range | 97.6% |
| IP rating | IP66 |
| DC switch, reverse polarity, DC insulation measurement | Export limitations |
| Weight | 15.4kg |
| Dimensions | 530x474x165mm |
| Communication | Wifi, Ethernet, 6 IO pins, USB 2.0 |
| Key features | Supports export control |
| Wide PV voltage range | IP66 protection class |
Additional Notes
- 5000W
- Max current
- 22.7A
- Max power Max current
- 5500W 33A/18A
- Max voltage
- 600V
- 3000W
- 22A
- Built in protection
- Possible using meter
- Warranty (extensions)
- 10 years (15 years extensions available)
- Dynamic peak manager for accurate MPP tracking
- Active cooling
- PV point
