Description
Short Description
Rating: 610W
Efficiency: 23.1%
Width: 1,134mm
Height: 2,333mm
Price per Watt: (13.1c/Wp)
Description

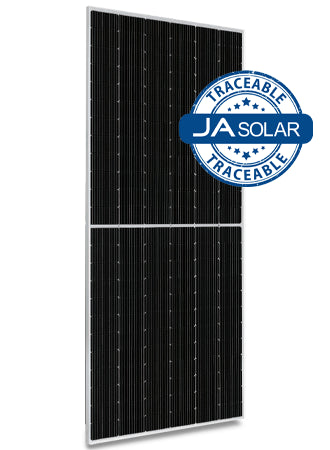

610W N-type Double Glass High Efficiency Mono Module.
Powered by the latest MBB n-type solar cell and half-cell configuration, these modules have higher output power, lower LID, better weak illumination response, and better temperature coefficient.
Product Features:
High Power Output (610W) : The JA Solar 610W module delivers an exceptional power output, making it an ideal choice for residential, commercial, and industrial applications.
N-Type Cell Technology: The use of N-type cells enhances the efficiency and longevity of the module.
Durable Double Glass Design: The double glass construction provides enhanced durability, improving resistance to environmental stresses such as moisture, dust, and temperature fluctuations.
Bifacial Technology: With bifacial panels, this solar module captures sunlight on both the front and rear sides.
Note: 1200mm landscape cable included
Product Warranty: 12 year
Linear Power Output Warranty: 30 year
JA Solar Integrated Traceable System.
Segen Solar is an authorized reseller for JA Solar, please refer to the letter in the document section.
Due to size of the panels and size of the gap between the slats of the pallets (both length and width entries) a fork lift truck on site is required to offload these modules. In Germany, this module may only be installed on building-independent solar systems in publicly inaccessible areas with a height of up to 3m.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Features
Specifications
| Supplier Part No | JAM72D-40-610-LB-TS-MC4 |
|---|---|
| Weight | 32.5 kg |
| Rated Power | 610 W |
| MCS Reference | BABT 8515-341-610W |
| Length | 2,333 mm |
| Width | 1,134 mm |
| Depth | 30 mm |
| VMPP | 44.11 V |
| IMPP | 13.83 A |
| Isc | 14.57 A |
| Voc | 52.8 V |
| Temp. Coefficient (Mpp) | -0.29 % |
| Clamp position on panel | Long side only |
| Connector Description | EVO2A |
| Connector Type | Round Post |
| Efficiency | 23.1 % |
| Pallet Size | Oversized |
