Description
Description
AIKO's third generation provides improved power output, temperature coefficients and cell optimisation allowing the 3S+ 515W panel to achieve an efficiency of 23.2%. It also has better micro-crack resistance for durability and a lower BOS to allow for a simpler and quicker installation.

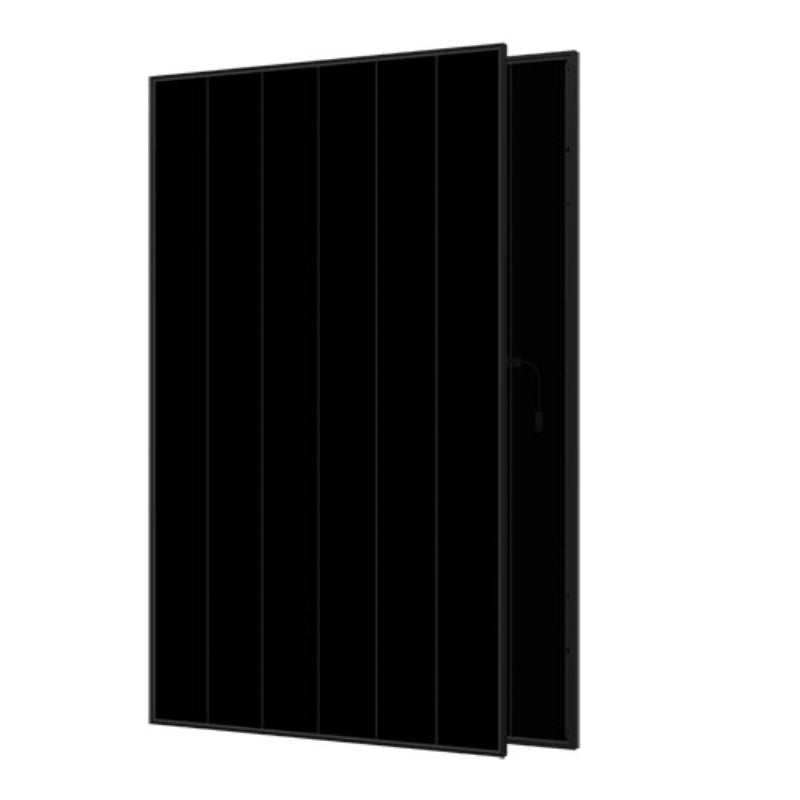

The all black design and bezel-less edge give the panels a sleek look that is made possible by AIKO's All Back Contact technology. All Back Contact means the metal grid traditionally on the front of the panel is moved to the back, creating an aesthetically pleasing panel as well as increasing the area on the panel that is illuminated and can be used to generate power, reducing resistive losses, and increasing efficiency.
37 Modules per pallet
Features
Technical Specifications
| Peak power | 515W |
|---|---|
| Vmp | 37.90V |
| Voc | 45.10V |
| Imp | 13.59A |
| Isc | 14.66A |
| Weight | 27.1 kg |
| Dimensions | 1954 x 1134 x 30mm |
| Performance Warranty | 30 years |
| Product Warranty | 25 years |
| Efficiency | 23.2% |
| Product code | AIKO-A-MCE60Db |
