MPPT solar panel adapter for DJI power stations

MPPT solar panel adapter for DJI power stations

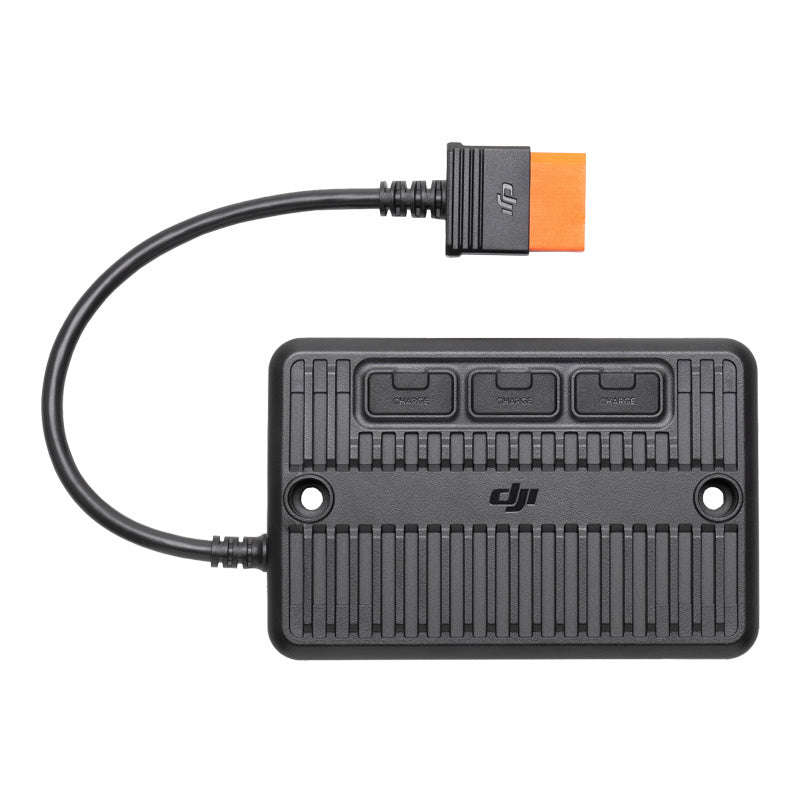

The MPPT Solar Panel Adapter for DJI Power Stations enables DJI Power Series Power Stations to be charged environmentally using solar power. The device offers a maximum output power of 200 watts on a single channel and up to 400 watts with three channels. The adapter works with an input voltage range of 12-30 V DC and a maximum current of 10 A for a single channel and 16 A with three channels.

Comfortable use

The adapter operates at temperatures from -10° to 45° C, allowing it to be used in various environmental conditions. It is compatible with DJI Power 1000 and DJI Power 500 models, as well as with DJI-certified Zignes brand solar panels. Use of other brands of panels requires an MPPT module and conversion of the port to the XT60 interface.

Eco-friendly solutions

This solution is ideal for users who want to use renewable energy sources, reducing dependence on the electric grid. With the adapter, it is possible to charge devices in places without access to traditional power sources, making the DJI Power Station more mobile and eco-friendly.

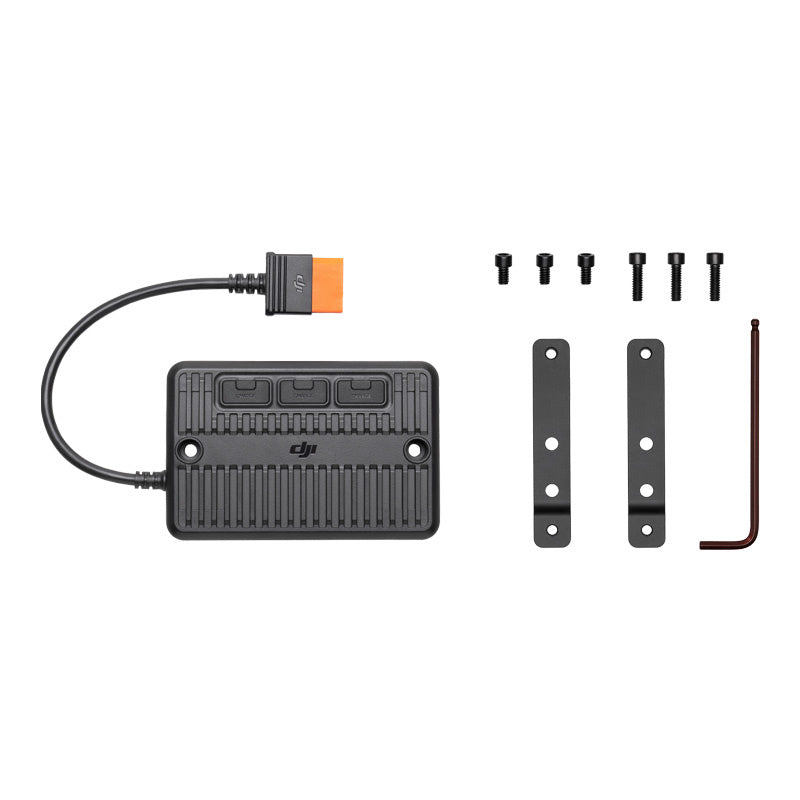

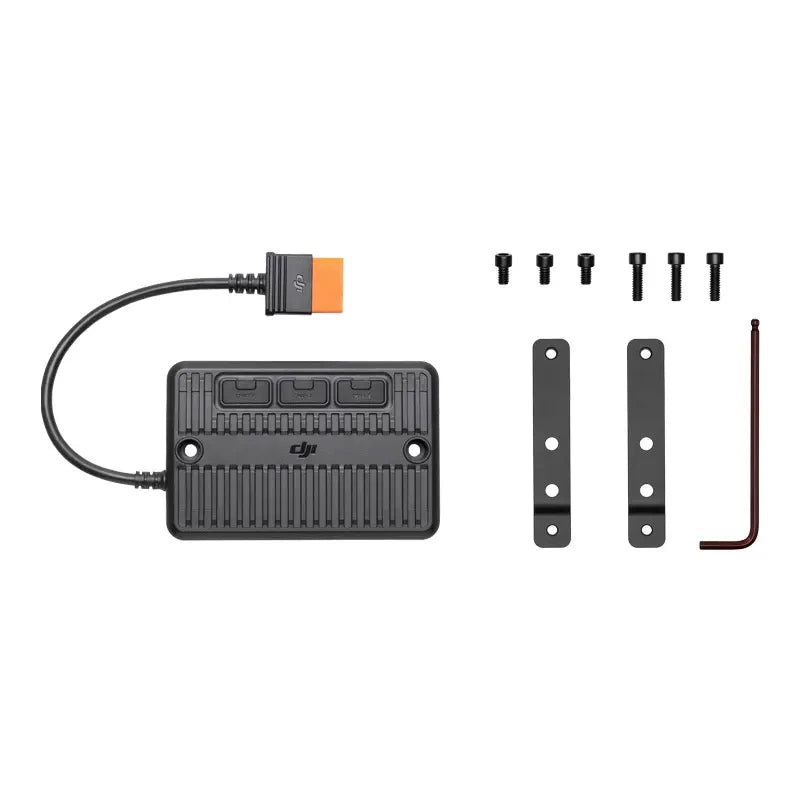

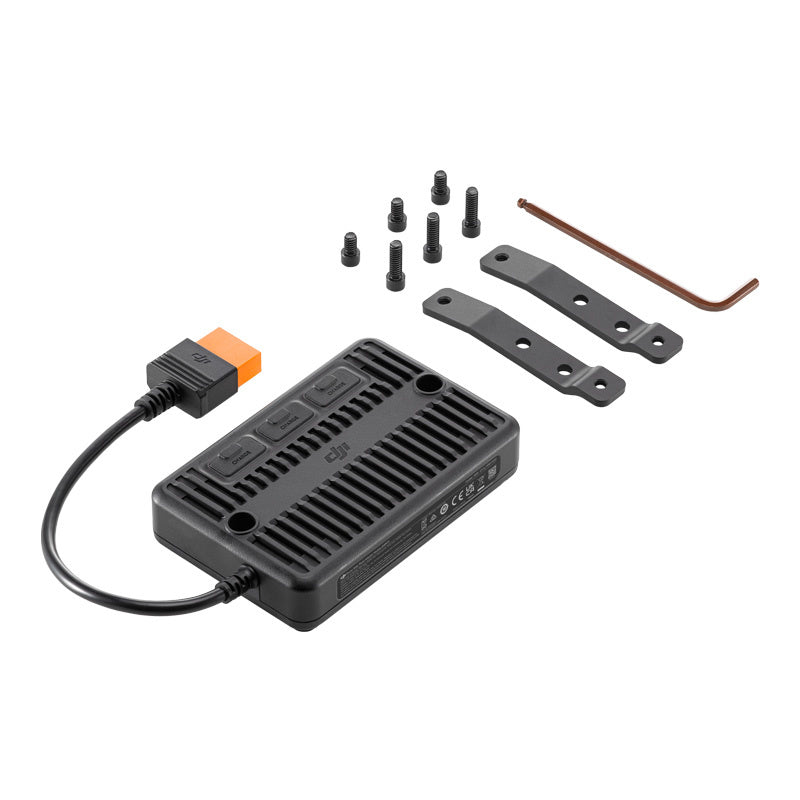

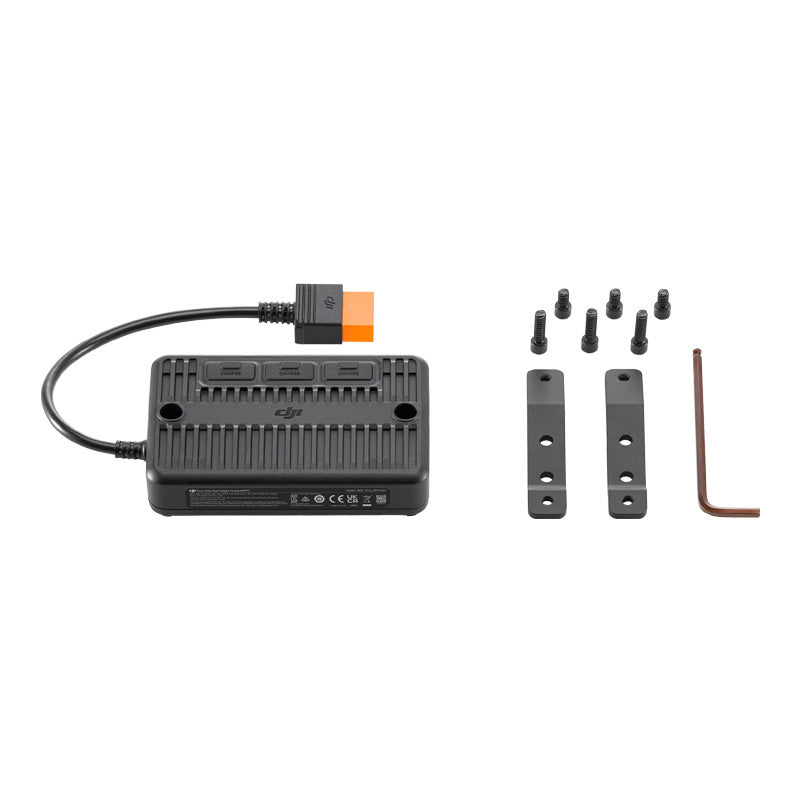

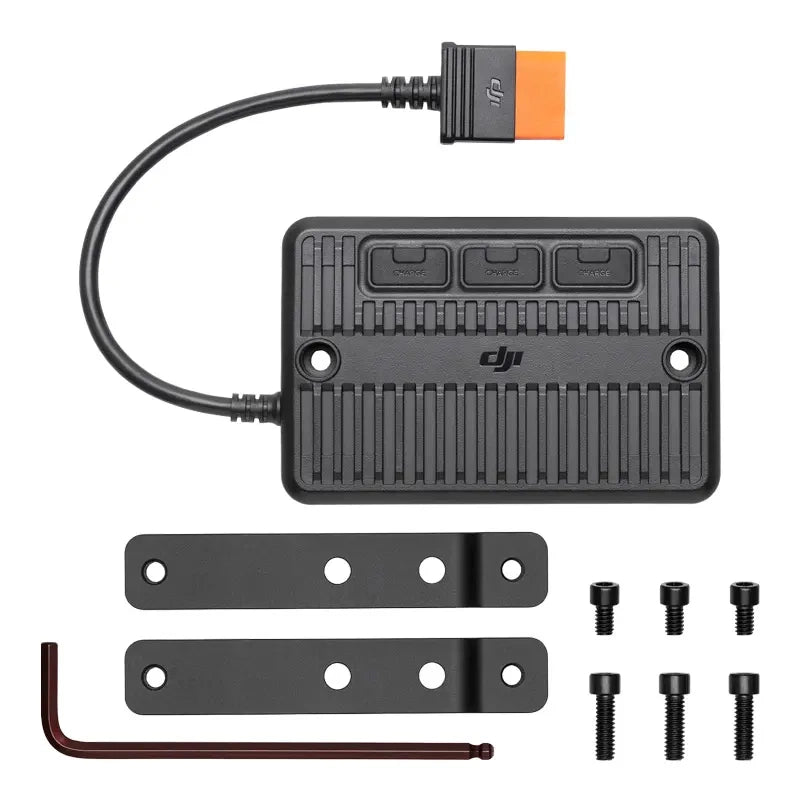

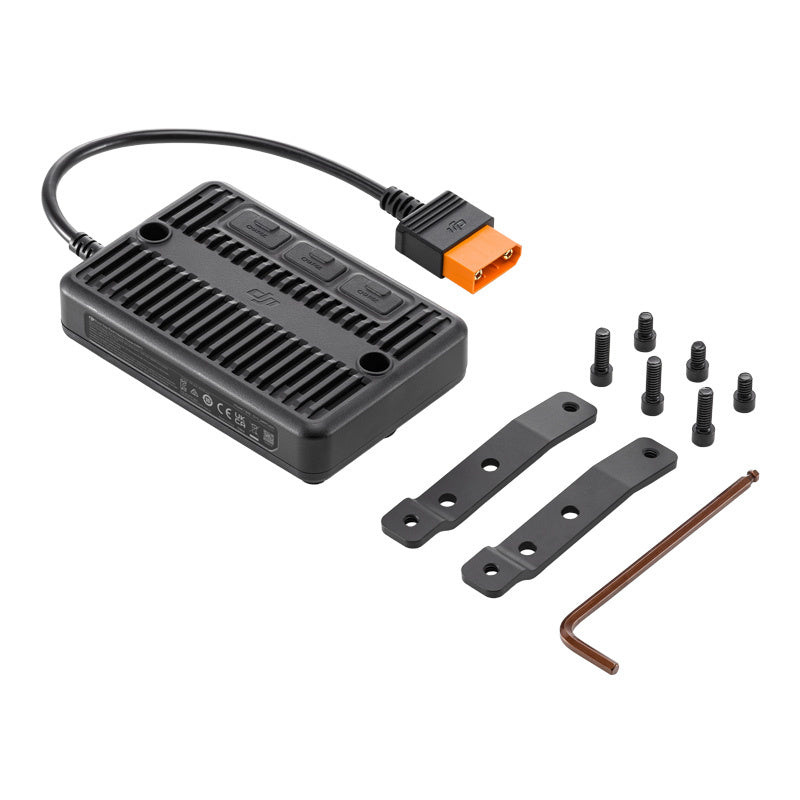

Included

• DJI Power solar panel adapter module (MPPT) × 1
• Metal heat dissipation bracket × 2
• Hex key with ball × 1
• 10 mm screw × 3
• 20 mm screw × 3

Technical specifications

Safety information and responsible entity

Entity responsible for this product in the EU Producer DJI Europe B.V. LA 2992 49B01 Barendrecht Netherlands dealer.nl@dji.com Responsible entity DJI Europe B.V. LA 2992 49B01 Barendrecht Netherlands dealer.nl@dji.com Products safety Products safety information

Downloads

• Manual
• Products safety information
