Description

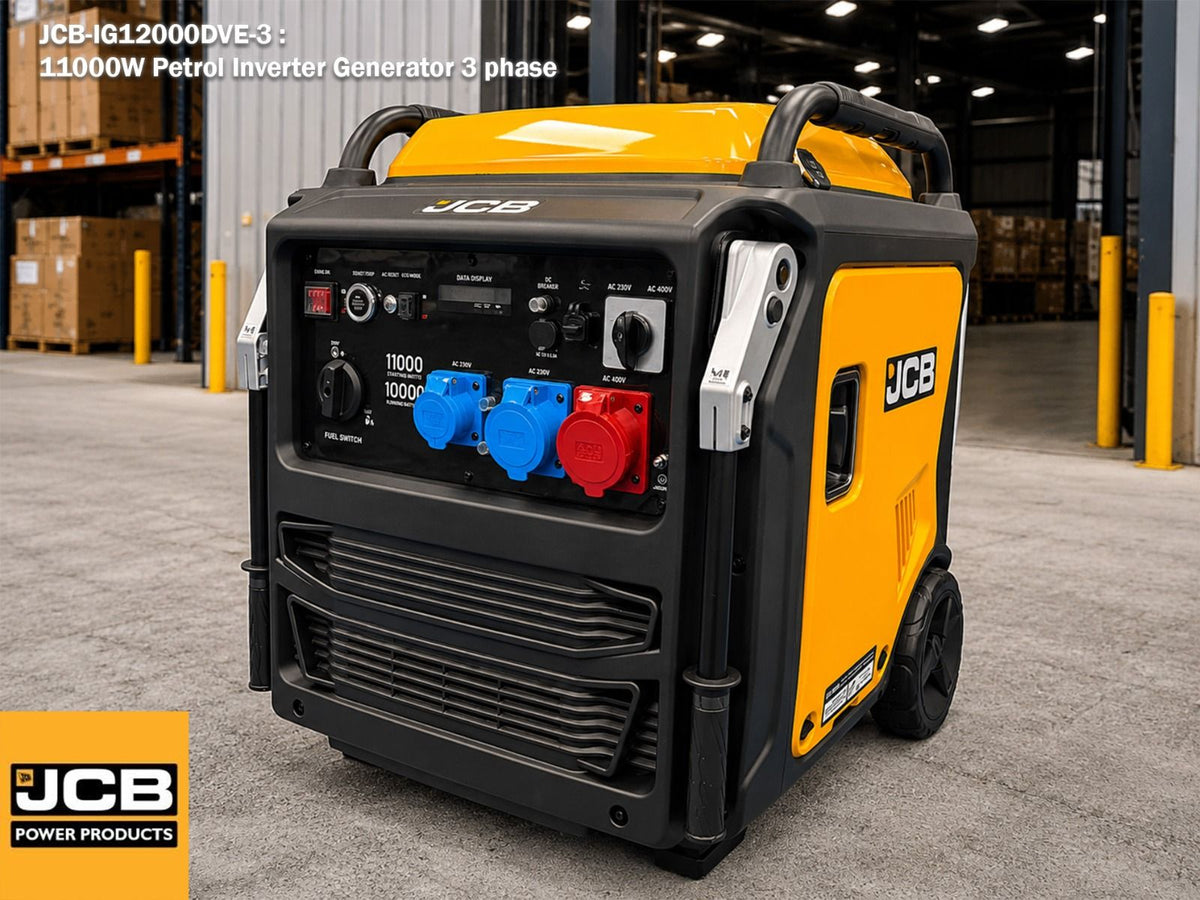

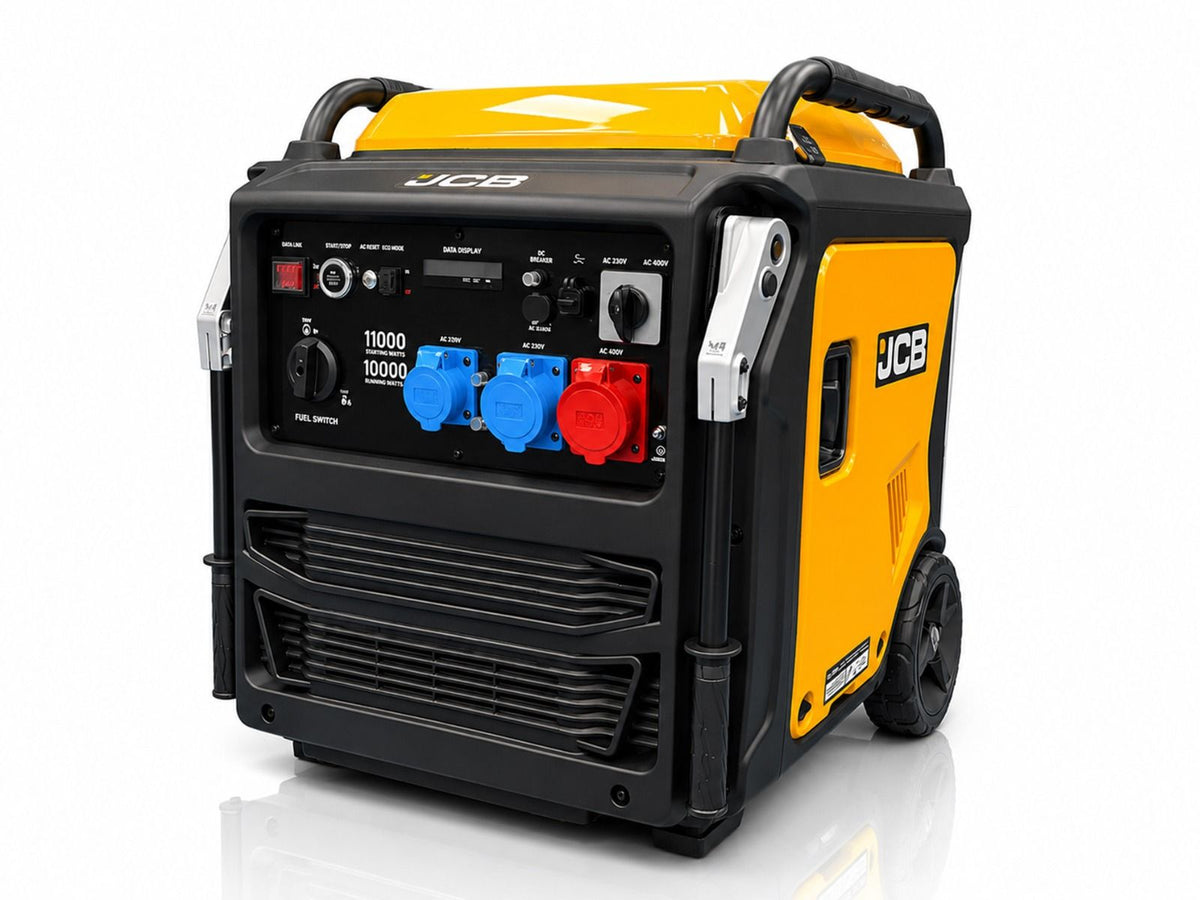

The JCB IG12000DVE-3 is intended for temporary electricity where equipment requires 400V three-phase as well as access to 230V supply. Its stated 10,000W rated and 11,000W peak figures describe the generator overall; they must not be assumed available from a single 230V phase.
The 550cc four-stroke engine has electric and recoil starting, and the specifications list both 230V and 400V outputs. The model also has 12V DC and USB connections and a 32-litre fuel tank.
This 105kg machine needs to be selected around the phase requirements and distribution of the connected loads. Confirm usable per-phase capacity and socket details before operating single-phase equipment from a three-phase set. Operate outdoors away from doors, windows and ventilation openings. Never backfeed a building; connection to premises needs a qualified electrician and suitable changeover equipment.
Key features
- 10,000W rated; 11,000W peak overall

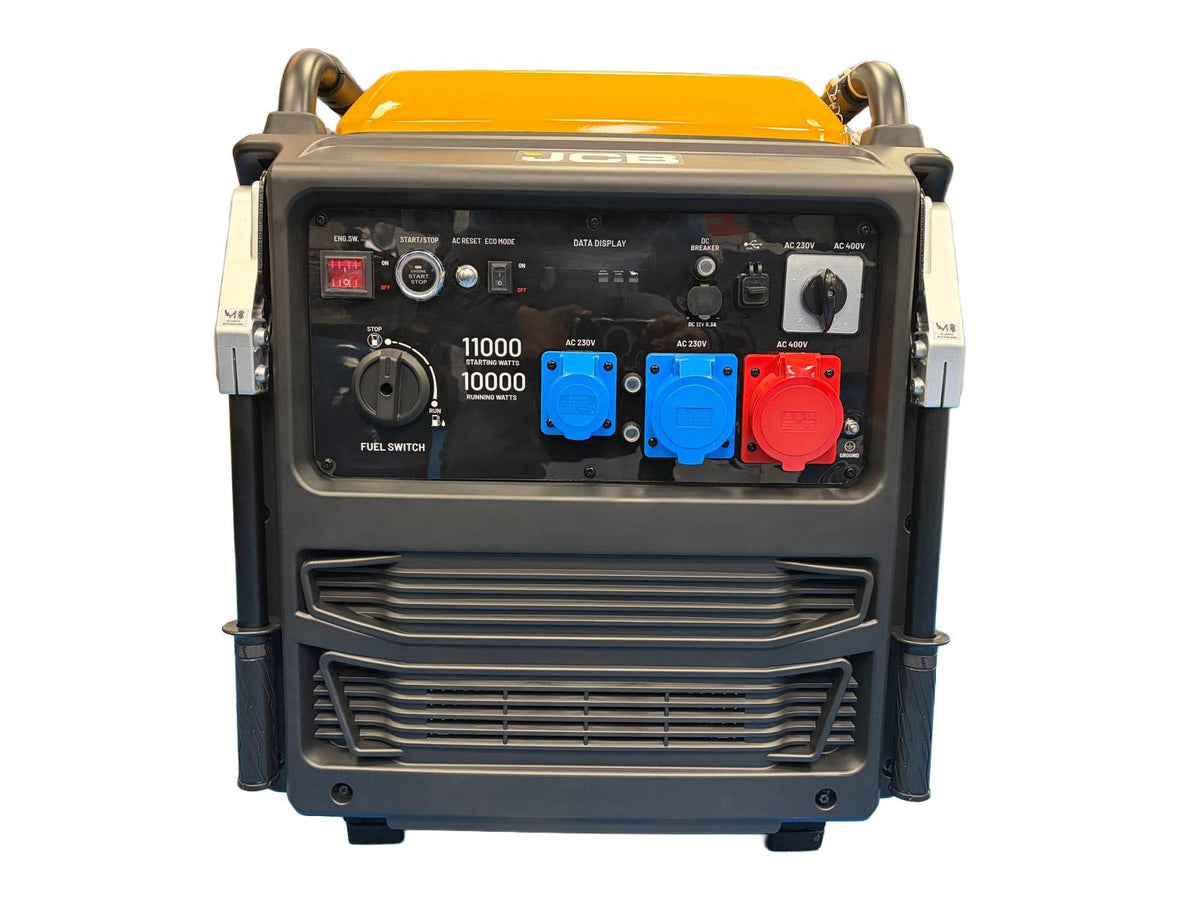

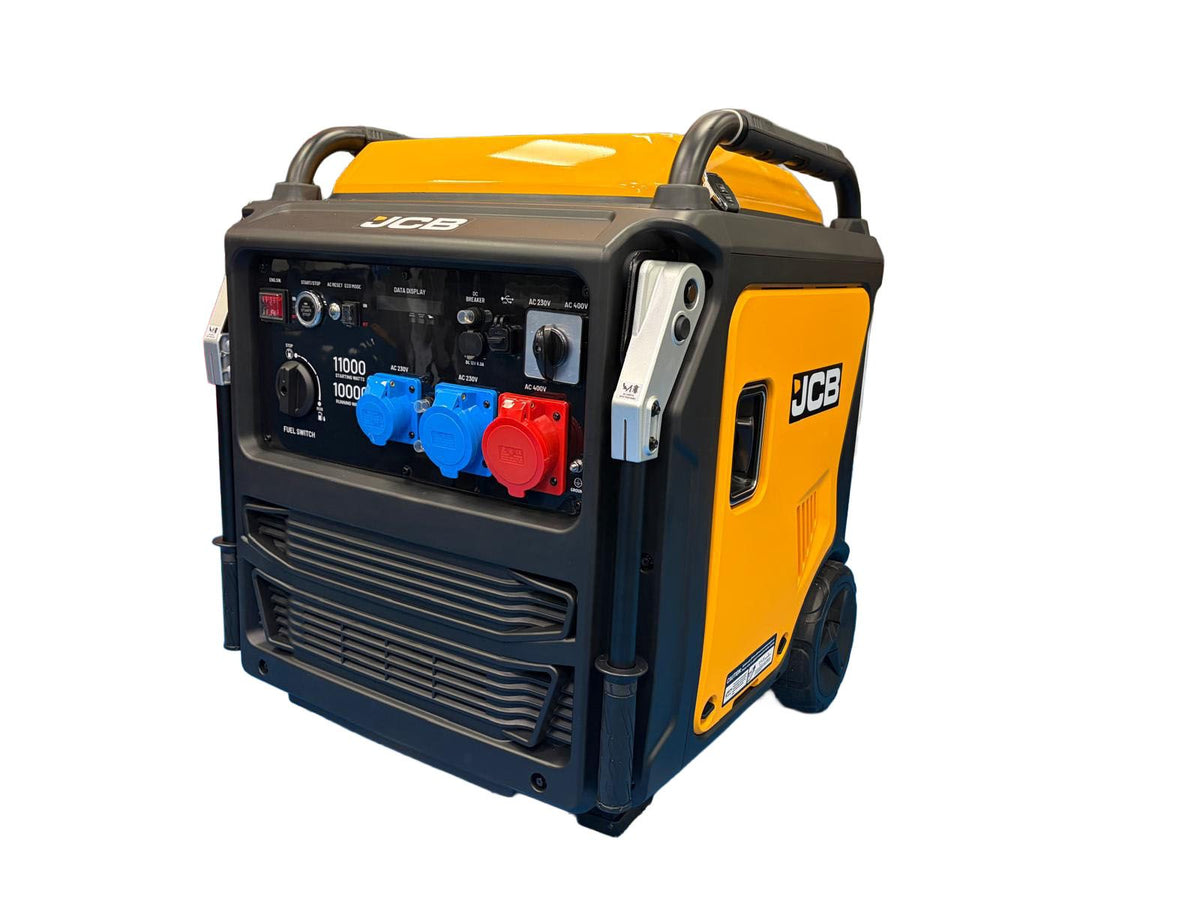

- 400V three-phase and 230V outputs
- 550cc petrol engine

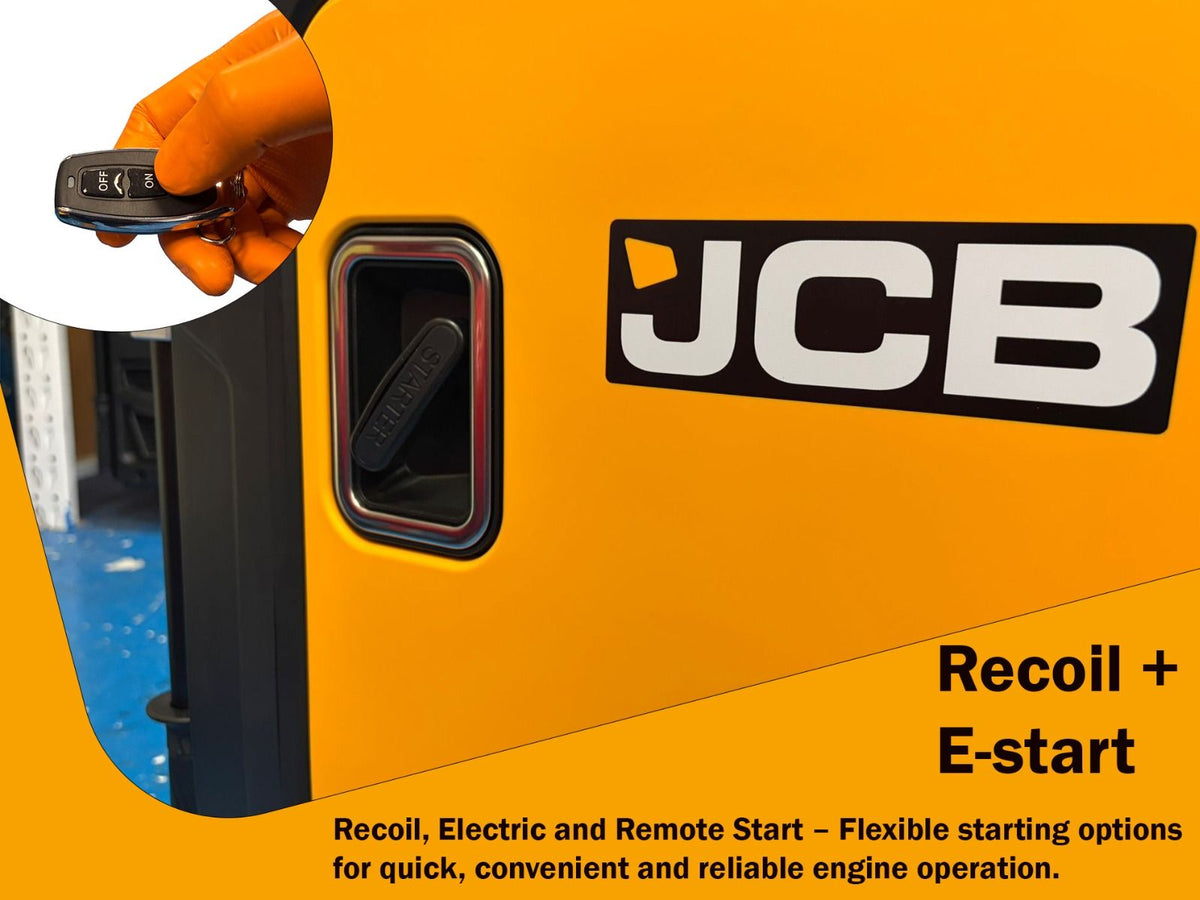

- Electric / recoil start
- 12V DC and USB connections

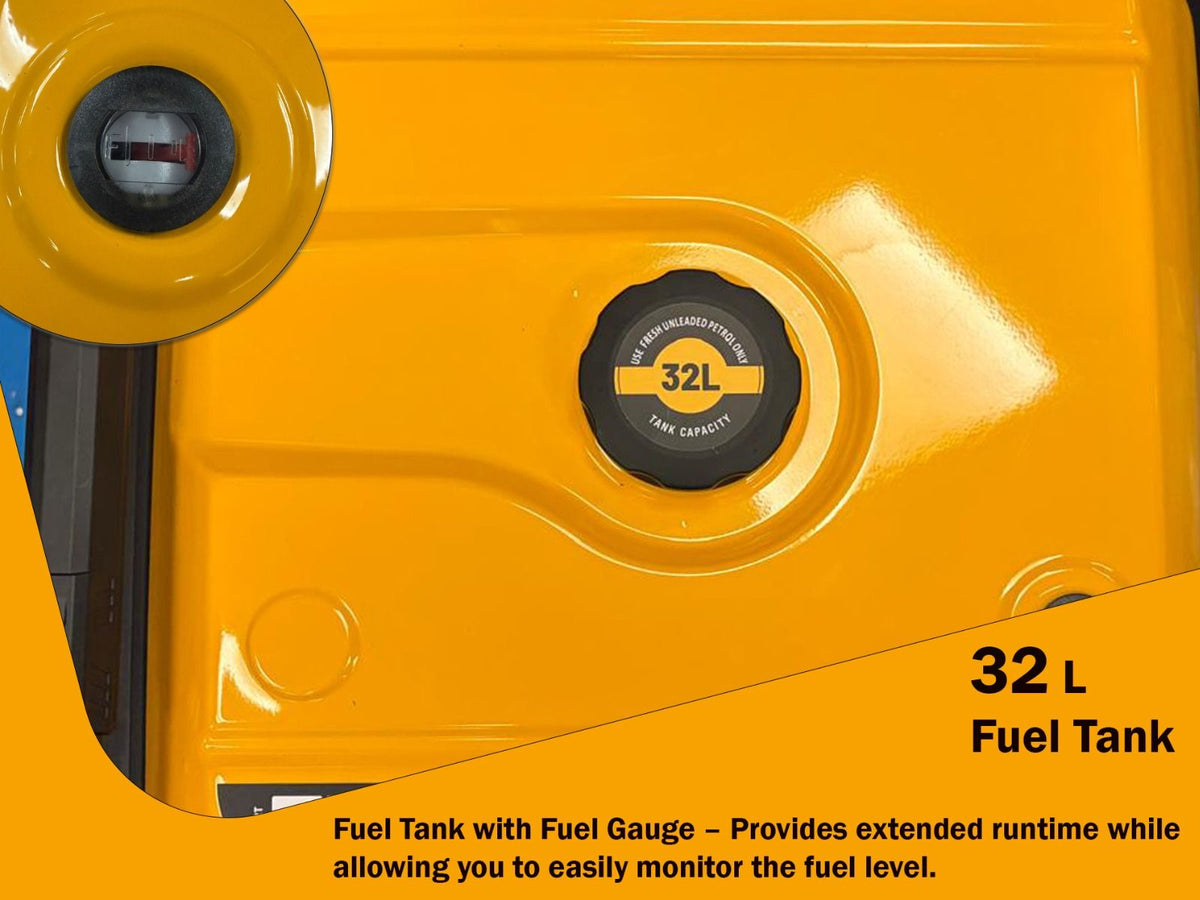

- 32L tank
Specifications
| SKU | JCB-IG12000DVE-3 |
|---|---|
| Fuel | Petrol |
| Rated output (overall) | 10,000W |
| Peak output (overall) | 11,000W |
| Output voltages | 230V / 400V |
| Phase | Three-phase model with 230V output |
| Frequency | 50Hz |
| Stated rated current | 43.5A / 14.5A by output |
| Engine | 550cc four-stroke |
| Starting | Electric / recoil |
| Fuel tank | 32L |
| Net weight | 105kg |
| Dimensions (L × W × H) | 680 × 670 × 770mm |
