Description

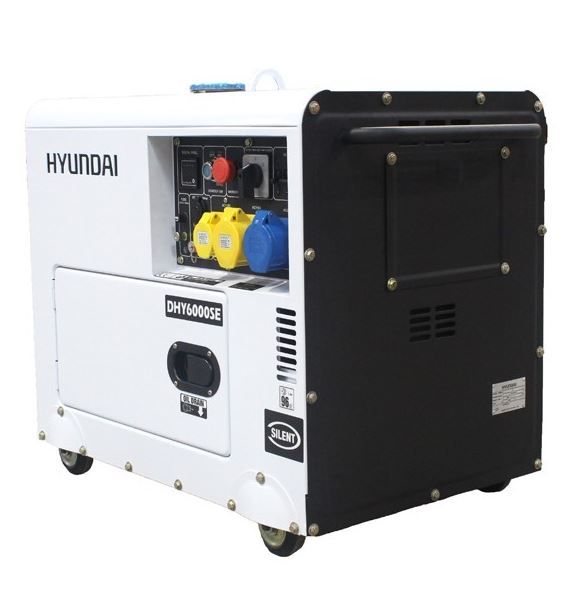

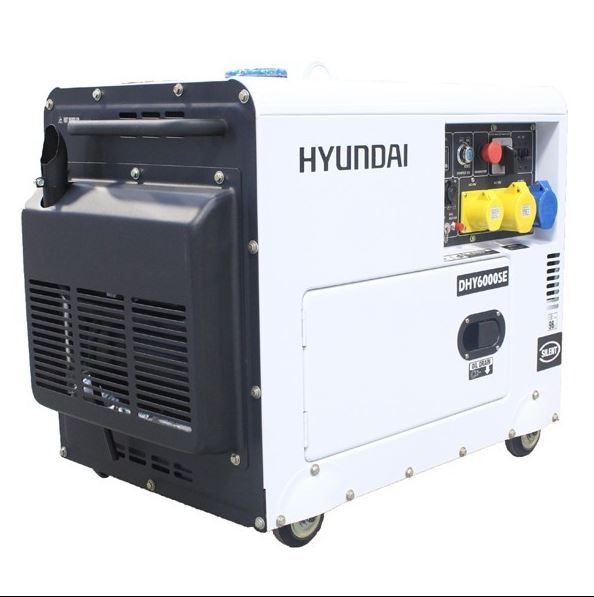

The Hyundai DHY6000SE is a compact enclosed diesel generator for outdoor standby and temporary power applications. Its specified 5.2kW maximum output should be distinguished from a continuous rating, which is not separately confirmed in the supplied information.
The D420 four-stroke diesel engine has electric starting, AVR voltage regulation and an automatic low-oil shutdown. A 16-litre fuel tank supports a stated runtime of up to 16 hours at 50% load, with a sound-attenuating canopy to reduce operating noise.

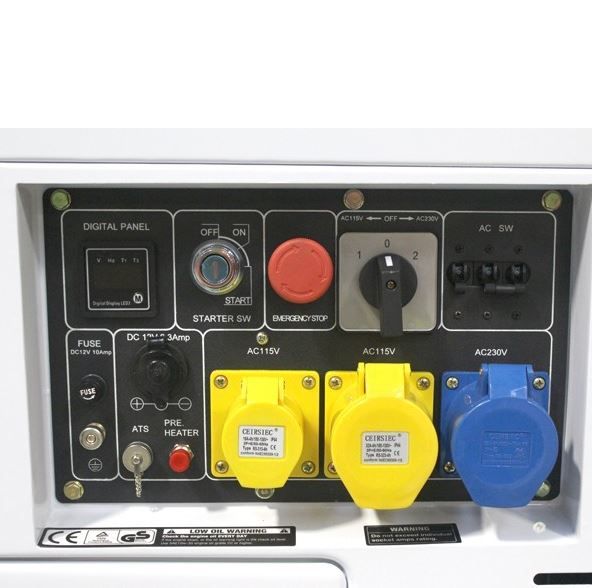

The connection panel includes 115V 16A and 32A sockets and a 230V 32A socket. Optional ATS compatibility is documented, but the transfer switch is not included. Operate outdoors away from doors, windows and ventilation openings. Never backfeed a building; connection to premises needs a qualified electrician and suitable changeover equipment.
Suggested generator accessory
Optional Automatic Transfer Switch: For compatible single-phase standby installations, the 100A Compact Automatic Transfer Switch Kit is available as a separately sold accessory. It enables automatic mains/generator changeover when correctly integrated with supported generator controls. A qualified electrician must confirm compatibility and carry out the installation.
With the correct ATS standard module fitted inside the generator, the DHY6000SE can receive start/stop requests through a matching external cable and controller. A compatible Solis hybrid model with generator-control support may request starting below a configured battery state of charge (SOC) threshold and stopping at recovery, depending on operating mode and generator readiness. Start/stop control does not transfer the house supply. A qualified electrician must check phase, voltage, frequency and inverter input limits, design separate AC connection and transfer/isolation, and commission the complete installation.
Key features
- 5.2kW stated maximum output
- Diesel generator in acoustic enclosure
- 115V and 230V sockets
- Electric starting and AVR
- 16L fuel tank
- ATS compatibility; transfer switch separate
- Inverter Friendly – Automatic-start integration with compatible hybrid systems requires a separately supplied ATS module and controller accepting inverter start requests.
Specifications
| SKU | DHY6000SE |
|---|---|
| Fuel | Diesel |
| Maximum output | 5.2kW / 6.5kVA |
| AC voltage | 115V / 230V |
| AC sockets | 1 × 115V 16A; 1 × 115V 32A; 1 × 230V 32A |
| Engine | Hyundai D420 four-stroke diesel |
| Starting | Electric |
| Fuel tank | 16L |
| Runtime at 50% load | Up to 16 hours (stated) |
| Voltage regulation | AVR |
| Low-oil shutdown | Yes |
| ATS | Compatible; not included |
| Automatic Start Compatibility | ATS-interface starting. ATS standard module fitted internally; matching external cable and controller must accept the compatible inverter’s dry-contact start/stop requests. Mains-failure sensing alone does not provide SOC control. |
Downloads
Manufacturer videos
How to Change the Brushes on a DHY6/8000SE/LR Hyundai Diesel Generator
Diagnosing No Output on your Hyundai 3000rpm Generator (DHY6000SE, DHY8000SELR, DHY8000SELR-T)
