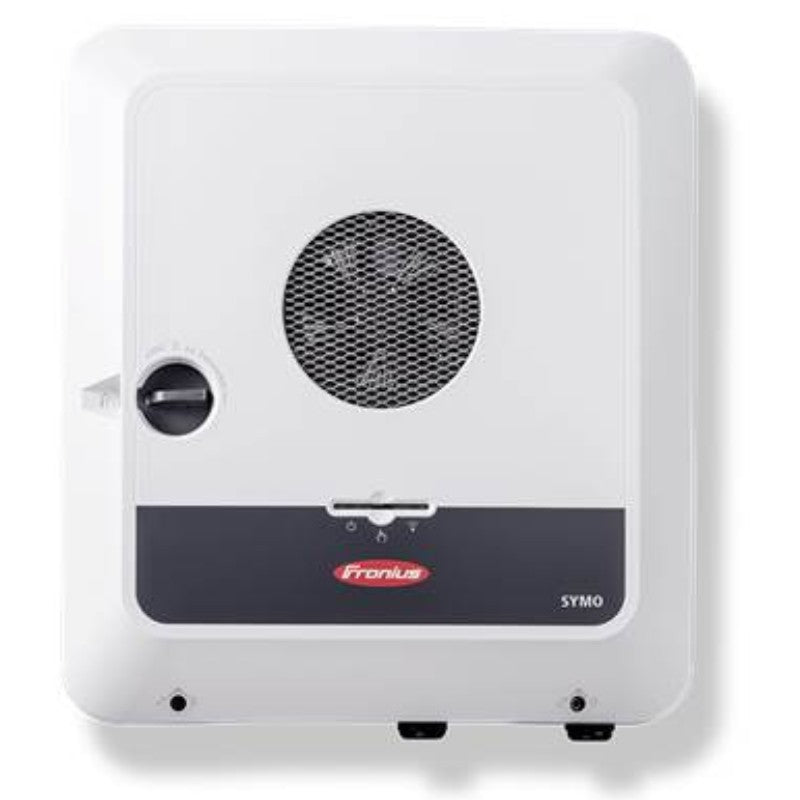

Fronius Symo GEN24 8.0kw

Description

The Fronius GEN24 allows the most flexibility for residential customers on the market. This 1ph hybrid can be run with or without batteries which makes it perfect for any customers interested in battery storage but looking to wait a bit before they take the plunge. With or without batteries the GEN24 plus has a new feature called 'PV point' which allows a 3 pin plug to provide backup power direct from the solar panels in the event of a blackout.

The GEN24 Plus leaves very little to be desired with numerous features such as energy management functions, WLAN connection as standard, Ethernet connectivity and easy integration of third-party components. Thanks to a selection of backup power options (PV Point, full backup) in particular, it ensures the highest degree of power supply reliability.

Features

Backup power when the sun is shining

• PV Point integrated basic backup power function
• Supply of up to 3 kW via a socket
• Battery connection and Full Backup can be retrofitted at any time with
• Fronius ­­UP.storage
• Fronius UP.storage
• For those who still can’t decide: With the Fronius UP.storage* software upgrade for the Fronius GEN24, the existing device can be retrofitted with a battery connection at any time, including the Full Backup option.**
• Fronius Solar.Web
• With Solar.web, you can always keep an eye on your electricity consumption. All the information you need is available anytime, anywhere and you will be notified of any important events.-----Did you know you can design your PV System with Fronius?! Fronius Solar.creator - the perfect design tool! Dimension your photovoltaic system using the latest solar modules and all available Fronius inverters!
• See for yourself! - Fronius Solar.creator
• AC attributes
• Max power
• 8000W
• Max current
• 16.4A
• Number of phases
• 3
• EPS power
• 3kW PV point
• DC attributes

Panels

• Number of MPPT
• 2
• V range of MPPT
• 80 - 800V
• Max power Max current
• 12000W 25A/12.5A
• Max voltage
• 800V
• Start up voltage
• 80V

Technical Specifications

Additional Notes

• 8000W
• Max current
• 16.4A
• Max power Max current
• 12000W 25A/12.5A
• Max voltage
• 800V
• Max efficiency
• 97.6%
• Built in protection
• Possible using meter
• Warranty (extensions)
• 10 years (15 years extensions available)
• Dynamic peak manager for accurate MPP tracking
• Active cooling
• PV point

Downloads

• Datasheet
• Certificate
• Brochure
