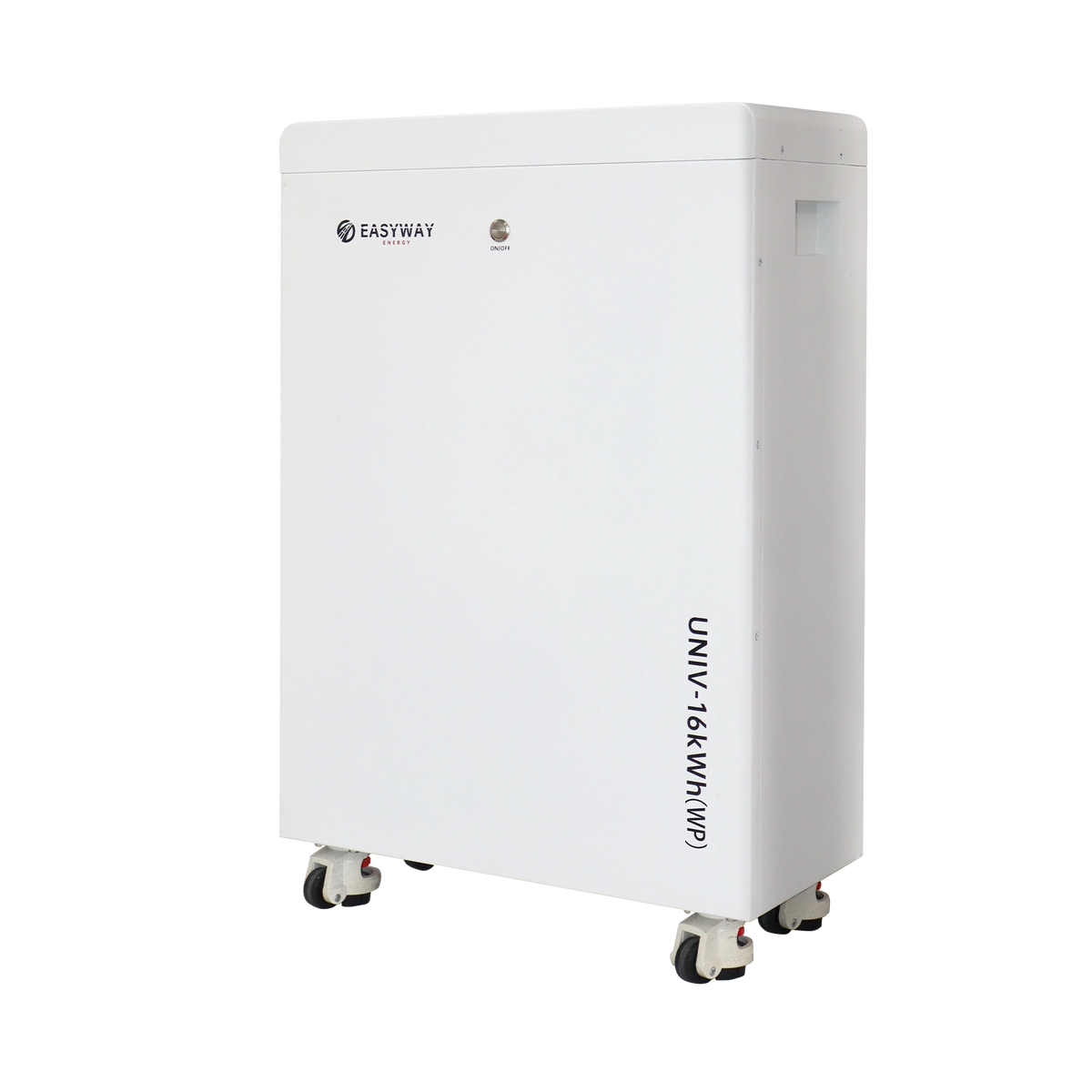

Easyway
16.08kWh battery.

Nominal / usable energy

16.08 / 15.11kWh

Chemistry / nominal voltage

LiFePO4 / 51.2V

Battery capacity

314Ah

Operating voltage

44.8–57.6V

Recommended charge / discharge current

157A / 157A

Maximum charge current

157A

Maximum discharge current

200A (manufacturer rating)*

Charging with integrated heating

−20°C to +55°C; cells prewarm before charging below 0°C

Charging without heating

0°C to +55°C

Discharge temperature

−20°C to +55°C

Communications

CAN / RS485

Parallel expansion

Up to 20 units, subject to system design

*200A is the manufacturer’s maximum discharge rating, not the normal operating setting. Configure routine charging and discharging at no more than 157A, subject to the written warranty and installer’s limits. Heater-assisted charging below 0°C requires prewarming, charging power and normal inverter communication.

Width × height × depth

525 × 720 × 245mm

Weight

Approx. 117kg

Enclosure

IP65

The IP65 rating does not remove the manufacturer’s installation-location, temperature, clearance or condensation requirements. Professional handling and installation are required.

Delivery options are shown at checkout. Free warehouse collection is available after stock arrives. For pre-orders, full payment is taken at checkout; stock is expected on 10 November 2026. Dispatch and collection arrangements follow arrival.

The SolarBoss supplied configuration includes a 10-year warranty and 8,000 warranted cycles, subject to the applicable written warranty terms, retained-capacity limits and operating conditions. Ask SolarBoss for the full written terms before purchase. Electrical installation and commissioning are additional and must be completed by an appropriately qualified installer. Confirm your inverter model and firmware with SolarBoss before ordering.
