Description
Overview
The SmartSolar range from Victron Energy is the latest range with in-built Bluetooth connectivity.
Description

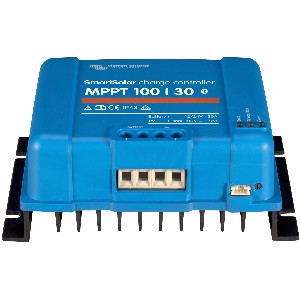

An MPPT regulator from the SmartSolar range, manufactured by Dutch company Victron Energy - one of the market leaders in solar power electronics equipment. This 30A MPPT charge controller is capable of providing significantly more power to a battery bank from the solar array, compared to conventional PWM charge controllers, in addition to maximising the battery lifespan.
The MPPT regulator is effectively a dynamic DC-DC converter which constantly adjusts and optimises the voltage output from the solar array, which can vary considerably, in order to provide a constant charging voltage for the batteries - which improves their lifespan and equates to lower power losses in the system.
For unbeatable performance and real-time monitoring, it has a built-in bluetooth wireless dongle.
Features
Ultra-fast Maximum Power Point Tracking (MPPT)
Advanced Maximum Power Point Detection in case of partial shading conditions
Load output on the small models
BatteryLife: intelligent battery management by load shedding
Automatic battery voltage recognition (12/24V)
Flexible charge algorithm
Over-temperature protection and power de-rating when temperature is high.
Specifications
Max Open Circuit Voltage: 100V
Max PV input at 12V: 440W
Max PV input at 24V: 880W
Max Battery Charge Current: 30A
Dimensions: 130 x 186 x 70 mm
Weight: 1.25kg
Warranty: 5 years
SCC110030210
