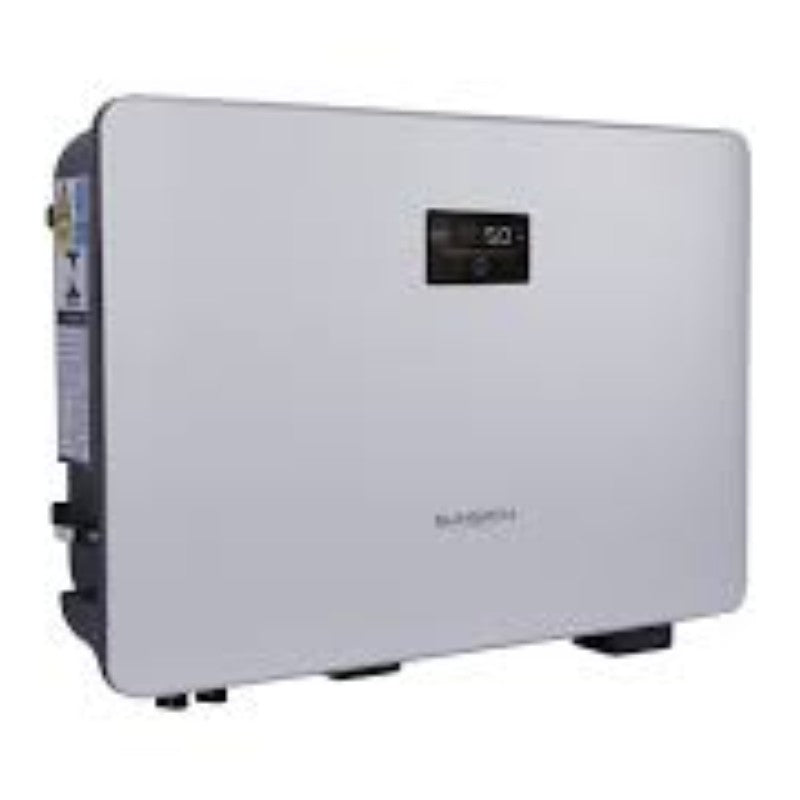

Sungrow SH6.0RS 6kW Single Phase Hybrid Inverter **CLEARANCE**

Overview

Residential Hybrid Single Phase Inverter

Description

The Sungrow SH range of residential hybrid single-phase inverter offers a superb quality system with smart management real-time data, plug and play installation, ideal for both retrofit and new installations.

AC attributes

DC attributes

Max power

6000W

Number of MPPT

2

Max current

27.3A

V range of MPPT

40 - 560V

Number of phases

1

Max power

13000W

Max current

16A

Max voltage

600V

Start up voltage

50V

Features-

Plug-and-play installation

iSolarCloud monitoring is available on App and Web

Lightweight and compact, optimized for heat dissipation

Seamless transition to backup mode, for protection against power outages

Fast Charging or discharging, enabling higher self-consumption results

Built-in EMS with advanced customization

NOTE: When the inverter and batteries are installed more than 15 meters away from the main consumer unit, it will be necessary to use the 3-phase Sungrow meter.

Downloads

• Datasheet
• Warranty
• Manual
• EN50549
• Quick Guide V2
