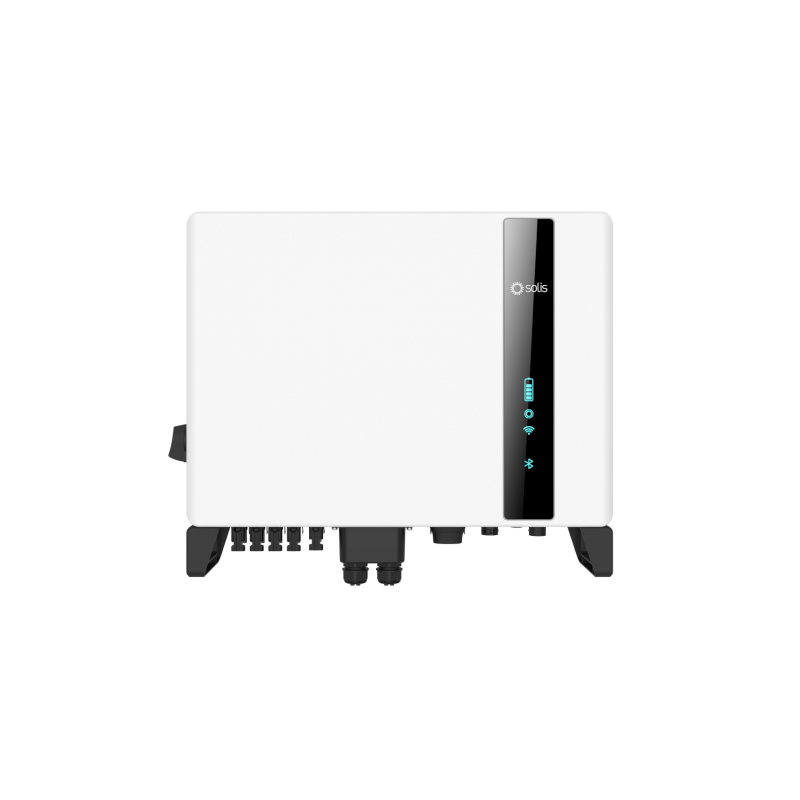

Solis S6 8kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)

Overview

Solis S6 8kW 3 Phase Hybrid Inverter with DC - 4 MPPT for HV Batteries (WIFI/LAN)
The Solis hybrid inverter offers flexibility in module design with its 4 MPPT. High currents make this compatible with modern high power modules. This Solis Hybrid Inverter has an integrated switching device for backup power. This allows selected loads to continue to be supplied with backup power in the event of grid failure.
Integrated switching device for backup power
Great flexibility with 4 MPPT
Parallel connection of up to 10 hybrid inverters via RS485
High input current of 16A
AFCI function integrated

Description

Product features
Mains connection: 3-phase
AC output: 8 kVA
8 kW emergency power output via separate output
MPP tracker: 4 with 1 string output each
Max. short circuit current per MPPT: 24 A
Max. input current: 16 A
Communcations: CAN, RS485, Wi-Fi
3-phase smart meter with 3 current transformers included
Incl. WiFi+LAN kit
Protection category: IP66
Warranty: 5 years

Features

• Manufacturer
• Solis
• Phases
• 3 Phase
• Inverter Application
• Residential
• Power Rating kW
• 8
• Inverter Type
• Hybrid Inverter
• No. of MPPT
• 4
• Commodity Code
• 85044086
• Dimensions (mm) (H x W x D)
• 600 x 500 x 230
