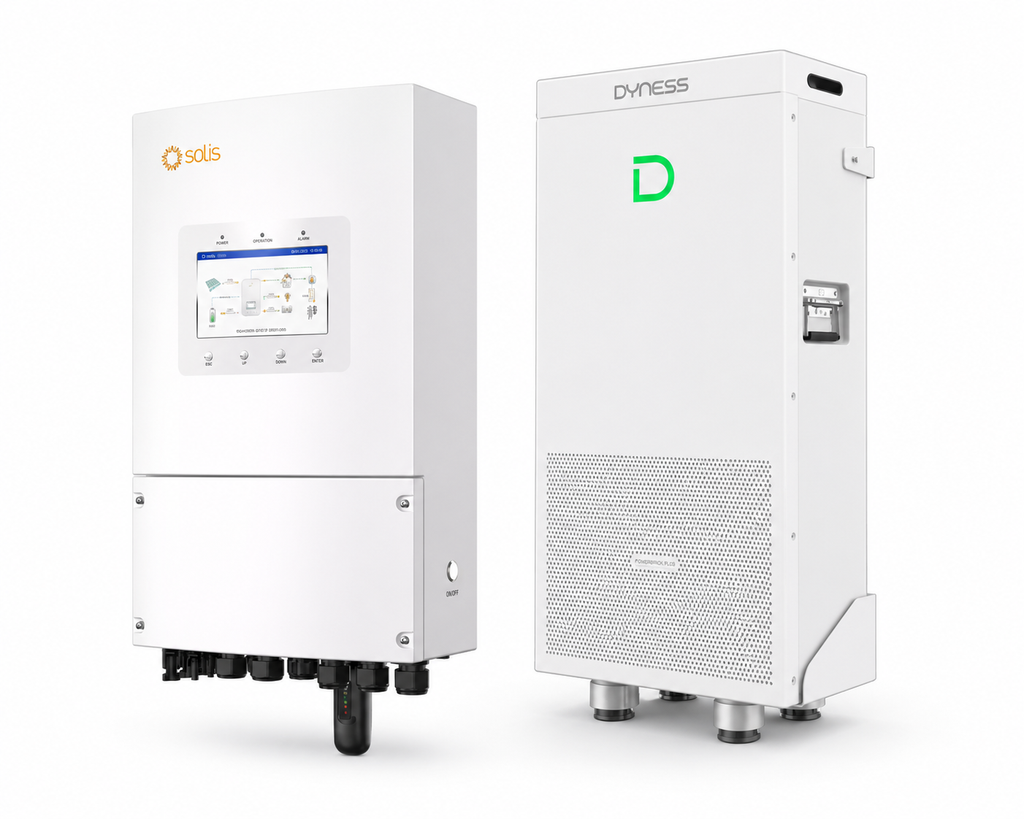

Solis 5kW Hybrid Inverter + Dyness 16.07kWh Battery Storage Bundle

A powerful and future-proof energy storage solution combining the advanced Solis S6-EH1P5K-L-PLUS 5kW Hybrid Inverter with the high-capacity Dyness PowerBrick Plus 16.07kWh LiFePO₄ Battery. Ideal for larger residential installations, retrofit battery upgrades, and customers looking to maximise self-consumption and energy independence.

Included in the Kit

Solis S6-EH1P5K-L-PLUS Hybrid Inverter – 5kW

• Single-phase hybrid inverter with 5kW AC output
• Supports up to 10kW recommended PV array size
• 2 MPPTs for flexible solar array design
• Compatible with low-voltage batteries (40V–60V)
• <10ms UPS-level backup switching for critical loads
• Supports self-consumption, time-of-use charging and export control
• Generator integration and smart load management
• Parallel operation of up to 6 units for future expansion
• Full remote monitoring via SolisCloud
• IP66-rated enclosure for indoor and outdoor installation
• Backed by a 10-year manufacturer warranty

Dyness PowerBrick Plus Battery – 16.07kWh

• 16.07kWh nominal capacity
• 15.27kWh usable capacity
• Premium Lithium Iron Phosphate (LiFePO₄) chemistry
• High-capacity 314Ah cells for exceptional longevity
• Supports up to 200A charge/discharge current
• 95% depth of discharge (DoD)
• Built-in intelligent BMS with seamless Solis compatibility
• IP65-rated for indoor or outdoor installation
• Floor-standing or wall-mounted installation options
• Integrated fire suppression system for enhanced safety
• Over 8,000 cycles design life
• 10-year manufacturer warranty
• Expandable with up to 50 batteries in parallel

Ideal For

• Homes with high evening electricity usage
• Customers on smart tariffs looking to maximise off-peak charging
• Solar PV systems requiring large-capacity battery storage
• Retrofit battery installations and new solar projects
• Backup power applications for essential household circuits

Key Benefits

✓ Store excess solar generation for use day and night
✓ Reduce reliance on rising electricity prices
✓ Take advantage of off-peak electricity tariffs
✓ Reliable backup power during grid outages
✓ Scalable system ready for future expansion
