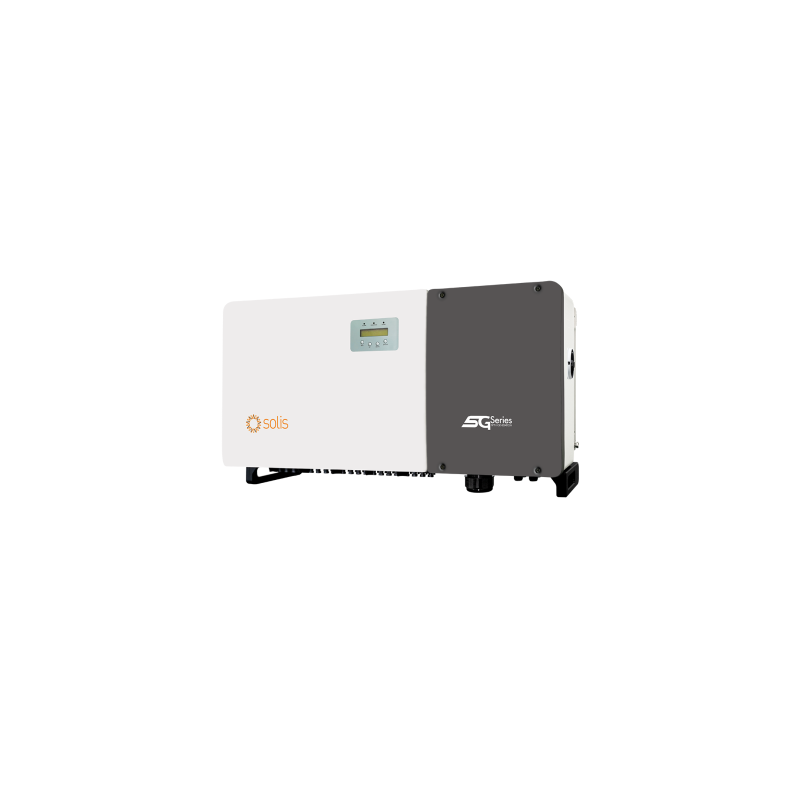

Solis 5G 50kW Low Voltage Solar Inverter - 3 Phase with DC - S5-GC50K-LV

Efficient
• 6/8 MPPTs, max. efficiency 98.5%
• >170% DC/AC ratio
• High power tracking density 130MPPT/MW
• Compatible with bifacial modules

Safe
• AFCI protection, proactively reduces fire risk
• Built-in PID recovery for better module performance (optional)
• Type I SPD for AC (optional)
• Overvoltage load reduction and leakage current suppression  technology, low failure rate
• Globally recognised branded componentry for longer life

Smart
• Night SVG function
• Intelligent string monitoring. Smart I-V curve diagnosis
• Remote firmware upgrade with simple operation

Economic
• Power line communication (PLC) (optional)
• Support "Y" type connection in DC side
• Supports aluminium wire access to reduce cost

Specification

• Manufacturer: Solis
• Phases: 3 Phase
• Inverter Type: String Inverter
• Built in DC: Yes
• Built in Communication: Optional
• Commodity Code: 85044030
• Dimensions (mm) (H x W x D): 567 x 1065 x 344.5

Please select an item below to download

EN - Solis 3PH LV Range (50-60)kW 5G - Technical Datasheet

S5-GC50-60K-LV MANUAL
