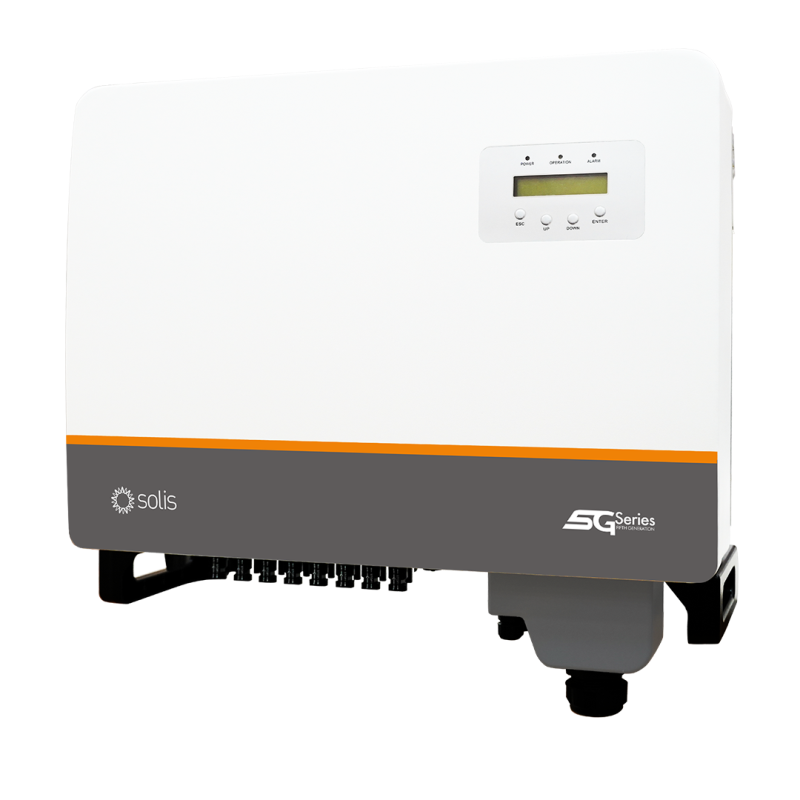

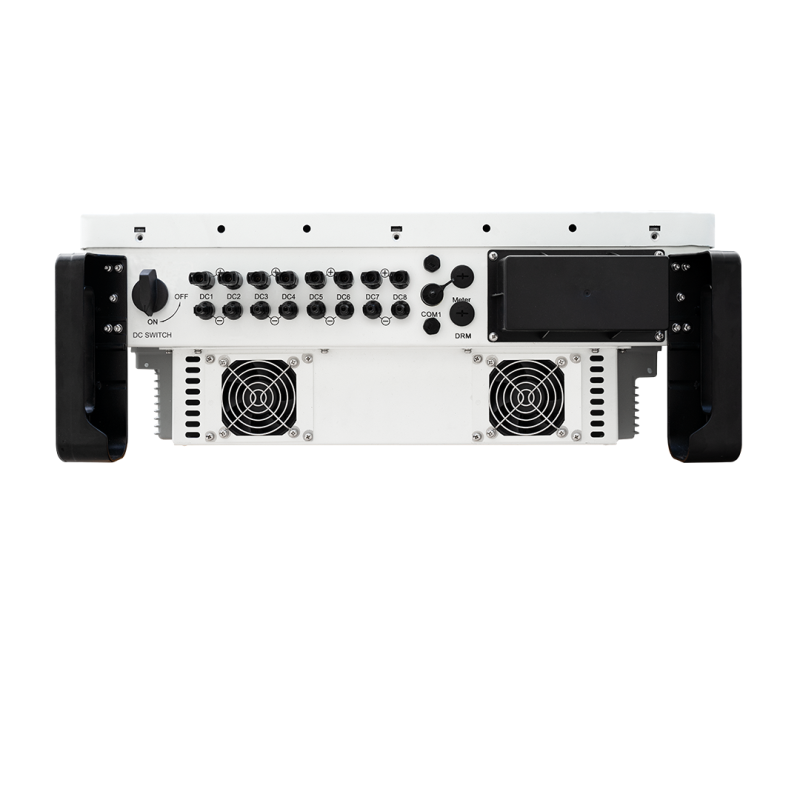

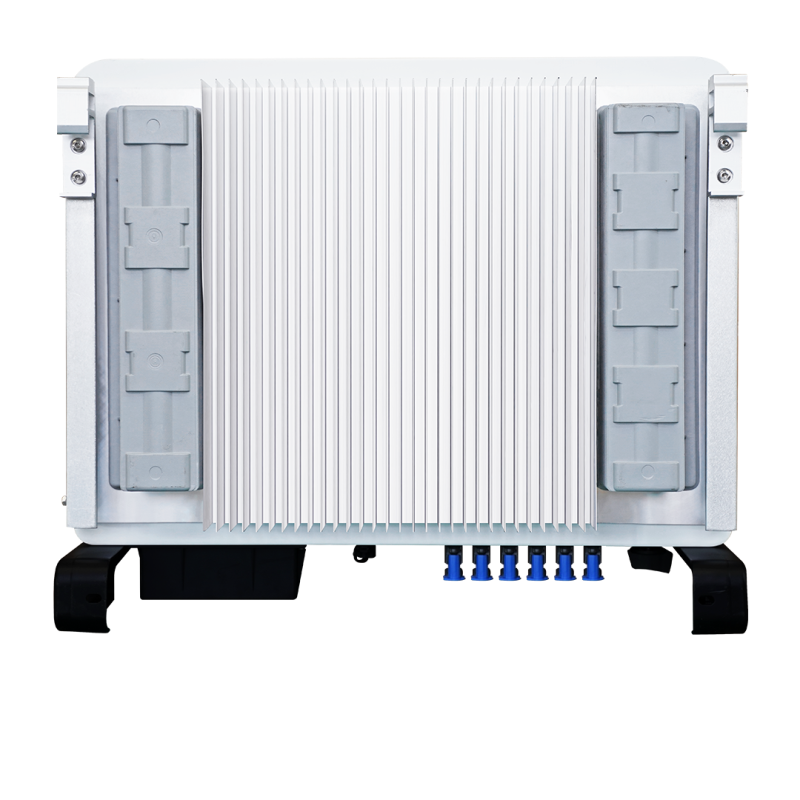

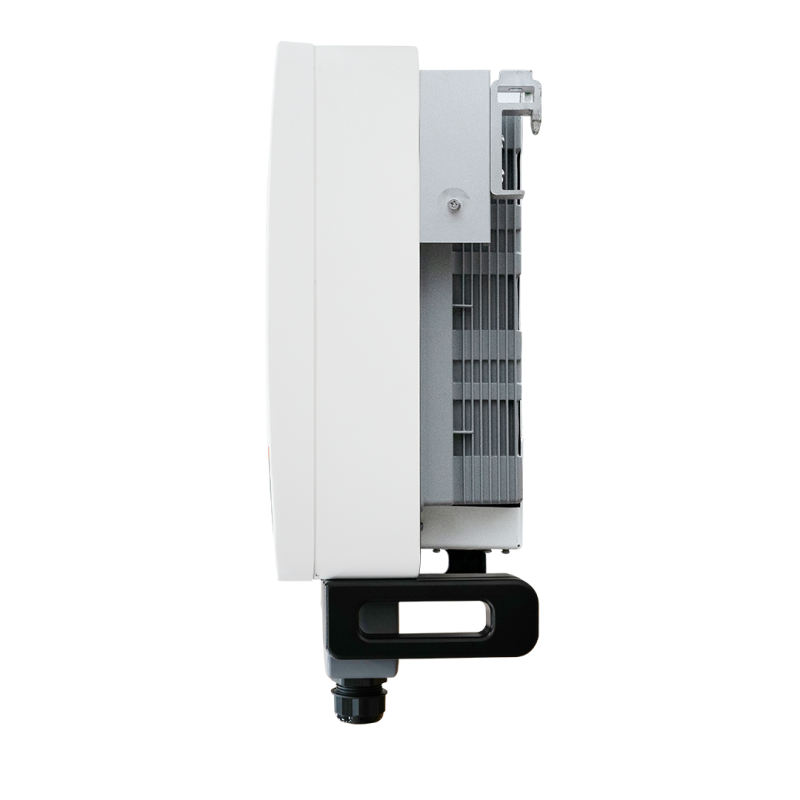

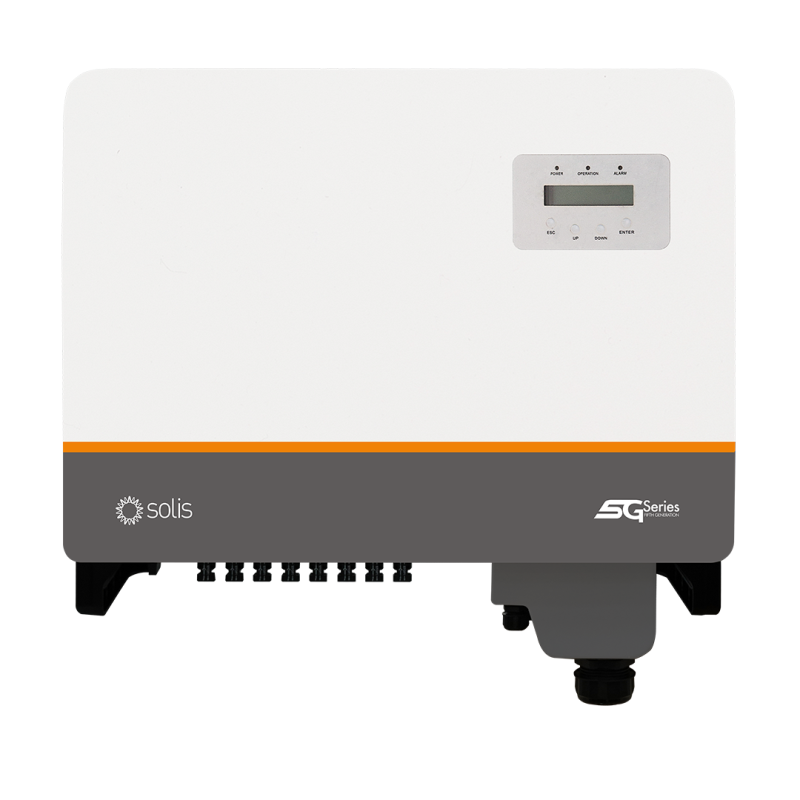

S5-GC(25-40)K three phase series string inverter adopt 3/4 MPPT design to provide a more flexible configuration scheme with a smaller environmental impact rate and higher generation efficiency.

S5-GC(25-40)K three phase series string inverter adopt 3/4 MPPT design to provide a more flexible configuration scheme with a smaller environmental impact rate and higher generation efficiency. Max. efficiency 98.7%

• IP66
• > 150% DC/AC ratio
• String current up to 16A
• Supports RS485, WiFi, GPRS
• Supports export power control
• Intelligent redundant fan-cooling
• Natural convection, Fan-less design
• Wide voltage range and low startup voltage
• Supports aluminium wire access to reduce cost
• AFCI protection, proactively reduces fire risk
• Intelligent string monitoring, smart I-V curve scan
• Natural convection, Fan-less design, longer lifespan
• Globally recognised branded componentry for longer life
• Supports high power modules for lower installation costs
• 3/4 MPPT design, supports multiple orientation system design
• Night time PID recovery function, increases overall system yield (optional)
• Scan to register on SolisCloud, supports remote upgrade and control
• Supports GPRS/WiFi communication with less wiring and reduced installation costs

Specification

• Manufacturer: Solis
• Phases: 3 Phase
• Power Rating kW: 40
• Inverter Type: String Inverter
• Built in DC: Yes
• No. of MPPT: 3
• Built in Communication: Optional
• Commodity Code: 85044030
• Dimensions (mm) (H x W x D): 629 x 647 x 252
