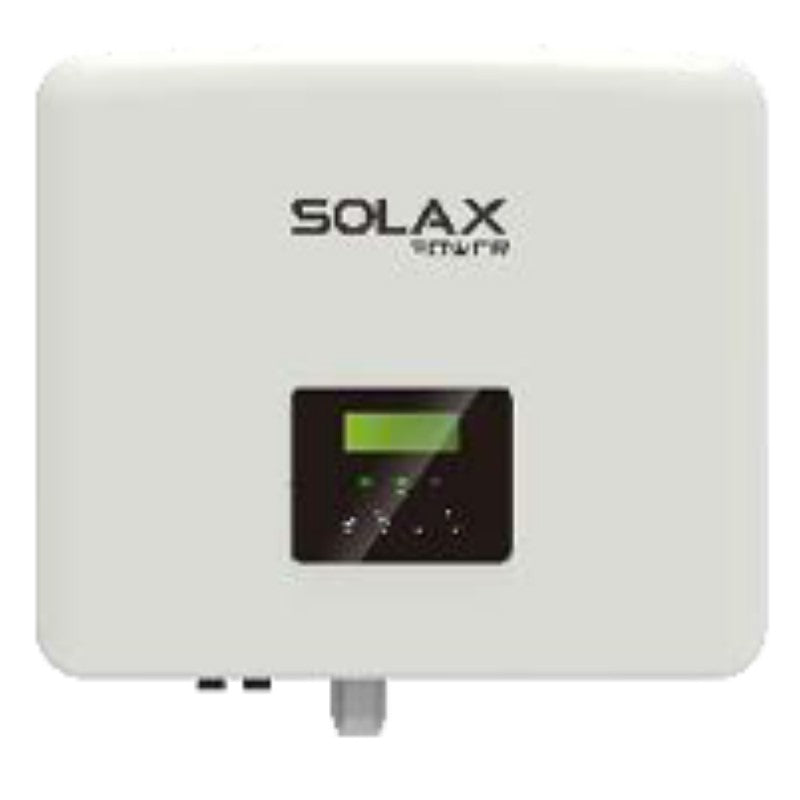

SolaX X1 G4.4 5kW Inverter Incl WIFI+LAN
Sale

SolaX X1 G4.4 5kW Inverter Incl WIFI+LAN

  • €979.31
Shipping calculated at checkout.
X1-Hybrid-5.0D G4.4
In Stock
17 available
Estimated Delivery : 1 Day

Out of stock Contact us to for back order

Expected

TO ORDER PLEASE CONTACT US

Minimum order: 1 units

Contact Us to Order

Description

Description

This is the 4th generation of the SolaX Hybrid range, retaining all the key features of the 3rd generation while making some welcome improvements.

The ground-breaking X-Hybrid is a 5kW inverter that can also store surplus energy in batteries for later use. It is important to understand that this is a hybrid solar PV inverter and battery storage controller. This means it needs to be sized just like a regular inverter would be and, if it is being retrofitted, will replace the existing inverter.

AC attributes

Features

Max power

  • 5000W

Max current

  • 23.9A

Number of phases

  • 1
  • DC attributes
  • Max power
  • 7500W
  • Max Isc current
  • 16A
  • Max voltage
  • 550V
  • Start up voltage
  • 90V
  • No. of MPPTs
  • 2
  • MPPT Range
  • 70-550V
  • Battery
  • Battery type
  • Li-ion
  • Battery voltage range
  • 80-480V
  • Charge / discharge current
  • 30A
  • Backup Terminal Parameters (AC)
  • Nominal AC output power
  • 5000W
  • Nominal voltage
  • 230V
  • Max. output current
  • 21.7A
  • Automatic switch time
  • 10ms

Technical Specifications

AC attributes Max power:
Number of phases : 1
DC attributes Max power
Start up voltage 90V
No. of MPPTs 2
MPPT Range 70-550V
Battery type 80-480V
Li-ion Charge / discharge current
Battery voltage range 30A
Nominal AC output power 5000W
Nominal voltage 230V
Automatic switch time 10ms
IP rating IP65
Weight 22kg
Dimensions 482*417*181mm
Key features Supports up to 150% oversizing
In-built EPS changeover switch Can work at full capacity down to -35C
On-grid and off-grid use Includes WiFi V3.0 Dongle

Additional Notes

  • 5000W
  • Max current
  • 23.9A
  • 7500W
  • Max Isc current
  • 16A
  • Max voltage
  • 550V
  • Battery
  • Backup Terminal Parameters (AC)
  • Max. output current
  • 21.7A
  • Max efficiency
  • 97.6%
  • 30A Charge/discharge capability
