Description
Description

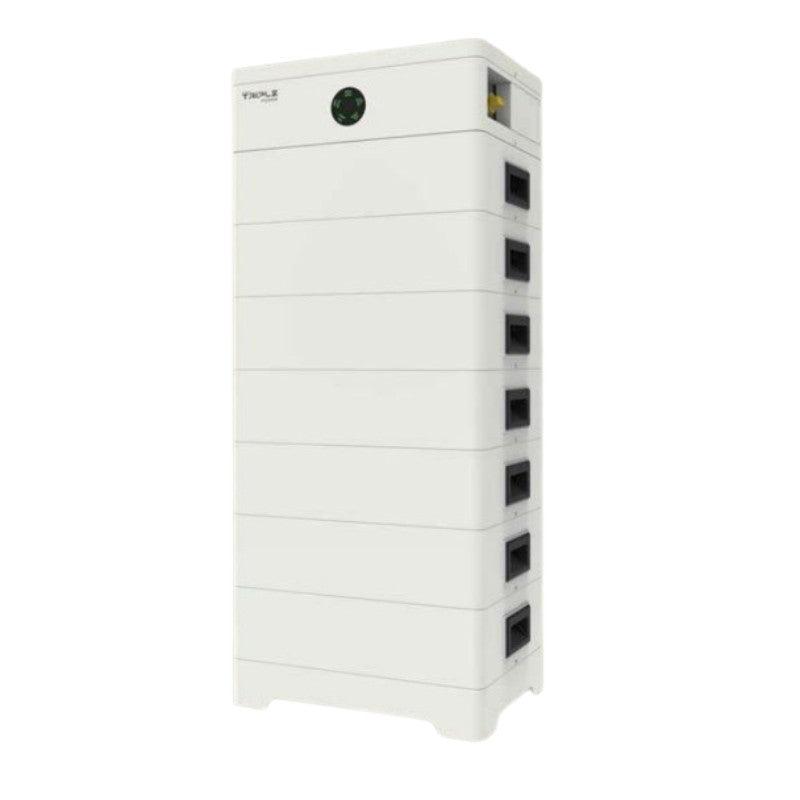

A 3.6kWh SolaX battery, featuring a maximum 50A charging/discharging rate and IP65 protection. Unique heating technology enables unrestricted charging and discharging even in frigid weather conditions, ensuring continuous operation. Plus, with a long cycle life of over 6000 cycles and a wide capacity range from 7.3kWh to 47.9kWh (2-13 batteries), our battery is designed to meet your energy needs. Installation is a breeze, with stackable modules and pre-wired cables, making it easy for a single person to set up. You can rely on our battery's soft start protection and the convenience of remote diagnosis and updates via the inverter, providing you with added peace of mind and efficiency.
BMU required for all systems.
Series box required with 10 or more batteries (two stacks).
Please look at the "1ph and 3ph differences" document in the "tell me more" section to see the differences between the two setups beyond 8 batteries!
Compatibile Inverters
X1 Hybrid G4 (2-8 batteries)
X3 Hybrid G4 (3-13 batteries)
X3 Hybrid G4 Pro (3-26 batteries (up to 13 per battery port))
X3 Ultra (3-26 batteries (up to 13 per battery port))
***Please ensure you look at the installation guide and the datasheet for information on the installation of these batteries! Depending on the number of batteries and your configuration, you may need to use more than one BMU, as well as Series box, and it is crucial you know how many you will need of each.
High Performance
Max. 50A continuous charging and discharging current
Unique battery heating technology, which is capable to work at low temperature
Safe and Reliable
Reliable LFP battery cell
IP65 for both indoor and outdoor installation
Soft start protecting batteries and inverters from a sudden surge
Cycle life > 6000 times
Flexibility
7.3-47.9kWh Wide capacity range (2-13 batteries)
Extendable during lifetime
Easy Installation
Stackable modules, Easy and fast for single person installation
Pre-wired communication cables for plug and play
Remote diagnosis and update via inverter
HS36 Battery (T-BAT-SYS-HV-S36 )
Features
Technical Specifications
| High Performance | Max. 50A continuous charging and discharging current |
|---|---|
| Unique battery heating technology, which is capable to work at low temperature | IP65 for both indoor and outdoor installation |
| Safe and Reliable | Soft start protecting batteries and inverters from a sudden surge |
| Reliable LFP battery cell | Cycle life > 6000 times |
Additional Notes
- Flexibility
- 7.3-47.9kWh Wide capacity range (2-13 batteries)
- Extendable during lifetime
- Easy Installation
- Stackable modules, Easy and fast for single person installation
- Pre-wired communication cables for plug and play
- Remote diagnosis and update via inverter
