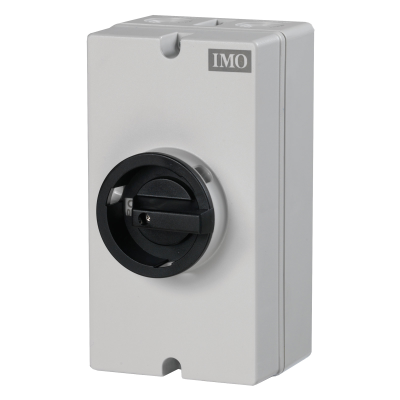

IMO DC Isolator 25A 1000VDC - 2 Pole
Sale

IMO DC Isolator 25A 1000VDC - 2 Pole

  • €58.20
Shipping calculated at checkout.
SI25-PEL64R-4S
In Stock
13 available
Estimated Delivery : 5-14 Days
Ships from Netherlands Warehouse

Out of stock Contact us to for back order

Expected

TO ORDER PLEASE CONTACT US

Minimum order: 1 units

Contact Us to Order

Description

Features

  • 25A 1000 VDC
  • IP66 Rated Enclosure
  • 2 Pole (Single String)
  • Grey Body With Black Handle

IMO Solar Isolators (SI) are specifically designed to interrupt the DC/AC Inverter from the solar panel array. Photovoltaic installations have to be equipped with DC Isolators in accordance with IEC 60364-7-712.

The IMO range of Solar Isolators features an operator-independent trigger ratchet, switching mechanism resulting in switching times of less than 5ms; high-reliability knife edge contacts and long arc cooling chambers ensuring safe and effective isolation of DC voltages within solar installations; and additional security with IMO's patented Safelock function.

Specification

  • Manufacturer : IMO Precision Controls
  • Accessory Product Type : Switchgear
  • Commodity Code : 85365080
  • Dimensions (mm) (H x W x D) : 180 x 98 x 107
