Huawei hybrid inverters directly compatible with their own Huawei Luna battery via the BMS (sold separately)
Description

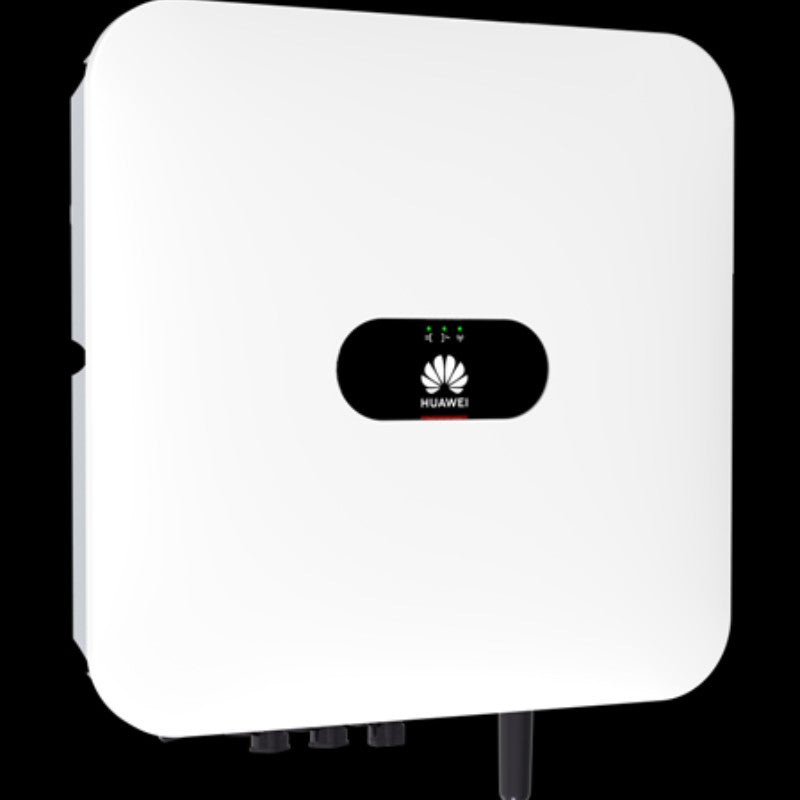

"Future-ready" single-phase string inverter Available in 8 and 10-kilowatt power classes. The output power can be fed into the grid, used to supply home appliances, or stored in LUNA2000 ESS batteries. The LC0 serves as the central component for PV-only systems, energy storage, backup, and intelligent energy management solutions. With its high efficiency, the HUAWEI SUN2000-8K-LC0 hybrid inverter ensures a very efficient solar system and thanks to integrated PID recovery and AFCI arc detection, it ensures the highest level of safety
AC attributes
Max power
8000W
Max current
45A
Number of phases
1
DC attributes
Features
Panels
- Number of MPPT
- 3
- V range of MPPT
- 40 - 560V
- Max power
- 9000W
- Max current
- 20A
- Max voltage
- 600V
- Start up voltage
- 50V
- Batteries-
- Luna-5/10/15-SO
- Luna-7-14-21-S1
Technical Specifications
| AC attributes | Max power |
|---|---|
| Number of phases | 1 |
| DC attributes | 3 |
| Panels | : V range of MPPT |
| Number of MPPT | 40 - 560V |
| Start up voltage | 50V |
| Batteries- | Luna-5/10/15-SO |
| IP rating | IP65 |
| AC and DC surge protection Type II, arc fault | Export limitations |
| Weight | 14.5kg |
| Dimensions | 425x376.5x15omm |
| Communication | RS485, WLAN, (Ethernet, 4G optional) |
| Performance data back-up | Smart I-V Diagnosis |
Additional Notes
- 8000W
- Max current
- 45A
- Max power
- 9000W
- 20A
- Max voltage
- 600V
- Luna-7-14-21-S1
- Max efficiency
- 98.4%
- Built in protection**
- Possible using CT or meter
- Warranty (extensions)
- 10 years
- Key features
- AI Self leaning new arc detection
- Real-time data at anytime and anywhere
