Huawei SUN2000-4KTL-L1 Smart Hybrid Inverter SP *DISCOUNT Phasing Out
Sale

Huawei SUN2000-4KTL-L1 Smart Hybrid Inverter SP *DISCOUNT Phasing Out

  • €739.52
Shipping calculated at checkout.
01075348 SUN2000-4KTL-L1
In Stock
8 available
Estimated Delivery : 1 Day

Out of stock Contact us to for back order

Expected

TO ORDER PLEASE CONTACT US
Contact Us to Order

Description

Overview

Huawei hybrid inverters directly compatible with their own Huawei Luna battery via the BMS (sold separately)

Description

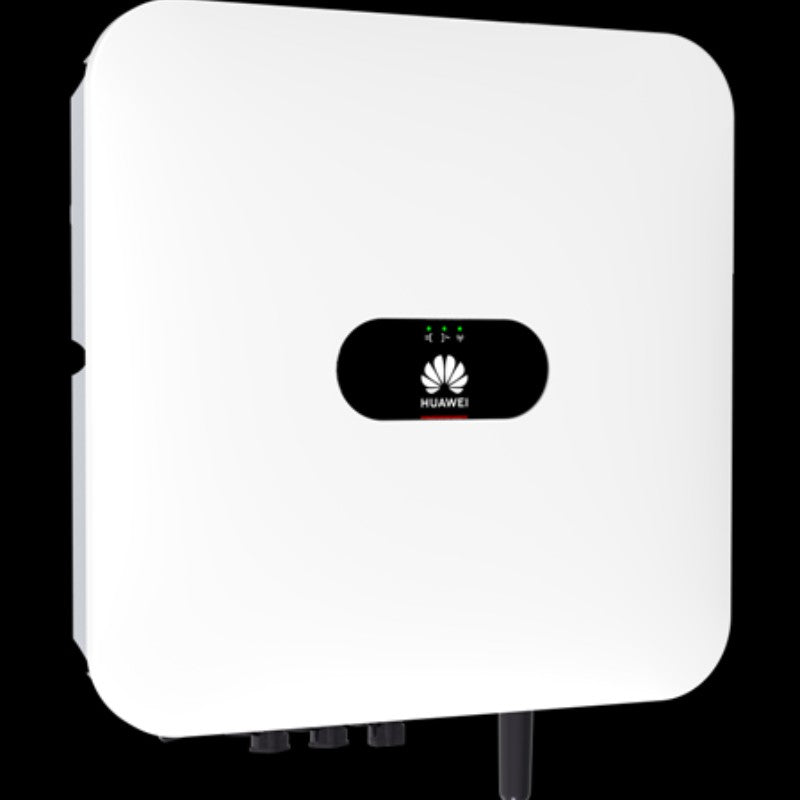

The Smart Energy Controller (SUN2000- 3 / 3.68 / 5 / 6KTL-L1) is Huawei new single-Phase inverter and is direct compatible with their own Huawei Luna battery

For kit purchase with free BMS (L1 inverter + BMS + Battery) please contact a member of the sales team or your account handler. The installer must be a part of the Huawei FusionSolar Community. Promotions cannot be combined. Units must be installed in Republic of Ireland.

AC attributes

Max power

4000W

Max current

25A

Number of phases

1

DC attributes

Features

Panels

  • Number of MPPT
  • 2
  • V range of MPPT
  • 90 - 560V
  • Max power
  • 6000W
  • Max current
  • 18A
  • Max voltage
  • 600V
  • Start up voltage
  • 100V

Batteries

  • Max power
  • 5 kW*
  • Max current
  • 14.2A
  • Battery types
  • Lithium

Technical Specifications

AC attributes Max power
Number of phases 1
DC attributes 2
Panels : V range of MPPT
Number of MPPT 90 - 560V
Start up voltage 100V
Batteries : Max power
Battery types Max efficiency
Lithium 98.4%
IP rating IP65
AC and DC surge protection Type II, arc fault Export limitations
Weight 27kg
Dimensions 365x365x156mm
Communication RS485, WLAN, (Ethernet, 4G optional)
Performance data back-up Smart I-V Diagnosis

Additional Notes

  • 4000W
  • Max current
  • 25A
  • Max power
  • 6000W
  • 18A
  • Max voltage
  • 600V
  • 5 kW*
  • 14.2A
  • Built in protection**
  • Possible using CT or meter
  • Warranty (extensions)
  • 10 years
  • Key features
  • AI Self leaning new arc detection
  • Real-time data at anytime and anywhere

Downloads
