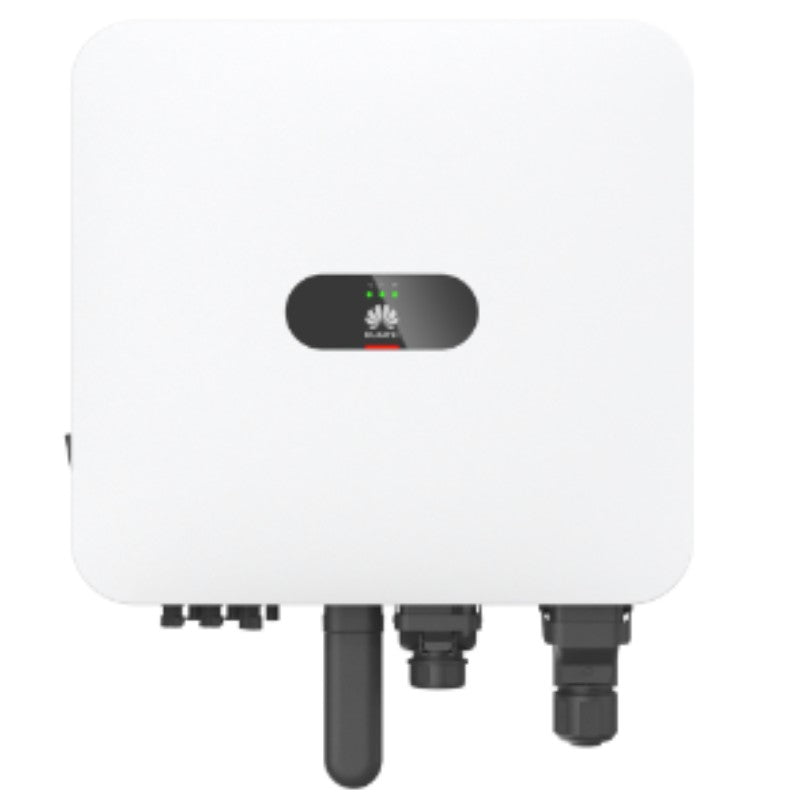

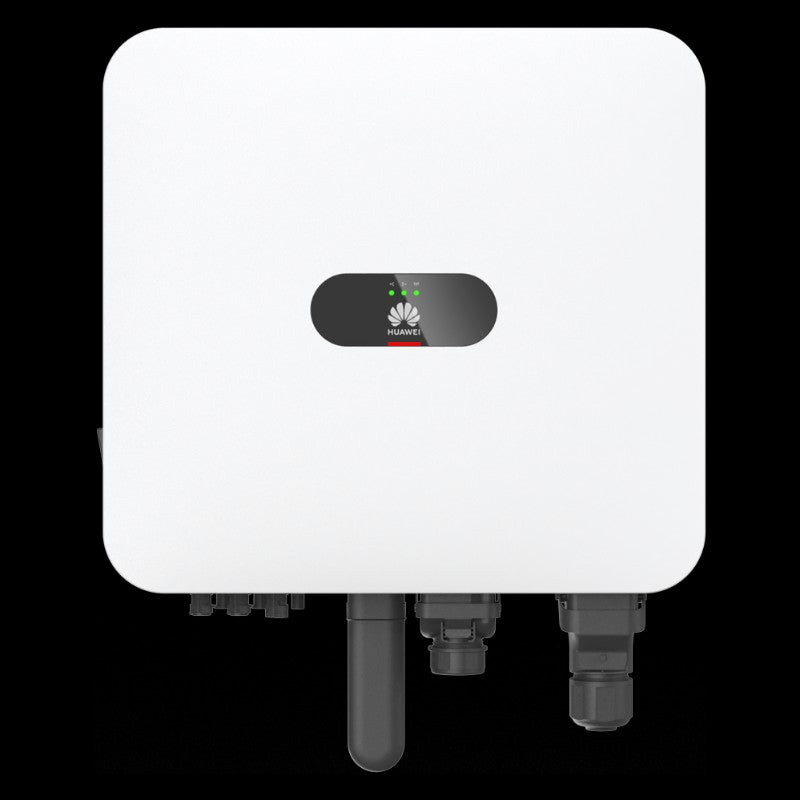

Huawei SUN2000-10K-MAP0 10kW 3Ph Hybrid

Description

The Huawei SUN2000-5/6/8/10/12K-MAP0 is a three-phase grid-tied hybrid string inverter that converts DC power from PV strings into AC power. Supports 100% three-phase asymmetric load.

This power can be fed into the grid, used to supply home appliances, or stored in LUNA ESS batteries.

The MAP0 inverter series serves as the central component for PV-only systems, energy storage, backup power, and intelligent energy management solutions. With 2 independent MPP trackers and a total of 2 PV string inputs, the MAP0 is optimally designed to increase the self-consumption rate by dynamically and independently adjusting the output power of each phase according to the momentary load power.

Specification-

max. 11 kVA AC output

2 MPPTs

2 DC PV inputs

1 DC ESS input for LUNA2000

AFCI

SCTD

PID Recovery

Smart Power Optimiser compatible (450W, 600W)

Downloads

• Datasheet
• Manual
• Certificate
• Quick Guide
• EN50549
• Decleration Of Conformity
