Description
Description
This high energy density PV battery with lithium iron phosphate cell chemistry offers a guaranteed long lifetime of 10 years and a future-oriented design.

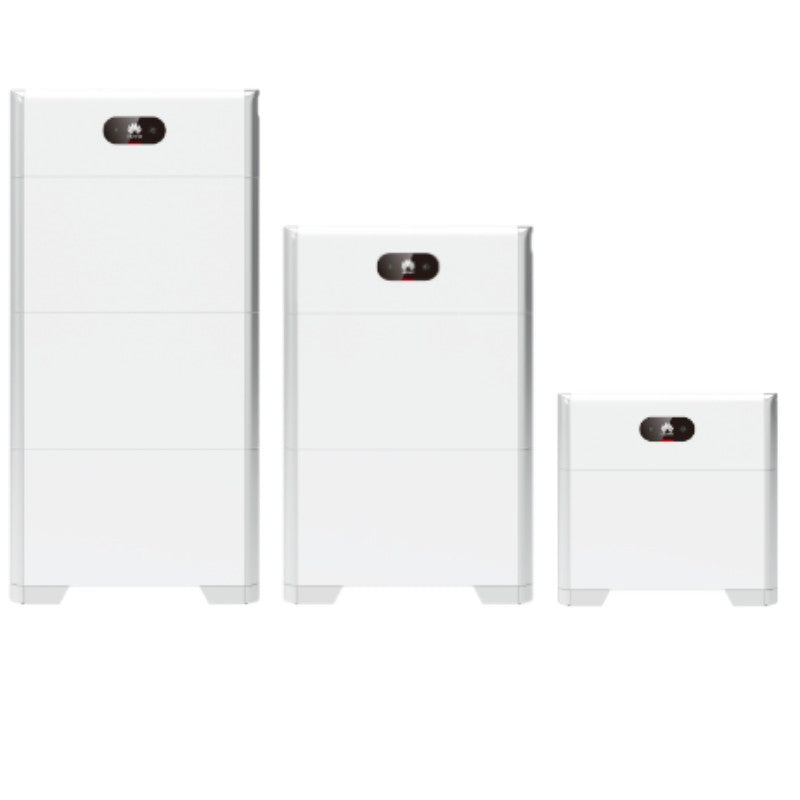

With scalability options per ESS tower from 5 to 21 kWh, the LUNA2000-S1 series meets a variety of energy storage requirements and offers homeowners the flexibility to increase the capacity of their storage system as needed, whether to increase self-consumption or to provide sufficient backup capacity. Module+ optimization allows the LUNA2000-S1 to utilize the integrated energy optimizer, which improves usable energy by more than 40%*.
Independent management at module level enables fast charging and discharging with 3.5 kW for each battery module and a maximum input and output power of 10.5 kW for each energy storage system.
DC attributes
Nominal voltage
450V
Voltage range
350 - 560V
Nominal capacity
5.0kWh
Usable capacity
5.0kWh
Max output power*
3.5kW
Features
Technical Specifications
| Nominal voltage | 450V |
|---|---|
| Voltage range | 350 - 560V |
| Nominal capacity | 5.0kWh |
| Usable capacity | 5.0kWh |
| IP rating | IP66 |
| Working temperature | -20 to 55°C |
| Module Weight | 68kg |
| Module Dimensions | 590x255x360mm |
| System connection | Max 4 systems in parallel |
Additional Notes
- DC attributes
- Max output power*
- 3.5kW
- Battery chemistry
- Lithium Iron Phosphate (LFP)
- Warranty (extensions)
- 10 years
