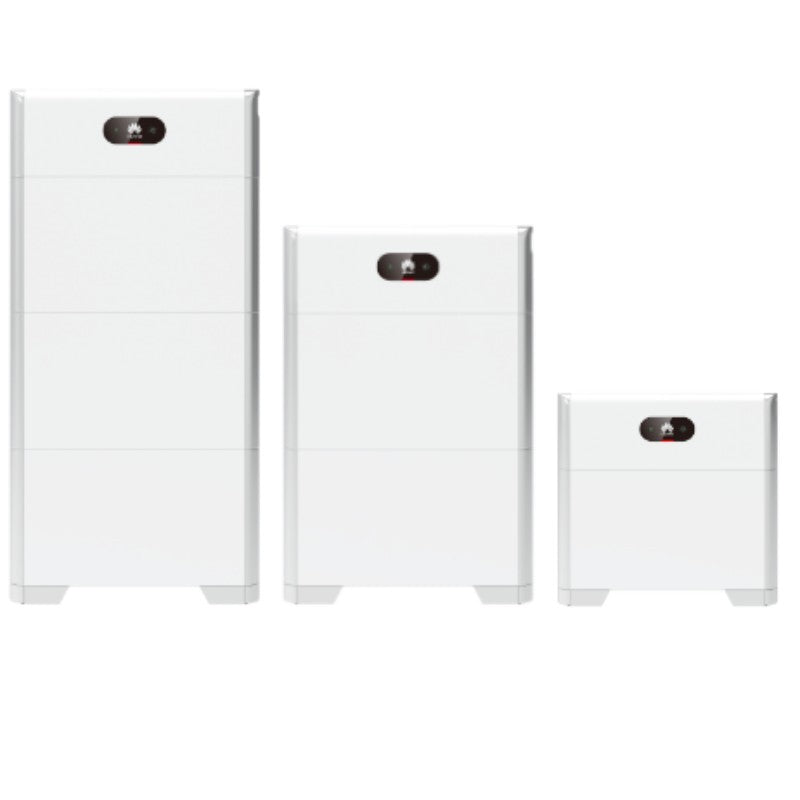

Huawei LUNA2000-5-E0 Battery
Sale

Huawei LUNA2000-5-E0 Battery

  • €2,475.86
Shipping calculated at checkout.
01074643 LUNA2000-5-E0
In Stock
Estimated Delivery : 1 Day

Out of stock Contact us to for back order

Expected

TO ORDER PLEASE CONTACT US
Contact Us to Order

Description

Description

This is the battery 5KWh module only and would need to add the power module to it.

A LUNA power system consists of a Power Module (BMS) and 1 to 3 Battery modules, make sure you have both for a complete system.

DC attributes

Nominal voltage

450V

Voltage range

350 - 560V

Nominal capacity

5.0kWh

Usable capacity

5.0kWh

Max output power*

2.5kW (3.5 kW for 10s)

Features

Technical Specifications

Nominal voltage 450V
Voltage range 350 - 560V
Nominal capacity 5.0kWh
Usable capacity 5.0kWh
IP rating IP66
Working temperature -10 to 55°C
Weight 50kg
Dimensions 670x150x360mm
System connection Max 2 stacks in parallel

Additional Notes

  • DC attributes
  • Max output power*
  • 2.5kW (3.5 kW for 10s)
  • Battery chemistry
  • Lithium Iron Phosphate (LFP)
  • Warranty (extensions)
  • 10 years

Downloads
