530W N-type TOPCon MBB Traceable Double Glass Bifacial 60 Cell Black Frame MC4
Sale

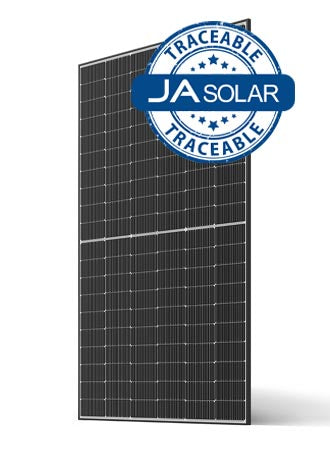

JA SOLAR 530W N-type TOPCon MBB Traceable Double Glass Bifacial 60 Cell Black Frame MC4 Solar Panel

  • €96.50
Shipping calculated at checkout.
JAM60D-42-530-LB-TS-BF
In Stock
1 available
Estimated Delivery : 2-3 Days

Out of stock Contact us to for back order

Expected

TO ORDER PLEASE CONTACT US

Minimum order: 1 units

Contact Us to Order

Description

Solar panel product data

JA SOLAR 530W N-type TOPCon MBB Traceable Double Glass Bifacial 60 Cell Black Frame MC4 Solar Panel

The JA SOLAR 530W N-type TOPCon MBB Traceable Double Glass Bifacial 60 Cell Black Frame MC4 Solar Panel is listed with manufacturer-led product data, technical specifications and resource links so customers and installers can check the important details before purchase.

530WPrimary rating
JA SOLARManufacturer
Solar PV moduleCategory
Published specsSpecification source
6 docsResources
JAM60D-42-530-LB-TS-BFSolarboss SKU

Why this product

  • Rating: 530W Efficiency: 22.7% Width: 1,134mm Height: 2,063mm
  • Designed for PV installations where high module output and clear project documentation matter.
  • Published product data helps installers confirm dimensions, electrical ratings and warranty details before design.
  • Suitable for qualified solar PV installation in line with the final system design and manufacturer guidance.

Documents and resources

Product document 1Open the product resource in a new tab.DeclarationOpen the product resource in a new tab.Warranty documentOpen the product resource in a new tab.Product document 4Open the product resource in a new tab.CertificateOpen the product resource in a new tab.Installation manualOpen the product resource in a new tab.

Technical specifications

Manufacturer JA SOLAR
Product name 530W N-type TOPCon MBB Traceable Double Glass Bifacial 60 Cell Black Frame MC4
Solarboss SKU JAM60D-42-530-LB-TS-BF
Category Solar PV module
Part number JAM60D-42-530-LB-TS-BF
Weight 28.8 kg
Rated Power 530 W
MCS Reference BABT8515-381-530W
Length 2,063 mm
Width 1,134 mm
Depth 30 mm
VMPP 36.81 V
IMPP 14.4 A
Isc 15.26 A
Voc 43.93 V
Temp. Coefficient (Mpp) -0.3 %
Clamp position on panel Long side only
Connector Description EVO2A
Connector Type Round Post
Efficiency 22.7 %

PV modules must be installed by qualified personnel in line with the manufacturer installation guidance, local wiring rules and the final system design.
